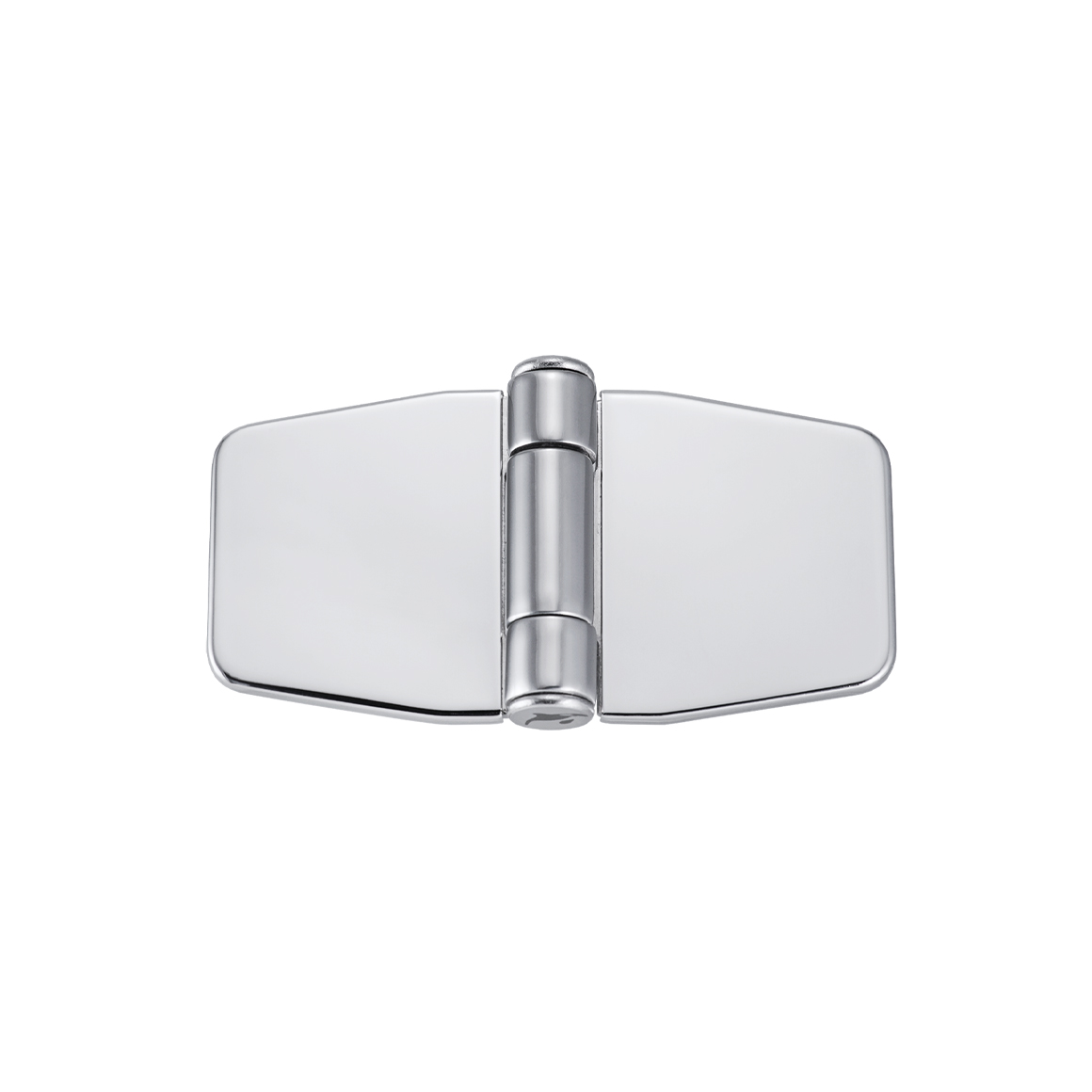

COVERED FRICTION HINGE - BARREL UP

Stainless Steel 316
- Provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.

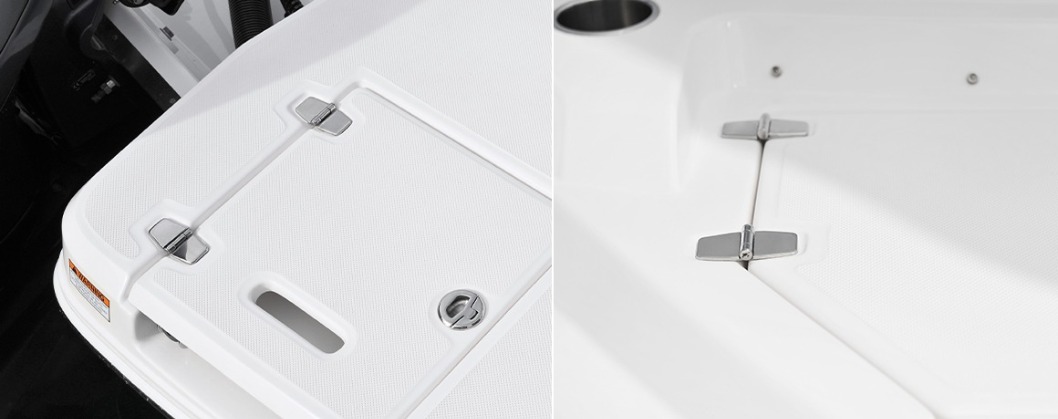

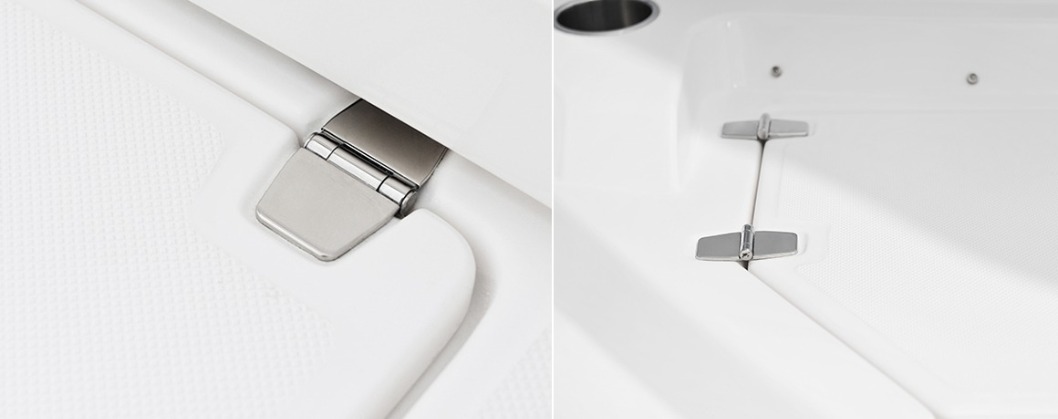

- Ideal for light-weight doors, such as overhead door, baitwell lid,
   glove box, interior door, anchor locker, electronic panel, etc.
- Easy installation with 3M VHB double-side tape.
- The cover can be removed by using a heat gun or hair dryer.
- Passed 10,000 times cycle test and lost less than 10% on torque;
  20,000 times lost 20% or less only.
- Passed 500-hour salt-spray test.
Qty
Qty
Qty
Qty
  •

    Bulk No.

    TYPE

    Size

    Screw Size

    Torque Range

    0519423-A Barrel Up 39.6mm X 77.4mm 1-9/16" X 3-1/16" #8 1.6±0.4N-m
    0519423 Barrel Up 39.6mm X 77.4mm 1-9/16" X 3-1/16" M4 1.6±0.4N-m
    0519423-AH Barrel Up 39.6mm X 77.4mm 1-9/16" X 3-1/16" #8 1.73±0.23N-m
    0519423-H Barrel Up 39.6mm X 77.4mm 1-9/16" X 3-1/16" M4 1.73±0.23N-m

  •

    Bulk No.

    Download

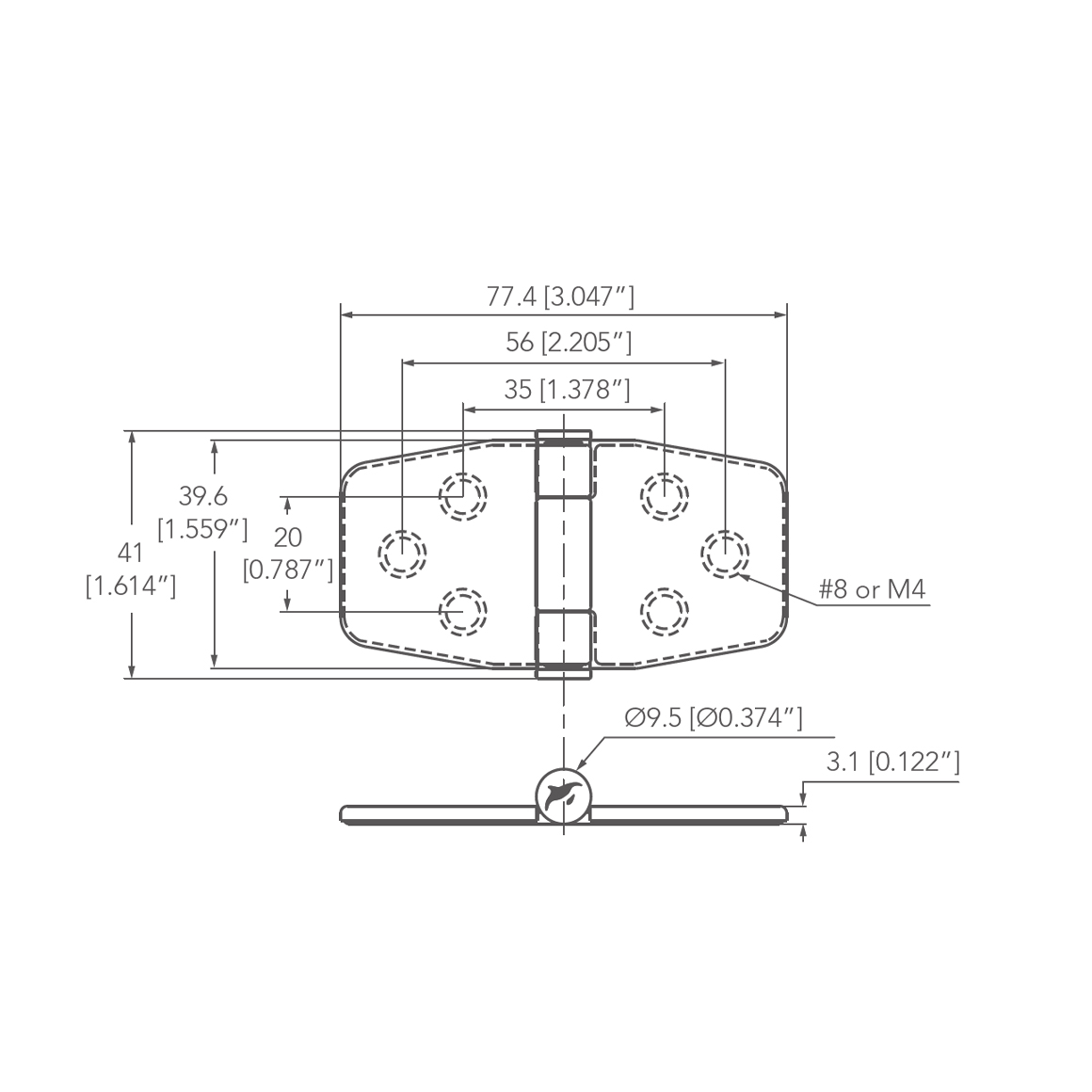

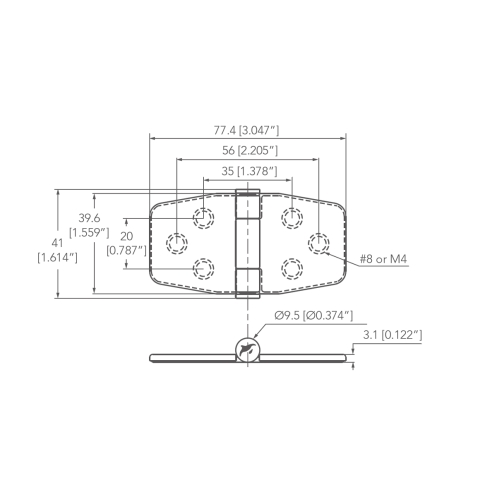

    0519423-A Drawing
    0519423 Drawing
    0519423-AH Drawing
    0519423-H Drawing
