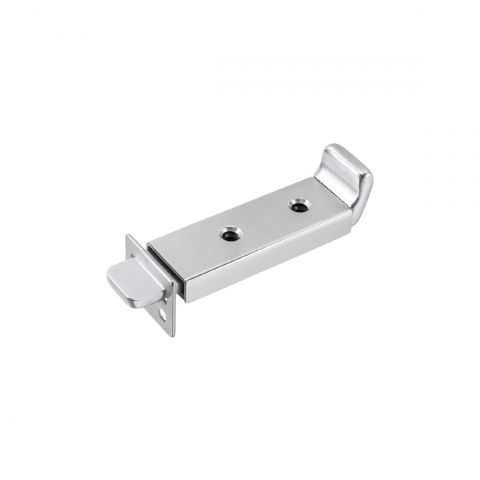

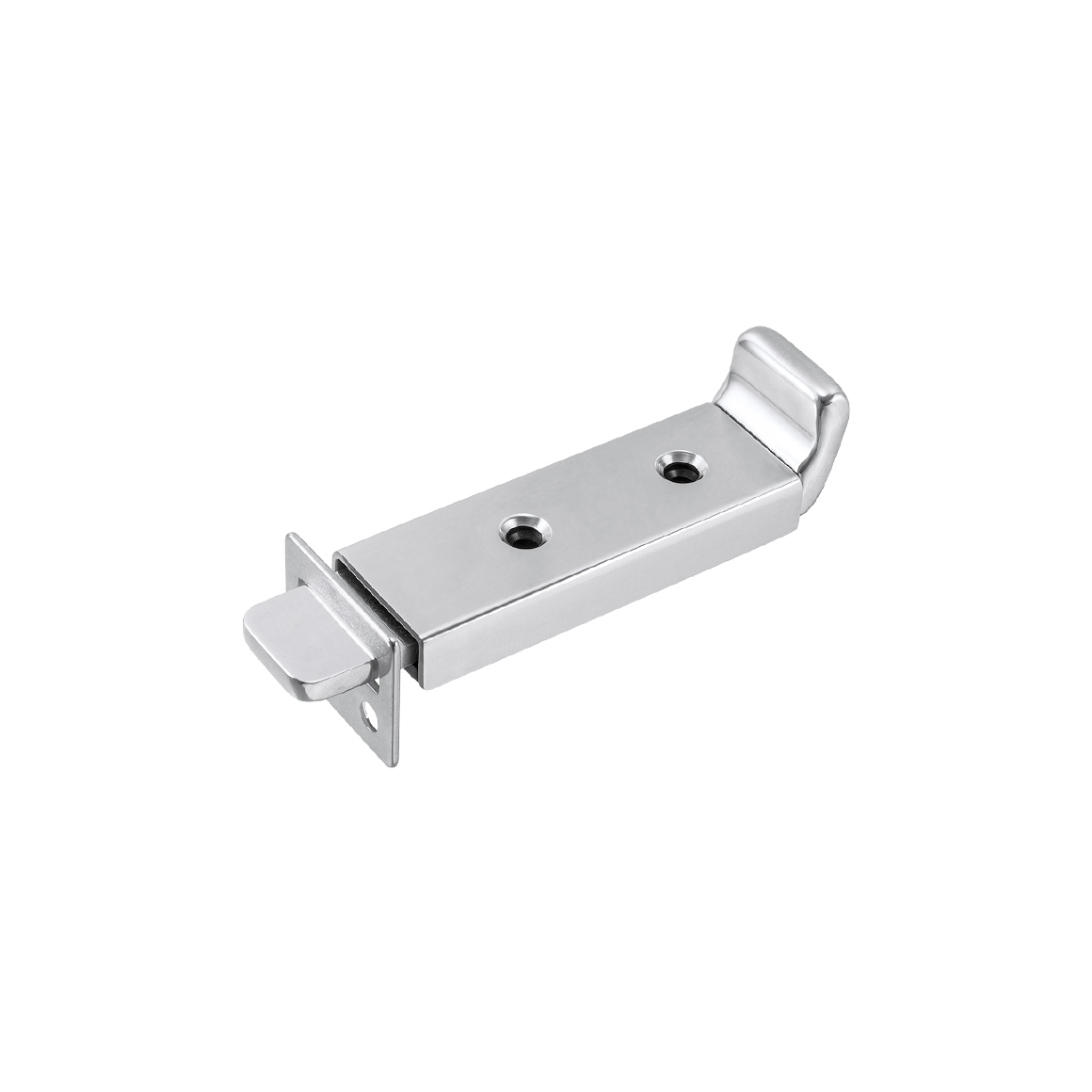

POSITION SLIDE LATCH W/ FLUSH STRIKE
Stainless Steel 316 & Plastic
- Slide latch designed with open and closed detent.
- Smooth low effort slide design.
- Comfortable slide grip.
- Available with three strike options.
- Screw size for latch body M5 or #10.
- Screw size for strike M4 or #8.
- Slide latch designed with open and closed detent.
- Smooth low effort slide design.
- Comfortable slide grip.
- Available with three strike options.
- Screw size for latch body M5 or #10.
- Screw size for strike M4 or #8.
Qty
-
Bulk No.
Strike

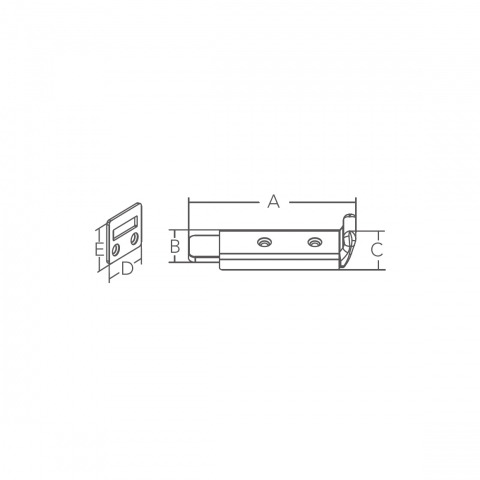

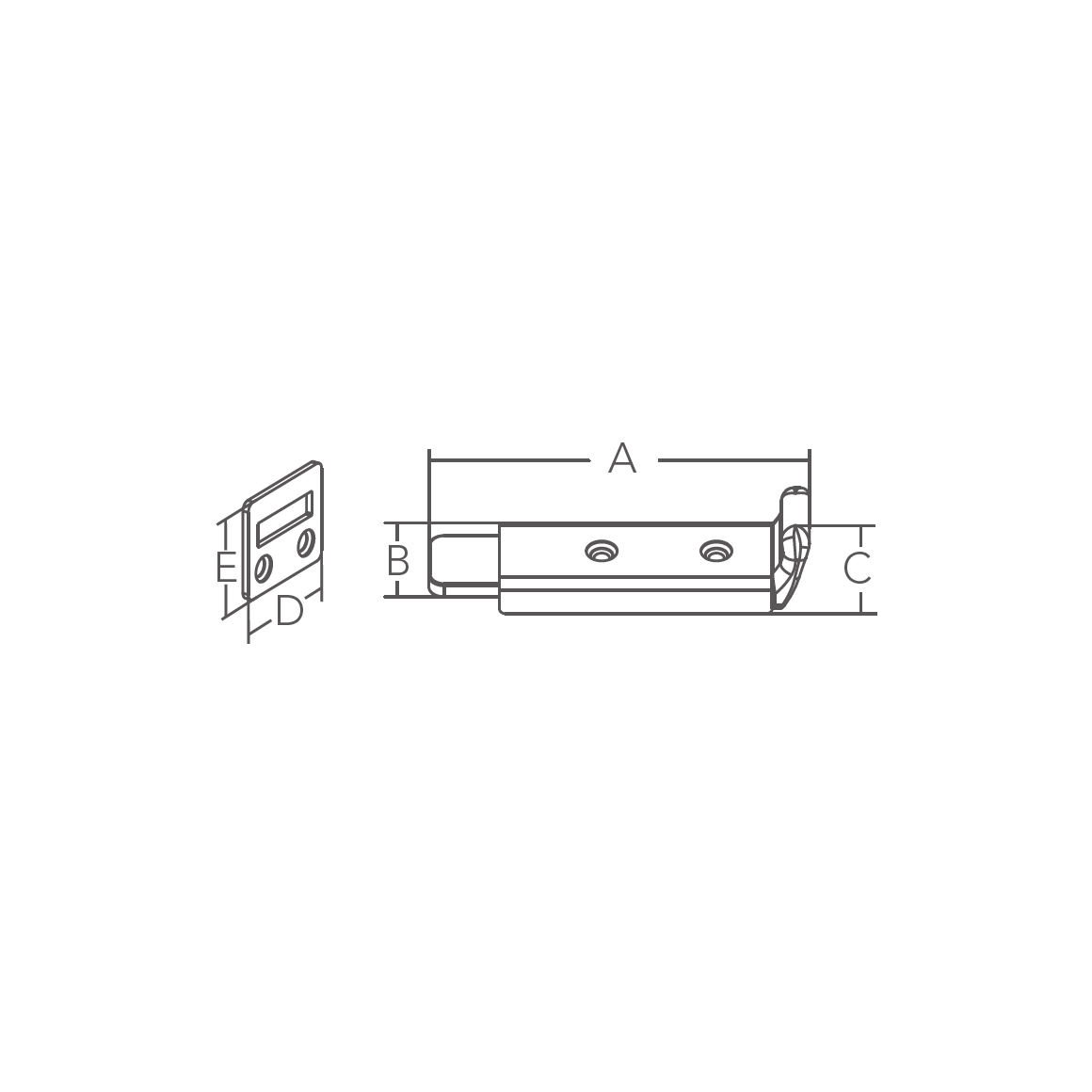

A mm
B mm
C mm
D mm
E mm

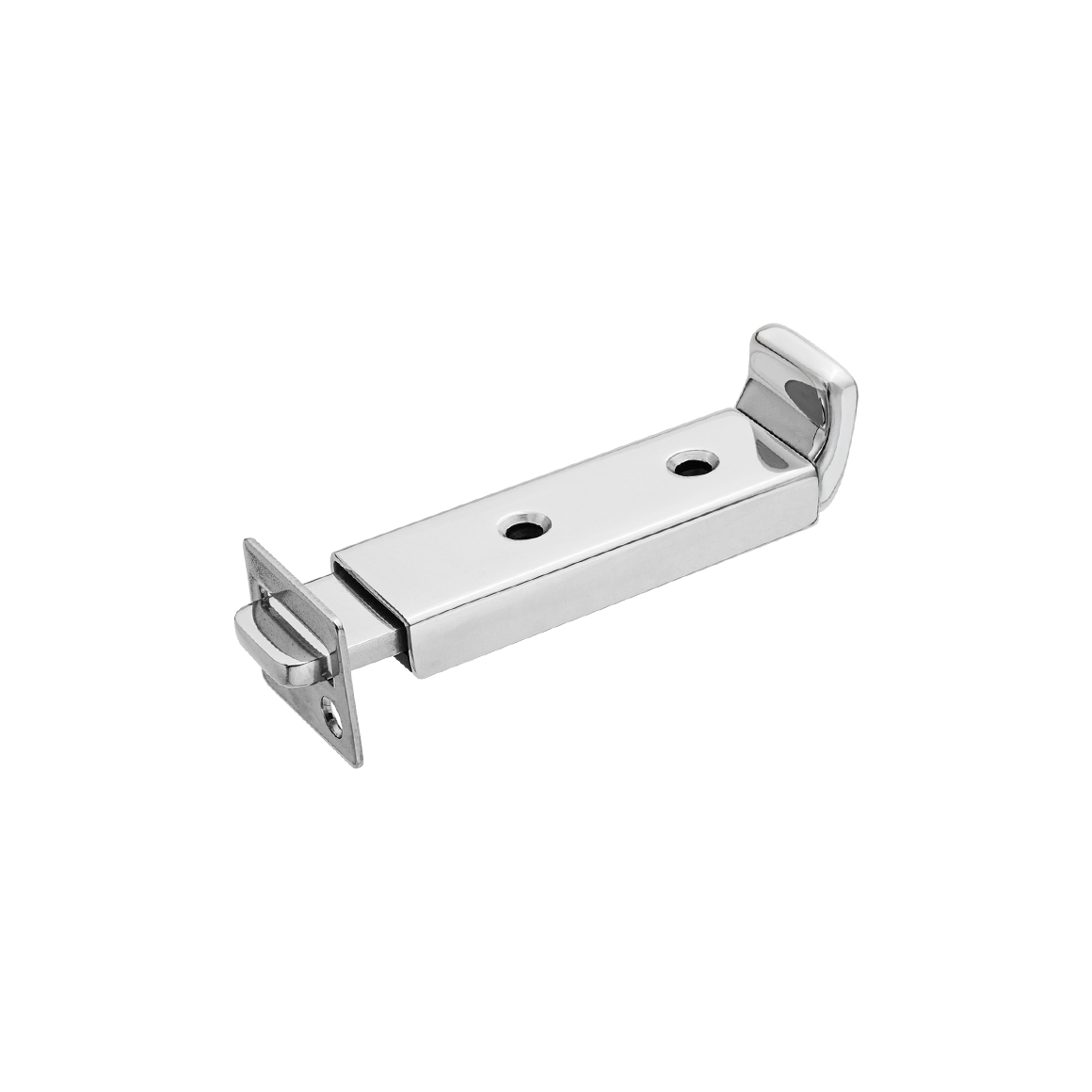

0507372 Flush 123(4-13/16") 32(1-1/4") 30(1-3/16") 38(1-1/2") 32(1-1/4")
-
Bulk No.
Download
0507372 Drawing
