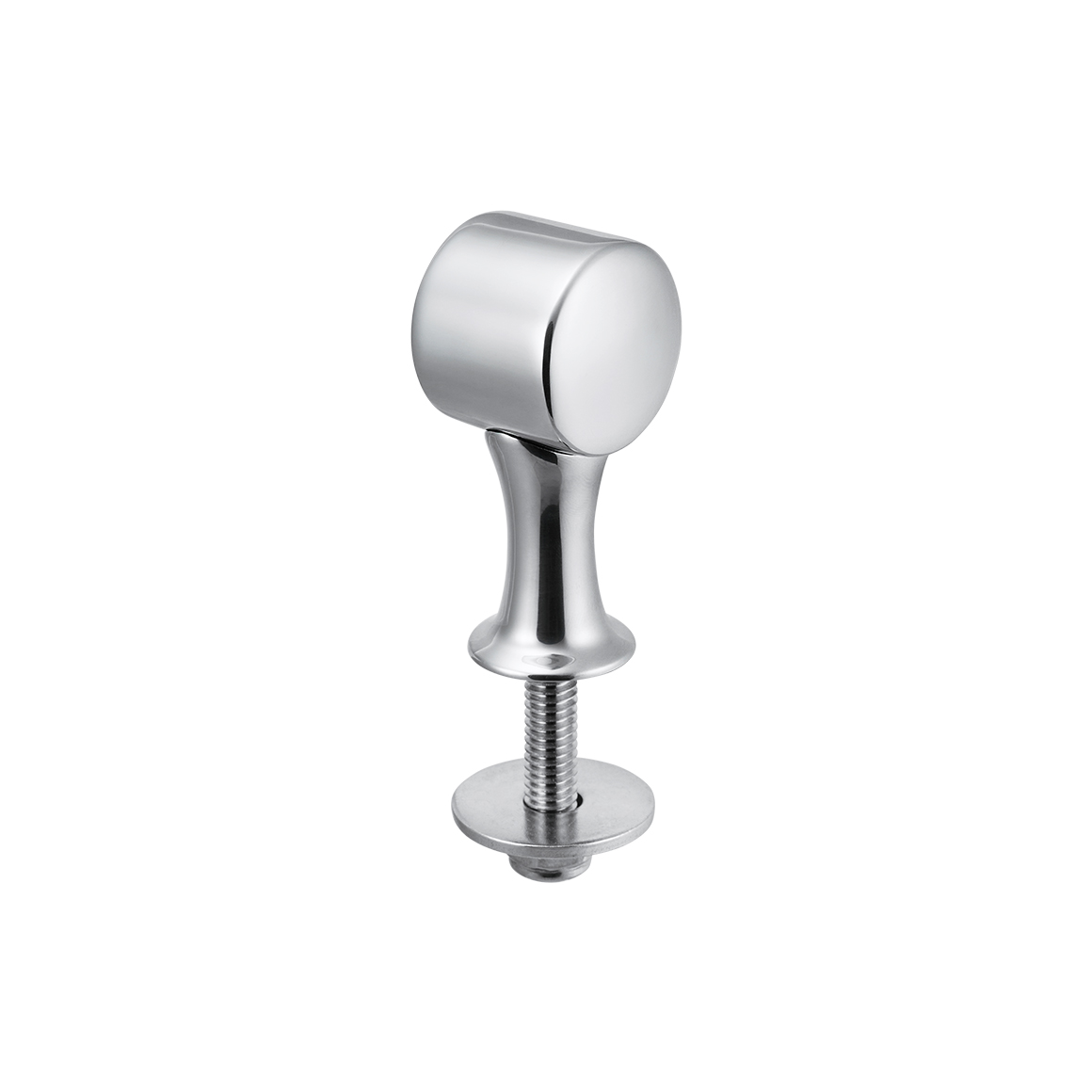

HANDRAIL FITTING 1" - END
Stainless Steel 316
- Special mechanism secures railing in place as lock nut is tightened and eliminates
the need for set screws.
- Concealed fastener design for a more elegant appearance.
- Fits 1" outer diameter handrail.
- Washer and lock nut are included.
- Stainless steel 304 washer and locking nut are included.
- Special mechanism secures railing in place as lock nut is tightened and eliminates
the need for set screws.
- Concealed fastener design for a more elegant appearance.
- Fits 1" outer diameter handrail.
- Washer and lock nut are included.
- Stainless steel 304 washer and locking nut are included.
Qty
MOQ
Qty
-
Bulk No.

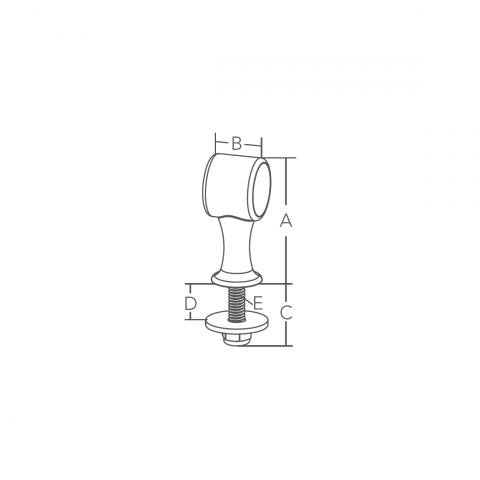

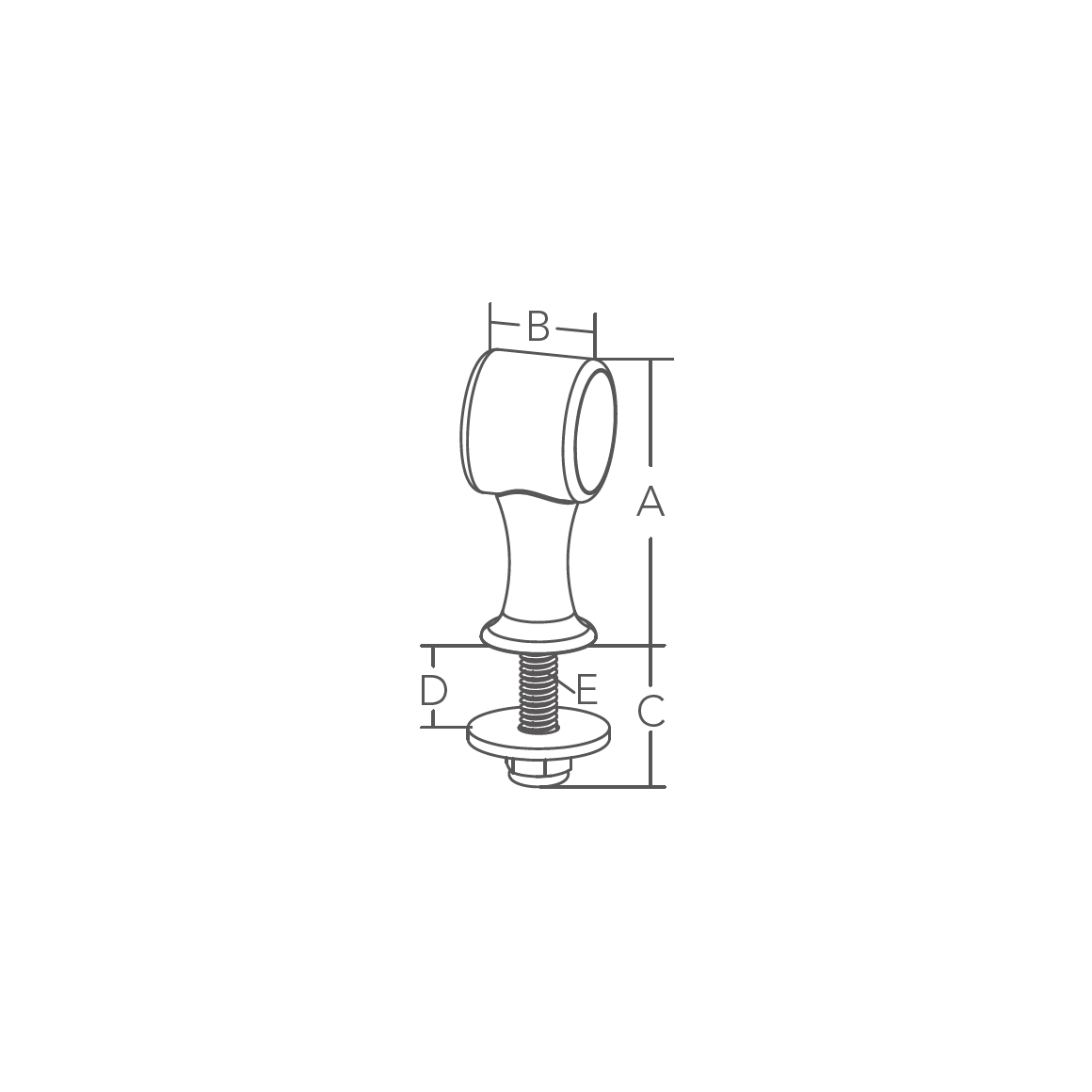

A mm
B mm
C mm
D-Max.
E
0606196 62(2-7/16") 27(1-1/16") 32(1-1/4") 20(13/16") M8 x 1.25P 0606196-A 62(2-7/16") 27(1-1/16") 32(1-1/4") 20(13/16") 5/16"-18 x L: 31mm(1-1/4")
