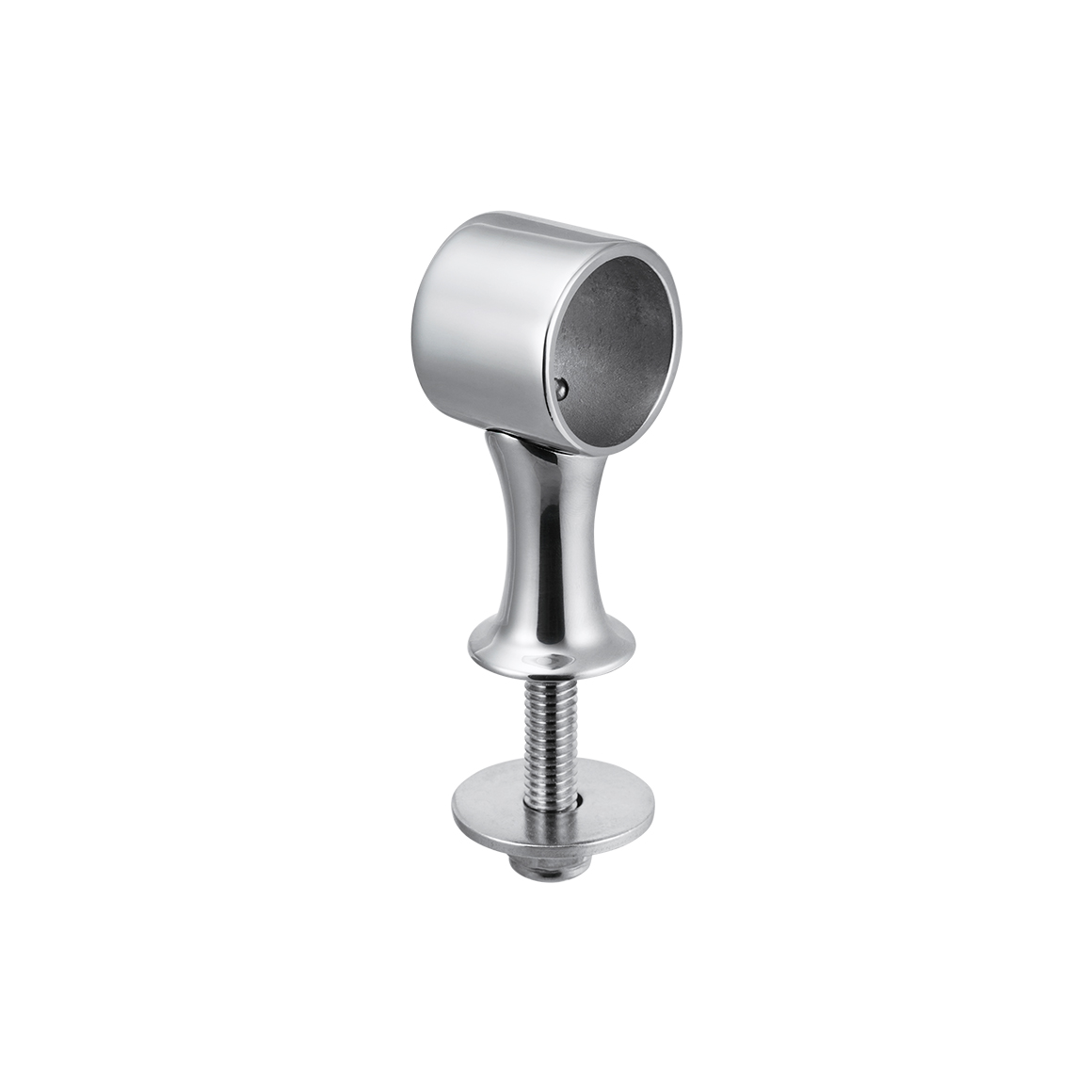

HANDRAIL FITTING 1" - CENTER

Stainless Steel 316
- Special mechanism secures railing in place as lock nut is tightened and eliminates
   the need for set screws.
- Concealed fastener design for a more elegant appearance.
- Fits 1" outer diameter handrail.
- Washer and lock nut are included.
- Stainless steel 304 washer and locking nut are included.
Qty
MOQ
Qty
  •

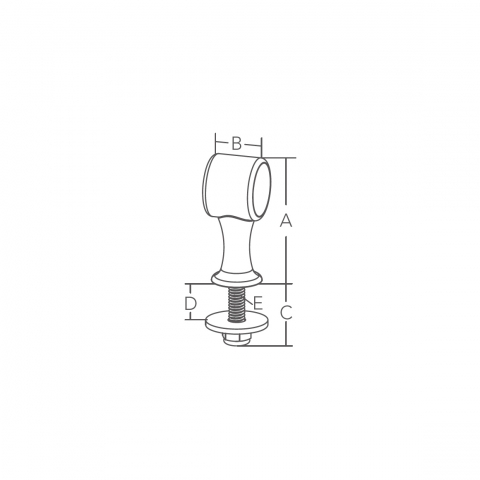

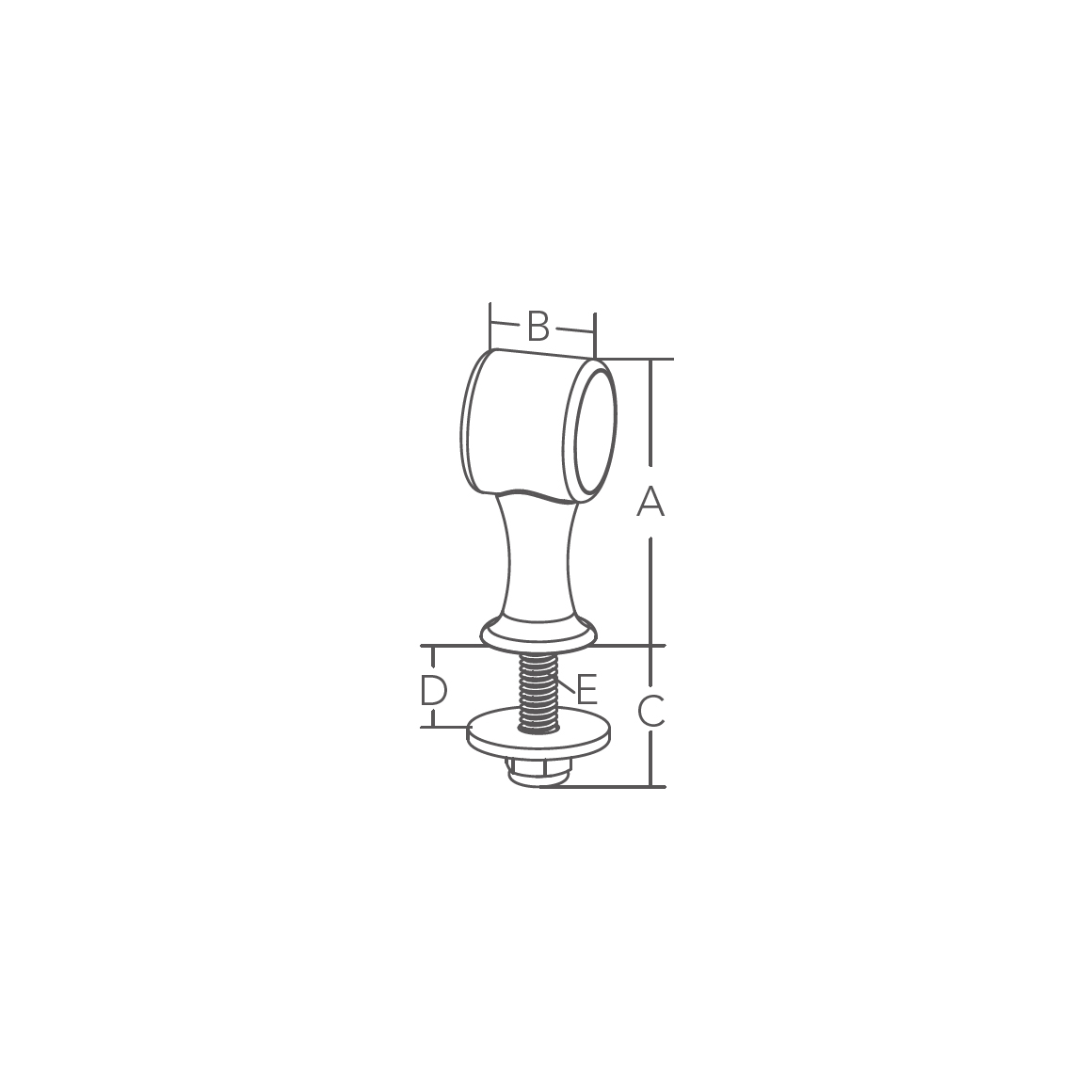

    Bulk No.

    A mm

    B mm

    C mm

    D-Max.

    E

    0606198 62(2-7/16") 25.4(1") 32(1-1/4") 20(13/16") M8 x 1.25P
    0606198-A 62(2-7/16") 25.4(1") 32(1-1/4") 20(13/16") 5/16"-18 x L: 31mm(1-1/4")

  •

    Bulk No.

    Download

    0606198 Drawing
    0606198-A Drawing
