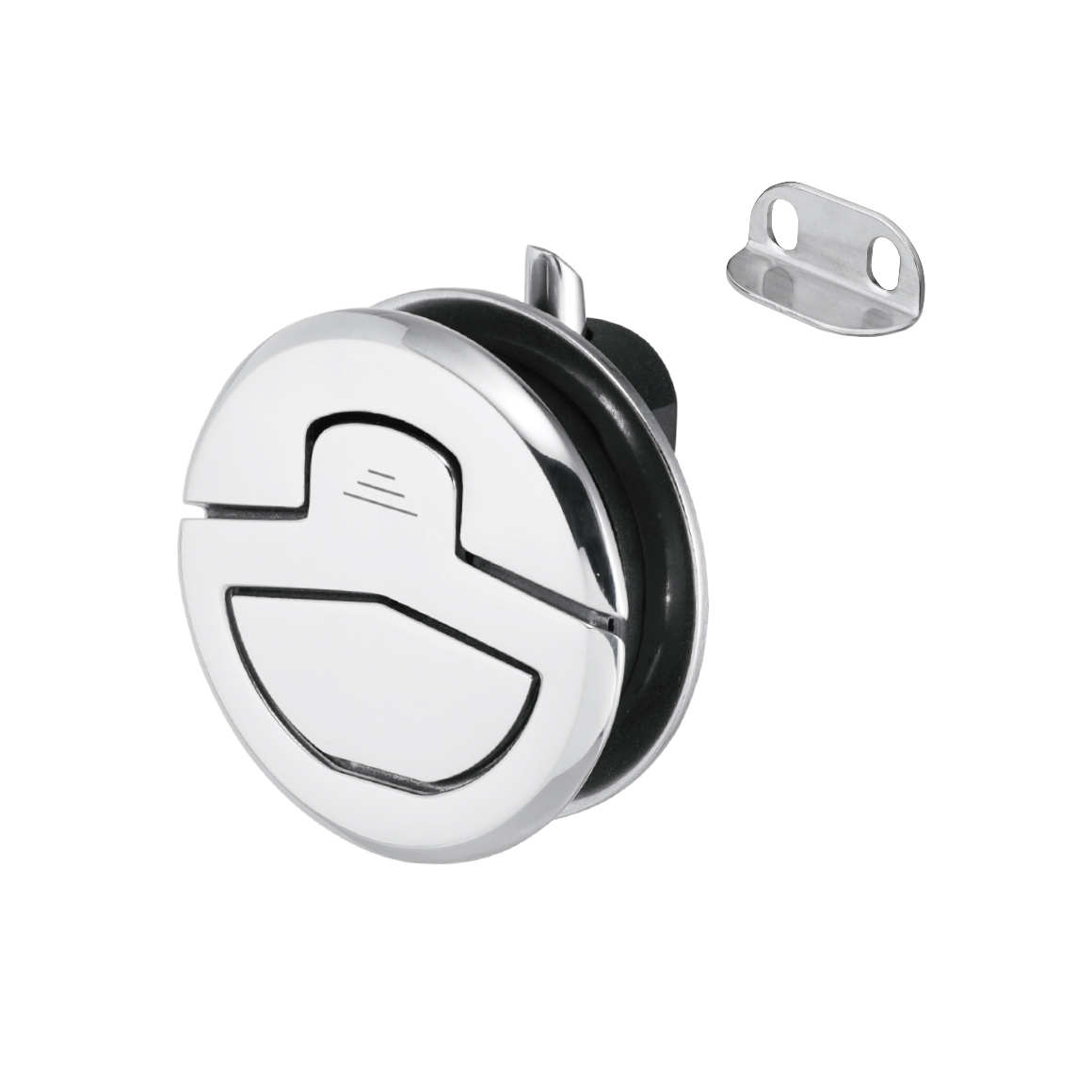

GRAND SERIES - WATERPROOF SLAM LATCH
Stainless Steel 316 & Nylon Housing
- Designed for waterproof compartment.
- Ideal for livewell lid on fishing boats.
- Larger handle opening for comfortable grip.
- Flush design for deluxe appearance.
- Slide bolt is adjustable up to 6mm (1/4") to achieve easier engagement.
- 3mm spacer and stainless steel 304 #8 installation screws are included.
- Strike screw size M4 or #8 (not included).
![](https://www.marinetown.com/upload/catalog_product_b/ALL_catalog_product_21H11_dHP6GrUWTE.png)
- Designed for waterproof compartment.
- Ideal for livewell lid on fishing boats.
- Larger handle opening for comfortable grip.
- Flush design for deluxe appearance.
- Slide bolt is adjustable up to 6mm (1/4") to achieve easier engagement.
- 3mm spacer and stainless steel 304 #8 installation screws are included.
- Strike screw size M4 or #8 (not included).
![](https://www.marinetown.com/upload/catalog_product_b/ALL_catalog_product_21H11_dHP6GrUWTE.png)
![](https://www.marinetown.com/upload/catalog_product_b/ALL_catalog_product_21H20_Iaji8W280Y.png)

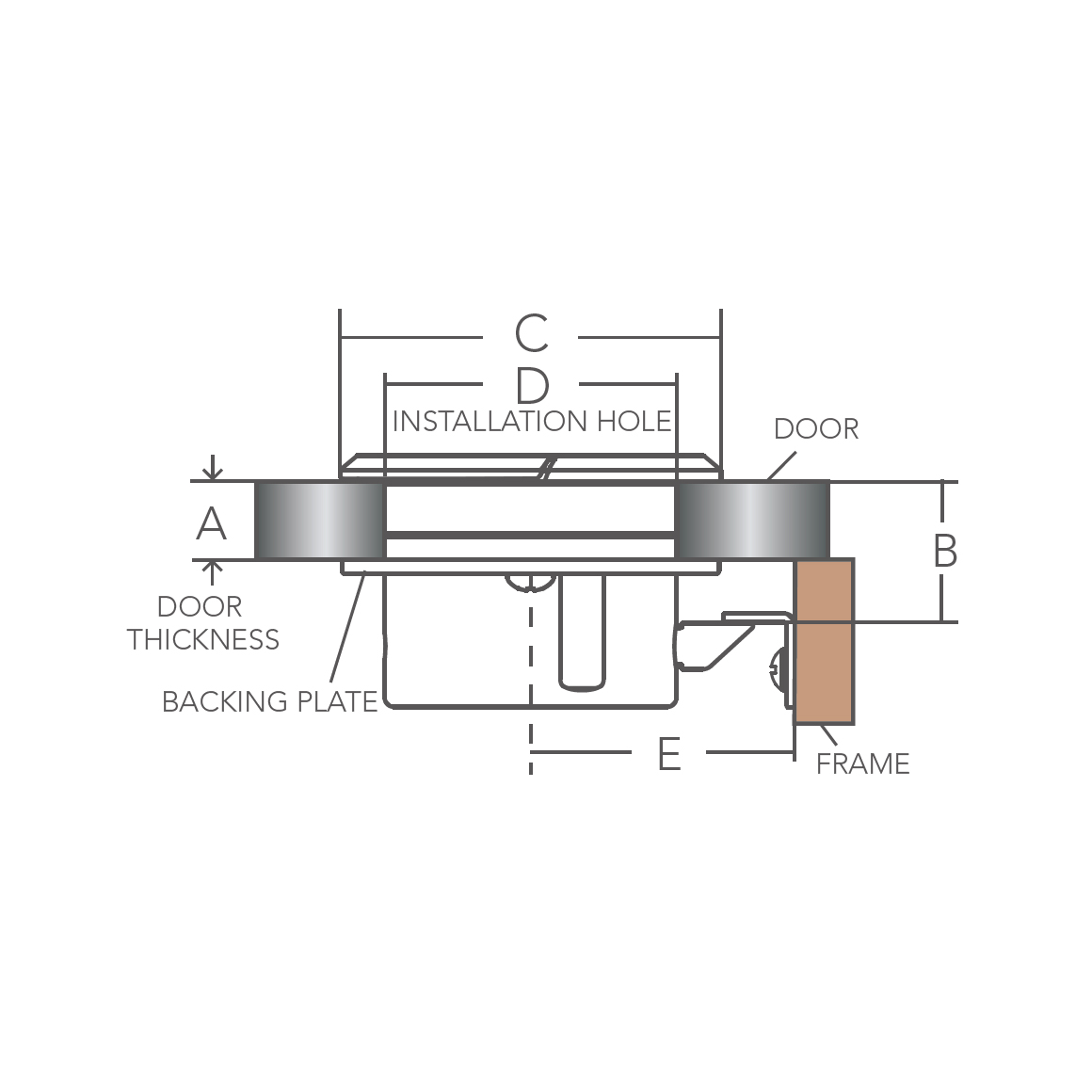

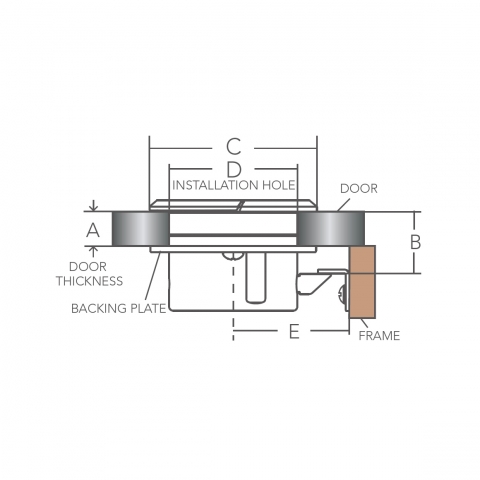

Qty
-
Bulk No.
A mm
B mm
C mm
D mm
E mm
0607691 11~21(7/16"~13/16") 24.5(15/16") 66(2-5/8") 51(2") 46~52.5(1-13/16"~2-1/16") SLIDE ADJUSTMENT INSTRUCTION
-
Bulk No.
Download
0607691 Drawing
