GRAND SERIES - COMPRESSION LATCH 1-1/2"
Stainless Steel 316
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates spring loaded handle to ensure quiet operation,
even underway.
- Detent handle ensures positioning after a 90° turn.
- When handle is pressed down, pawl is lifted to compress hatch.

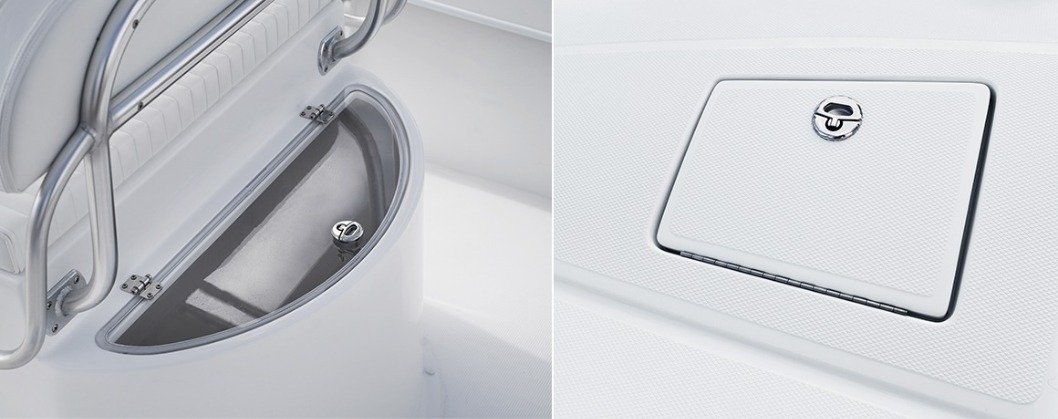

- Ideal for glove box, hatch, livewell lid and small storage areas.
- Smaller profile for a unified appearance with use of larger Grand Series latches.
- Heavy duty 3/8" pawl shaft.
- #8 installation screws and watertight gasket are included.
- Stainless steel 304 accessories are included.
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates spring loaded handle to ensure quiet operation,
even underway.
- Detent handle ensures positioning after a 90° turn.
- When handle is pressed down, pawl is lifted to compress hatch.
- Ideal for glove box, hatch, livewell lid and small storage areas.
- Smaller profile for a unified appearance with use of larger Grand Series latches.
- Heavy duty 3/8" pawl shaft.
- #8 installation screws and watertight gasket are included.
- Stainless steel 304 accessories are included.
Qty
Qty
Qty
Qty
-

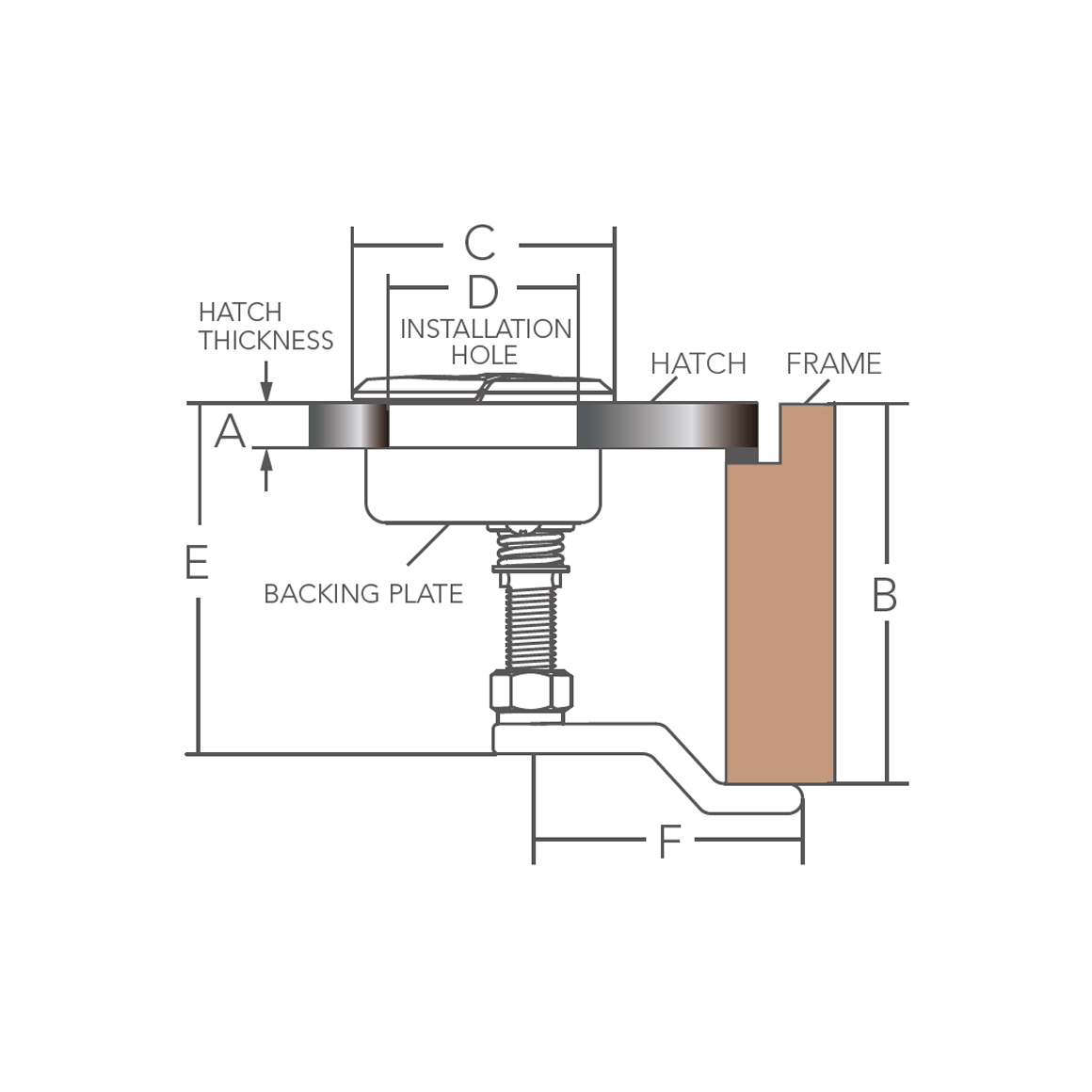

Bulk No.
Model
Pawl
A mm
B mm
C mm
D mm
E mm
F mm

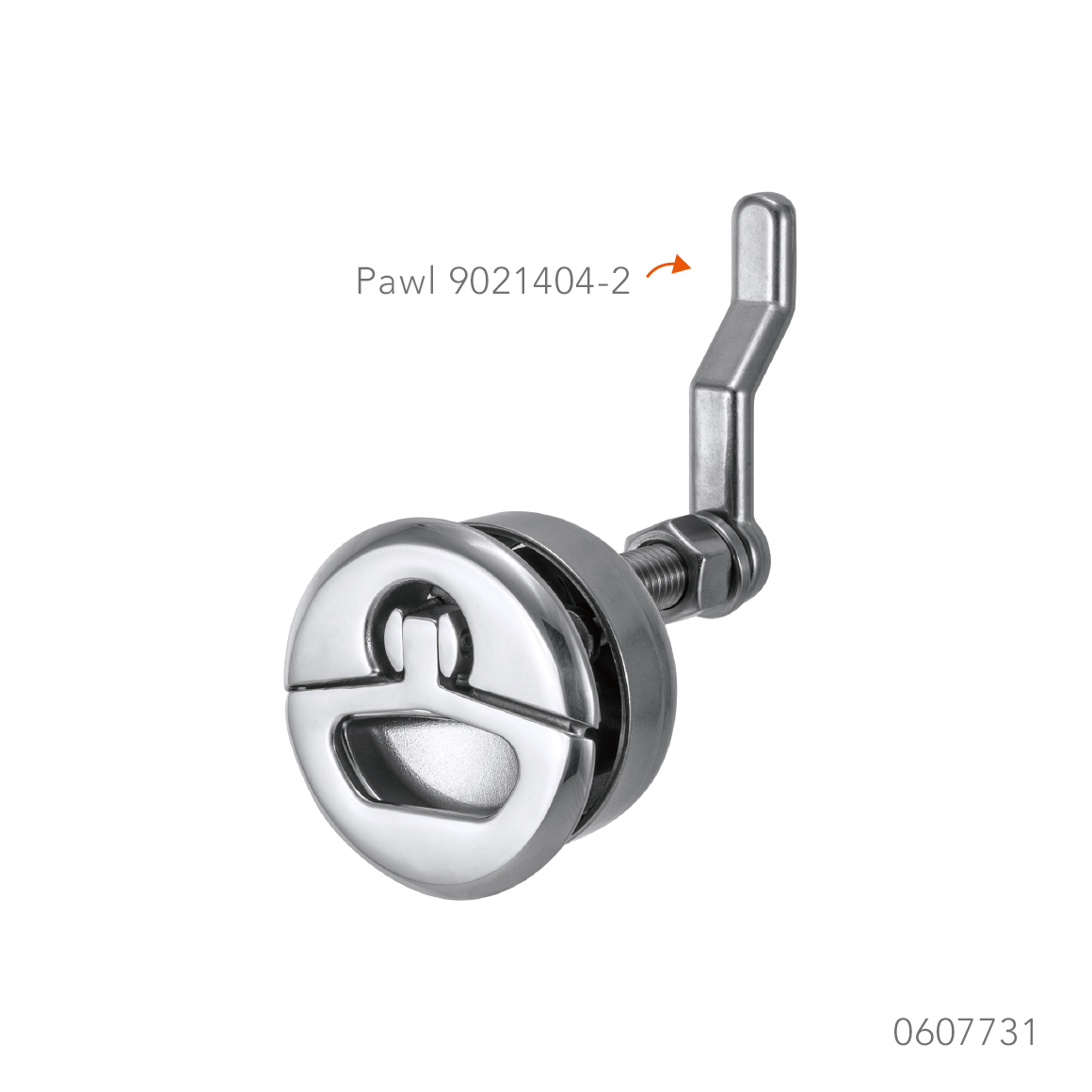

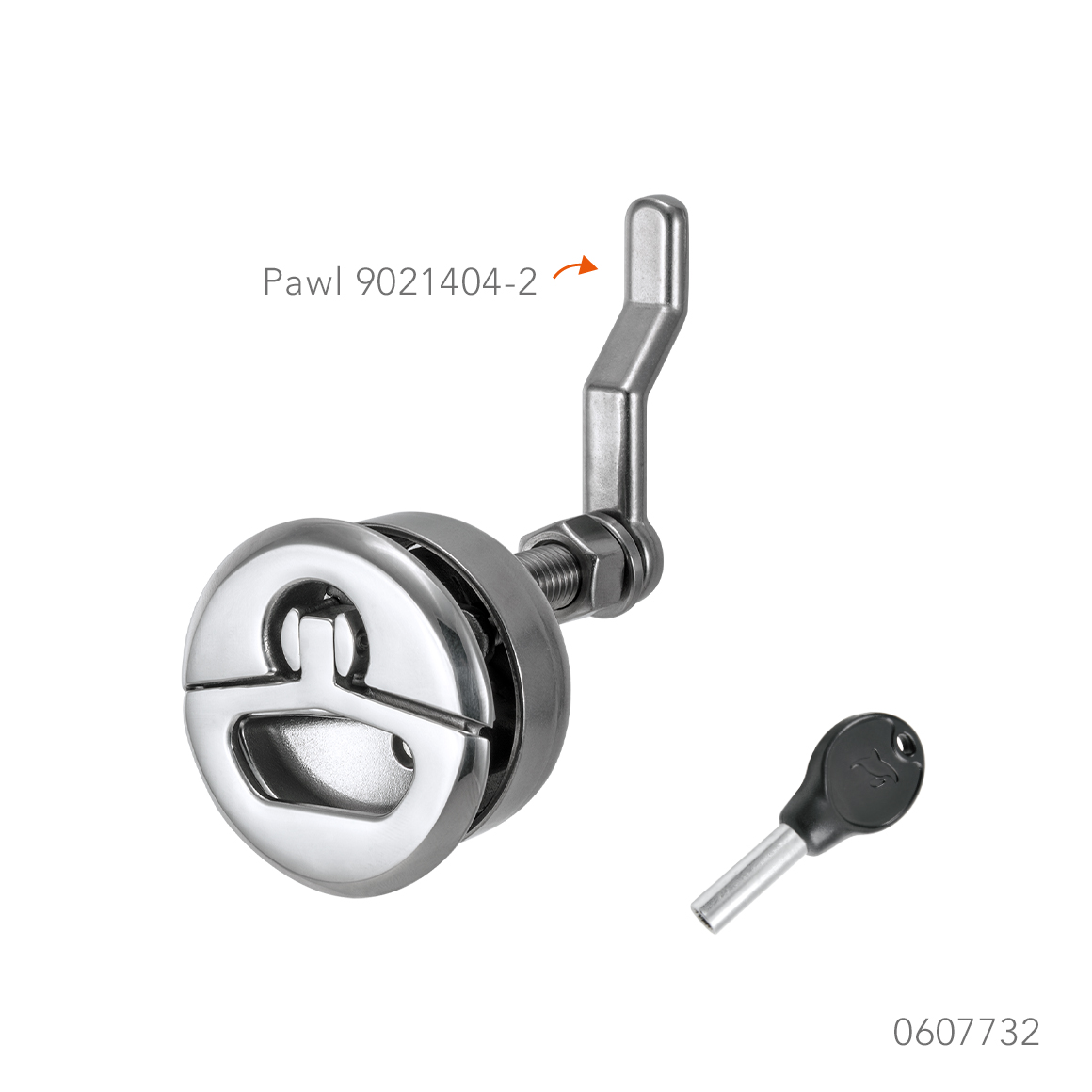

0607731 W/O Lock 9021404-2 5~14(3/16"~9/16") 25~76(1"~3") 53(2-1/16") 38(1-1/2") 70(2-3/4") 55(2-3/16") 0607731-3 W/O Lock None 5~14(3/16"~9/16") - 53(2-1/16") 38(1-1/2") 70(2-3/4") - 0607732 W/ Lock 9021404-2 10~14(3/8"~9/16") 25~76(1"~3") 53(2-1/16") 38(1-1/2") 70(2-3/4") 55(2-3/16") 0607732-3 W/ Lock None 10~14(3/8"~9/16") - 53(2-1/16") 38(1-1/2") 70(2-3/4") -
