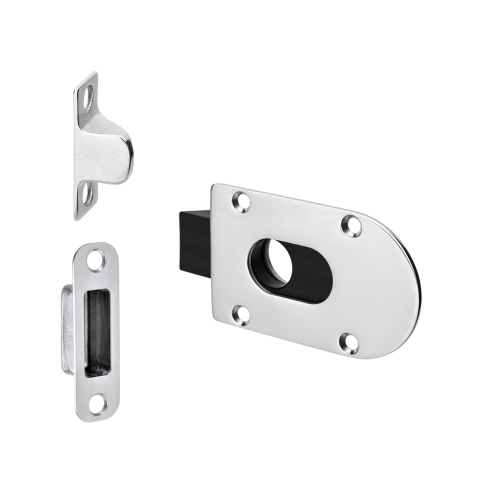

DUAL STRIKE SPRING SLIDE LATCH
Stainless Steel 316 & Nylon Slide

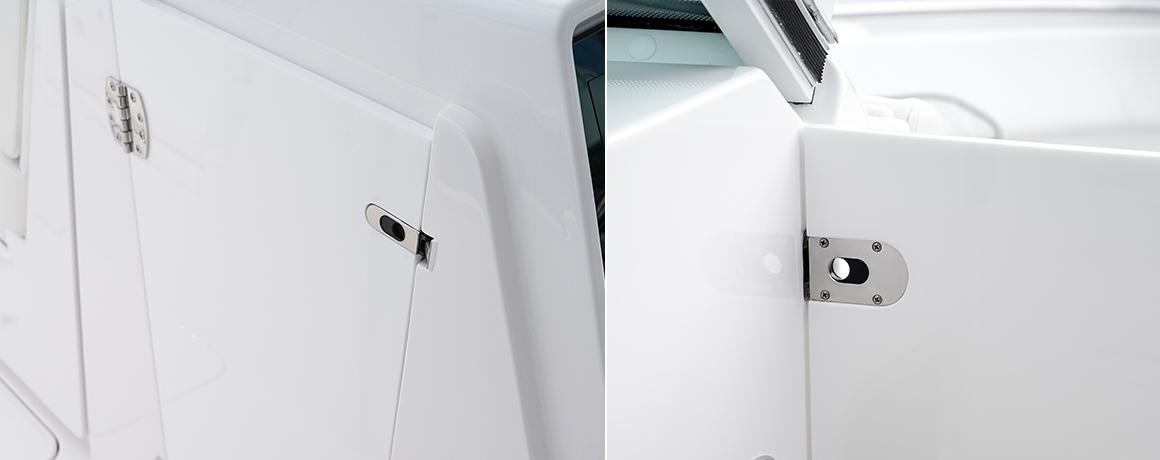

- Ideal for use on pass-thru doors, transom doors and wind dams.
- Dual strike configuration enables secure latch engagement in both open
and closed positions.
- Fits standard plastic doors with a thickness of 12-13mm (1/2").
- Adjustable slide is reversible to accommodate out-swing or in-swing doors.
- Screw size M4 or #8.
- Ideal for use on pass-thru doors, transom doors and wind dams.
- Dual strike configuration enables secure latch engagement in both open
and closed positions.
- Fits standard plastic doors with a thickness of 12-13mm (1/2").
- Adjustable slide is reversible to accommodate out-swing or in-swing doors.
- Screw size M4 or #8.
Qty
Qty
-

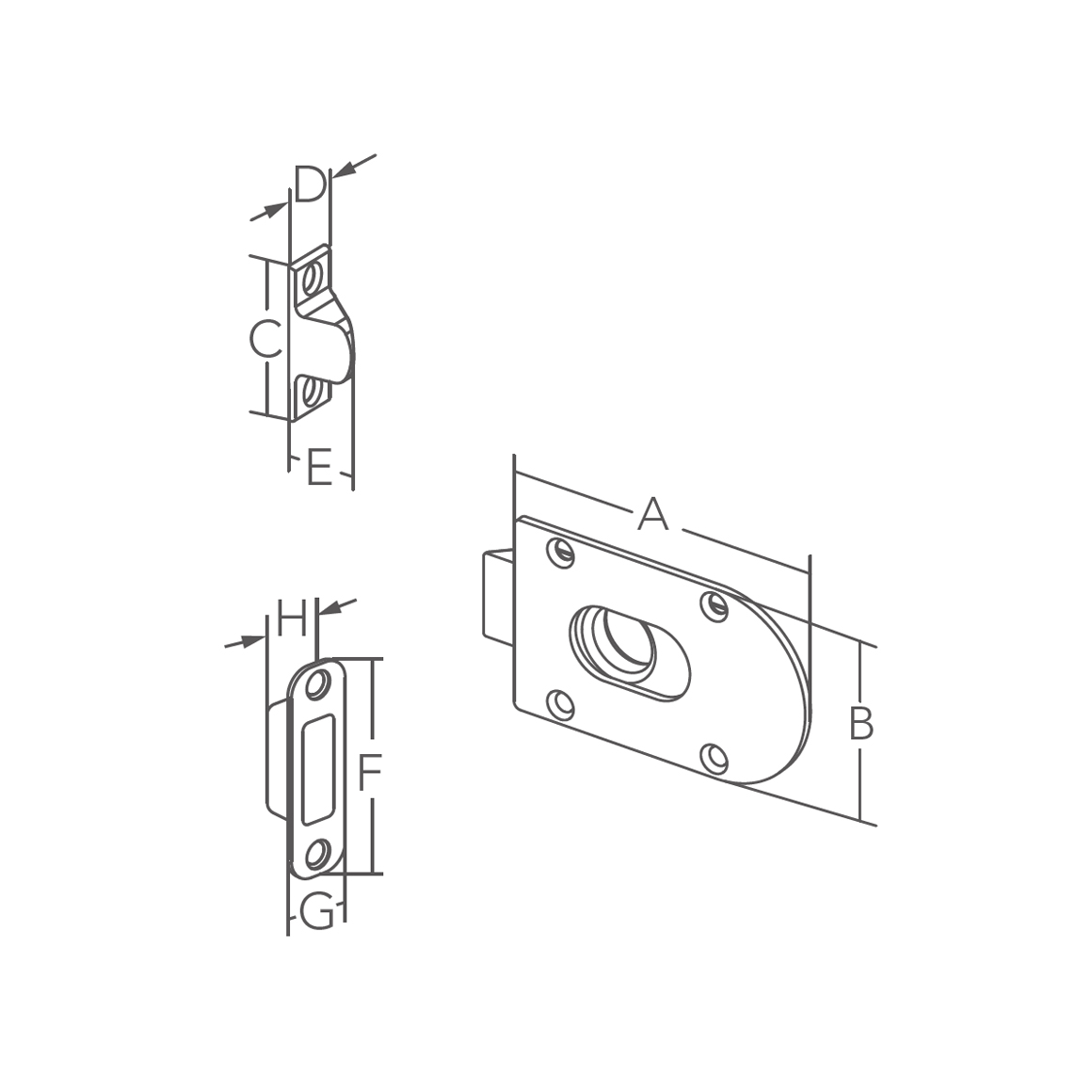

Bulk No.
A mm
B mm
C mm
D mm
E mm
F mm
G mm
H mm

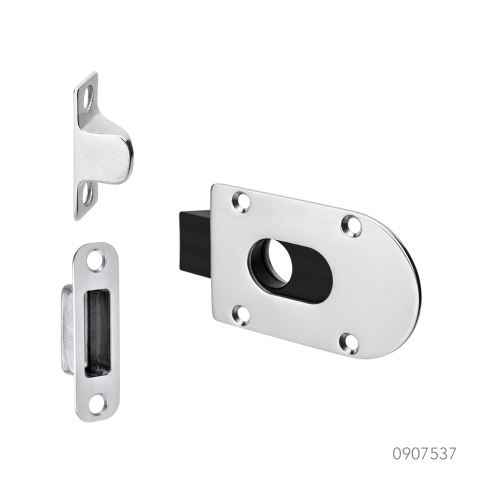

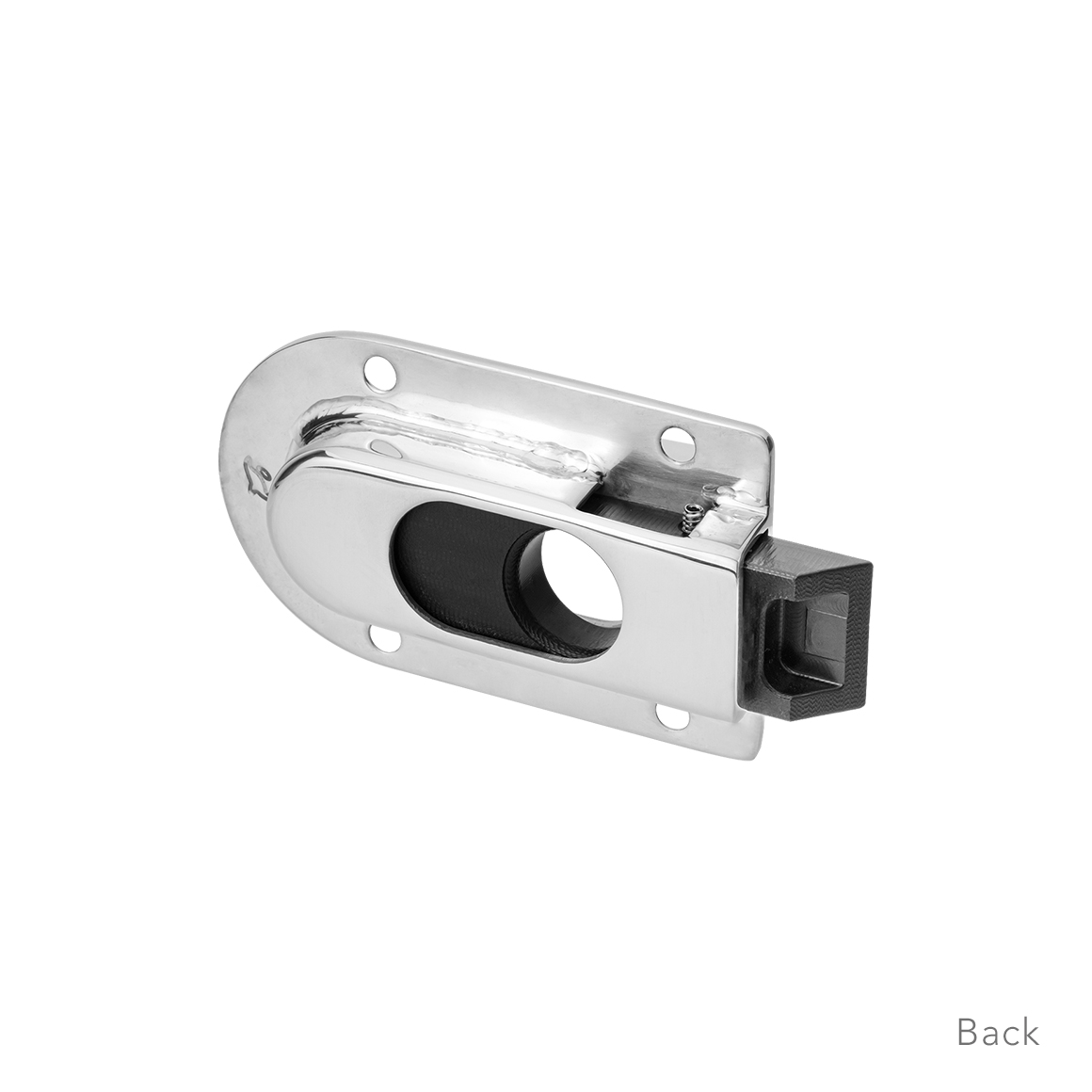

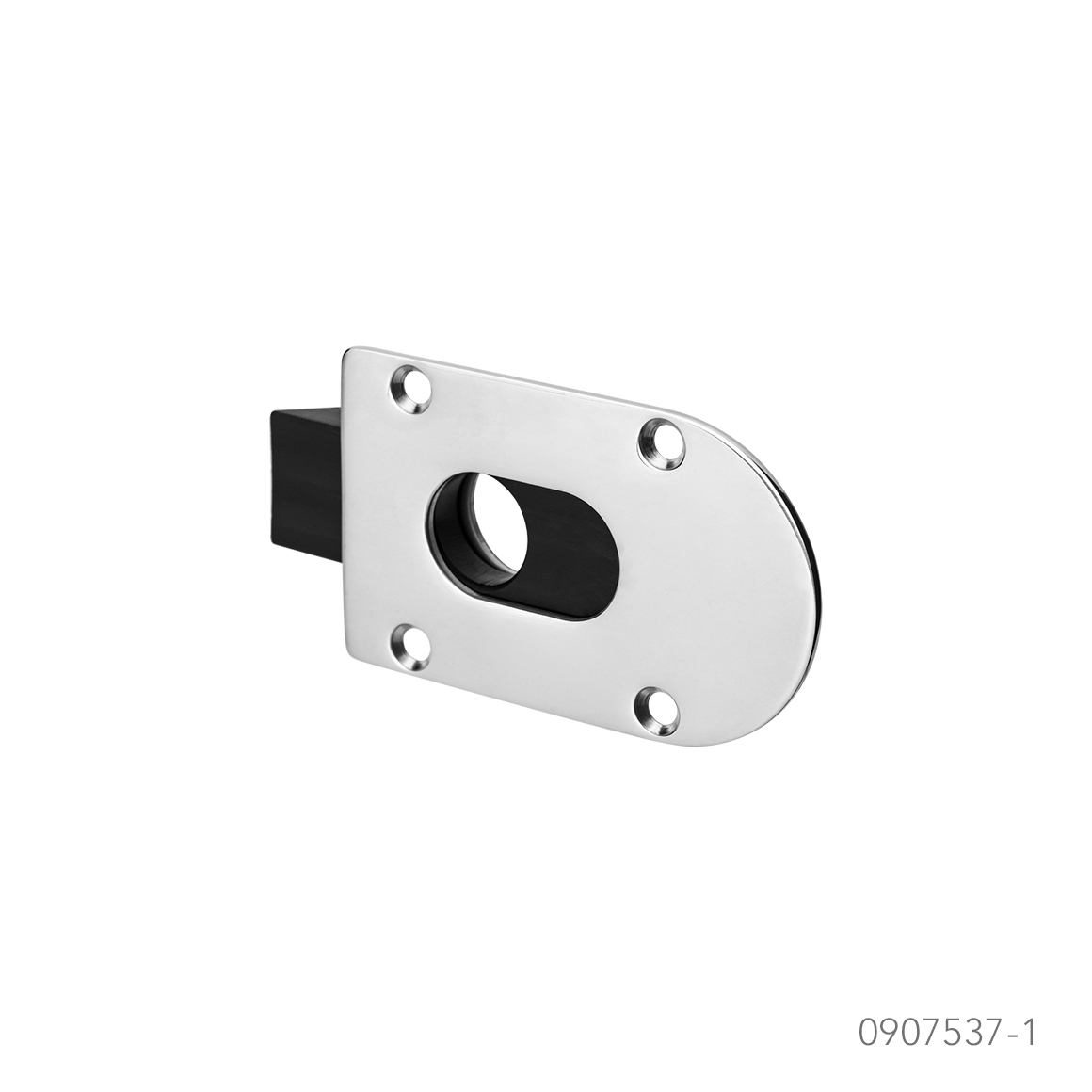

0907537 91(3-9/16") 56(2-3/16") 35(1-3/8") 14(9/16") 15(9/16") 62(2-7/16") 19(3/4") 13.5(1/2") 0907537-1 91(3-9/16") 56(2-3/16") - - - - - -
-
Bulk No.
Download
0907537 Drawing 0907537-1 -
