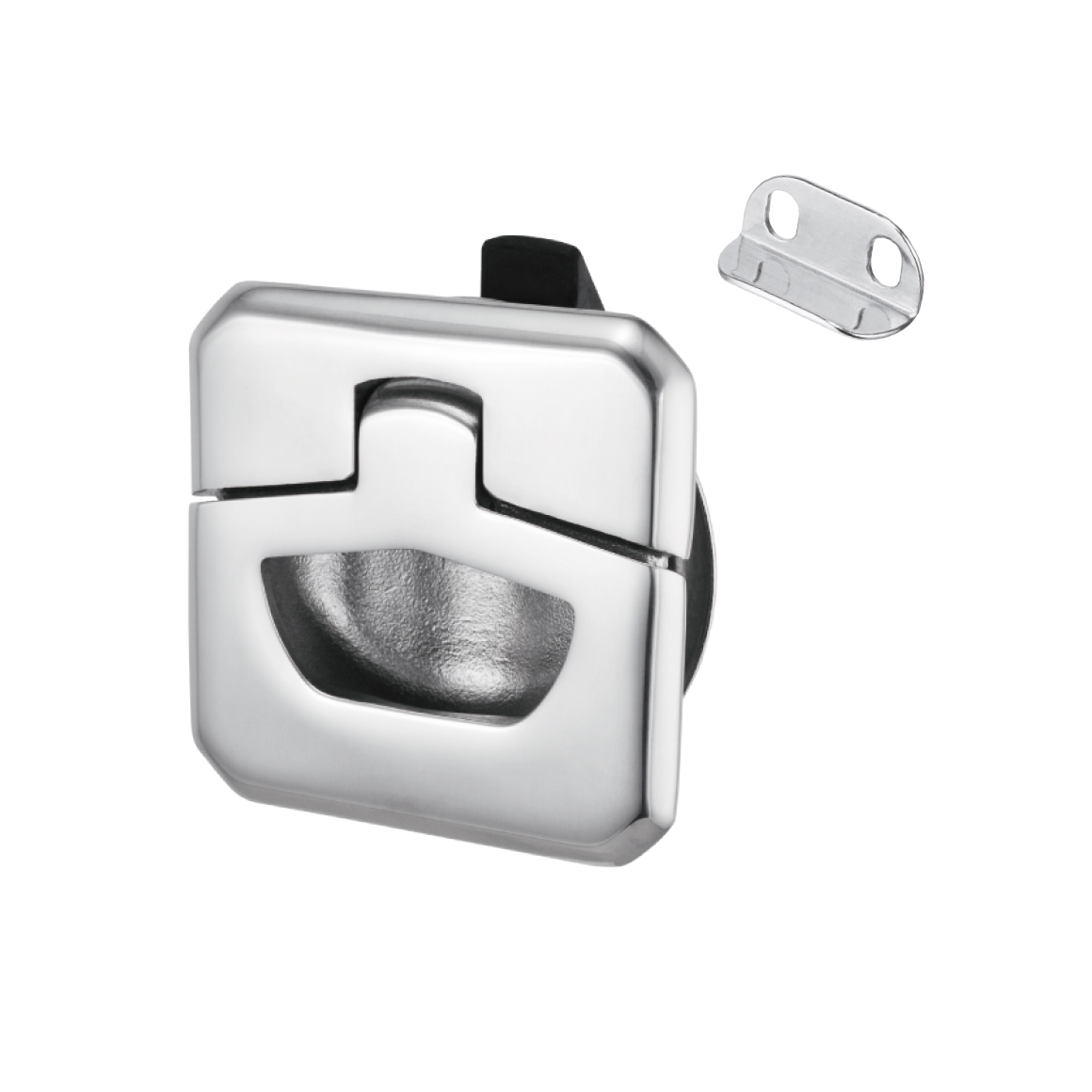

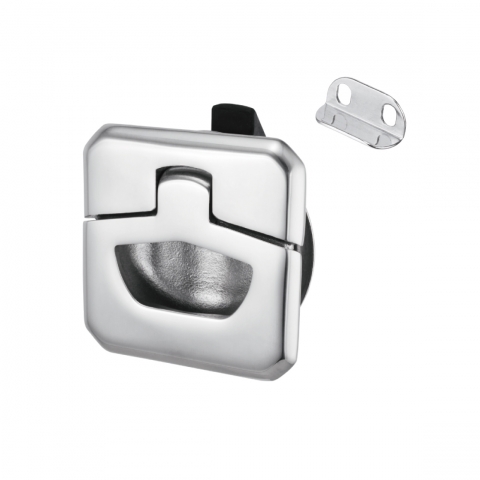

GRAND SERIES - SQUARE SLAM LATCH 1-3/4"

Stainless Steel 316
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates double springs and plastic slide
  to ensure quiet operation, even underway.

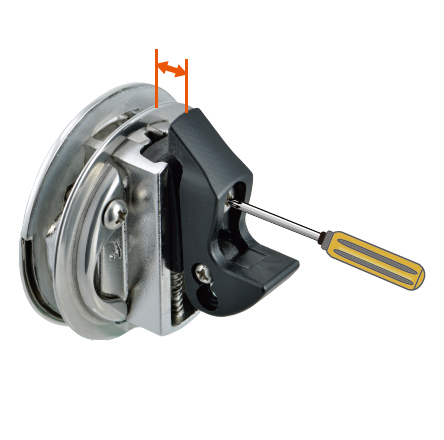

- Adjustable slide accommodates minor adjustments
  following installation to ensure rattle-free operation.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- #6 installation screws are included.
- Strike screw size M4 or #8 (not included).
- PVD finish is available upon request.
Qty
Qty
Qty
Qty
  •

    Bulk No.

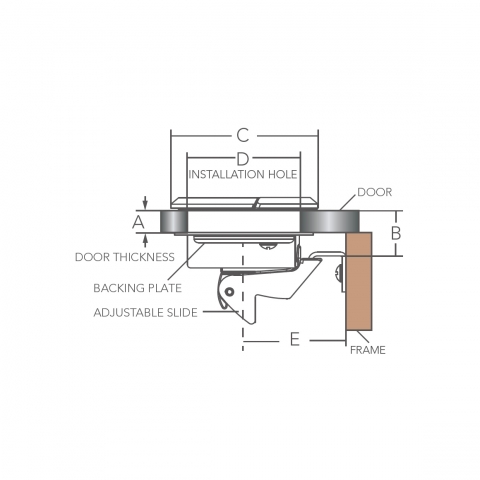

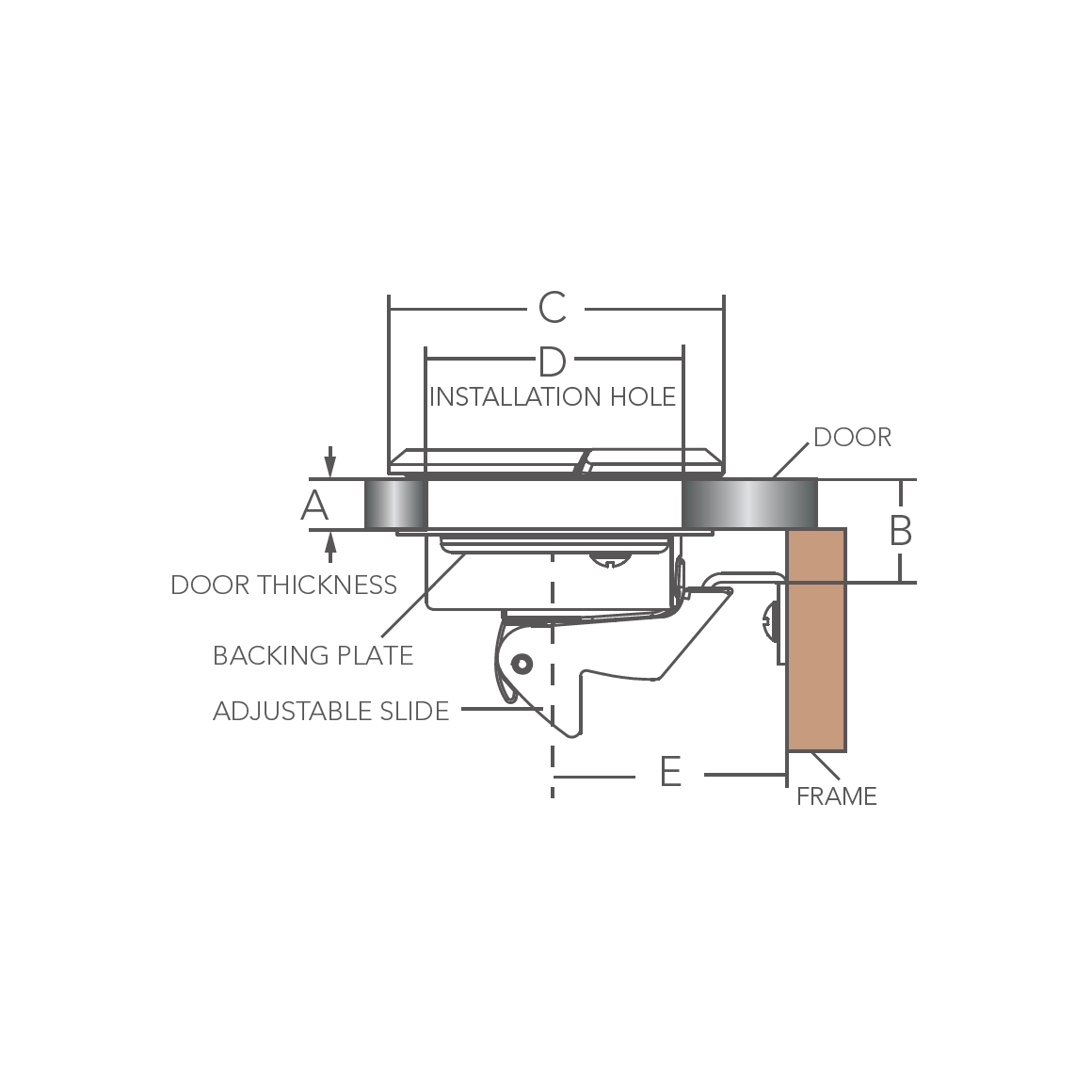

    Shape

    Model

    A mm

    B mm

    C mm

    D mm

    E mm

    1007871 Square W/O Lock 9~22(3/8"~7/8") 19~25(3/4"~1") 57(2-1/4") 45(1-3/4") 40(1-9/16")
    1007872 Square W/ Lock 9~22(3/8"~7/8") 19~25(3/4"~1") 57(2-1/4") 45(1-3/4") 40(1-9/16")
    9305351-V1              8mm(5/16") Spacer
    1007811-V11             3mm(1/8") Spacer

  •

    Bulk No.

    Download

    1007871 Drawing
    1007872 Drawing
