CUBIC MAG. HOLDER - FOLDABLE TYPE
Stainless Steel 316 & Nylon & Rubber
- Holder can be adjusted and rotated to desired angle and height .
- The stand can be folded down when not in use.
- Magnets are seated in stainless steel 316 and sealed for protection
against the corrosive marine environment.
- Match any north and south pole magnets as a set.
- If you pair a flush rubber bumper style magnet with a proud magnet,
the proud side should be the same or larger size to prevent damages.
- Rubber bumper style magnets reduce noise, hence ideal for interior application.
Plus, due to potential UV degradation, exterior use is not recommended.
- Sold by piece.
- Screw size M4 or #8.
- Holder can be adjusted and rotated to desired angle and height .
- The stand can be folded down when not in use.
- Magnets are seated in stainless steel 316 and sealed for protection
against the corrosive marine environment.
- Match any north and south pole magnets as a set.
- If you pair a flush rubber bumper style magnet with a proud magnet,
the proud side should be the same or larger size to prevent damages.
- Rubber bumper style magnets reduce noise, hence ideal for interior application.
Plus, due to potential UV degradation, exterior use is not recommended.
- Sold by piece.
- Screw size M4 or #8.
Qty
Qty
-
Bulk No.
Mag. Pole
Mag. Size

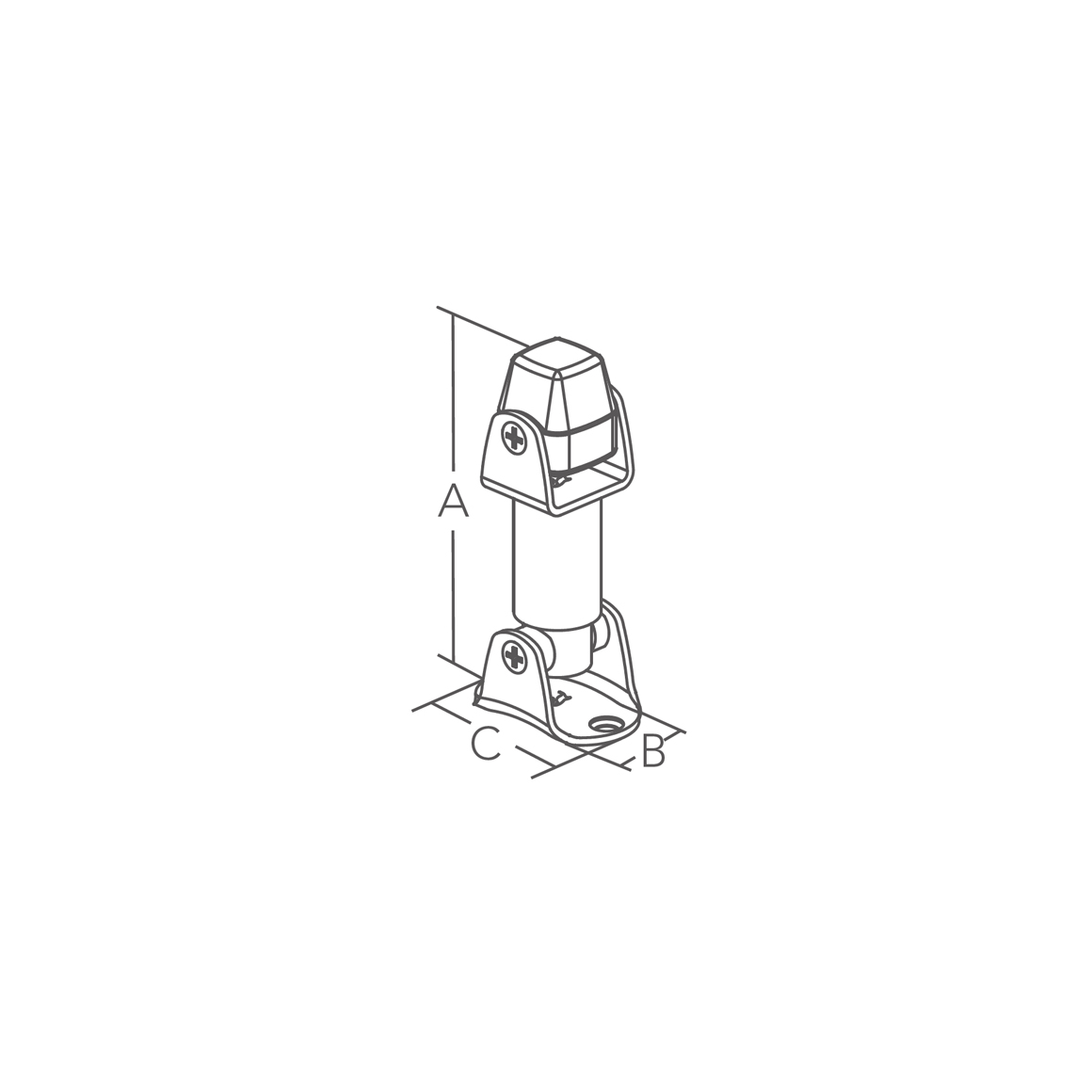

A mm
B mm
C mm

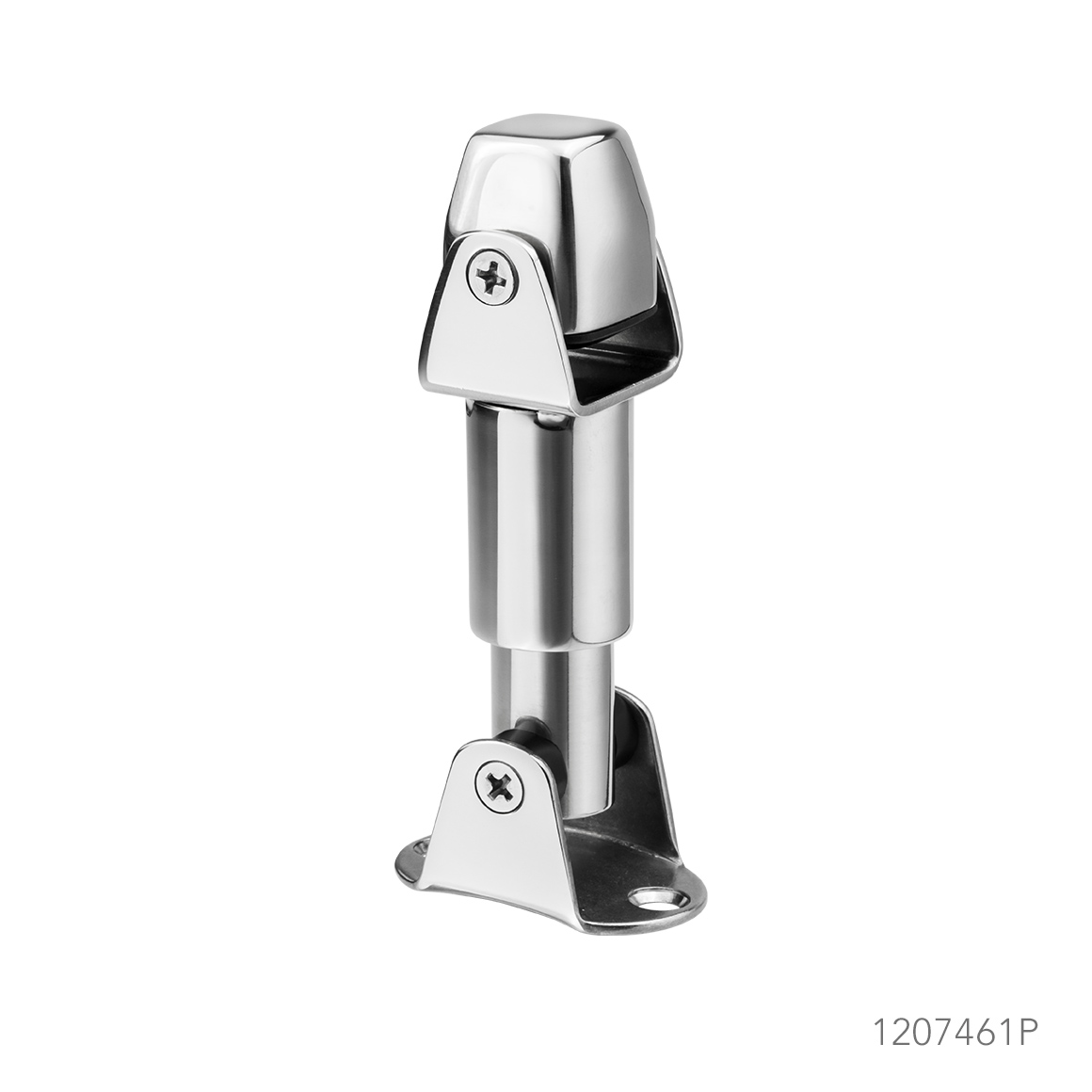

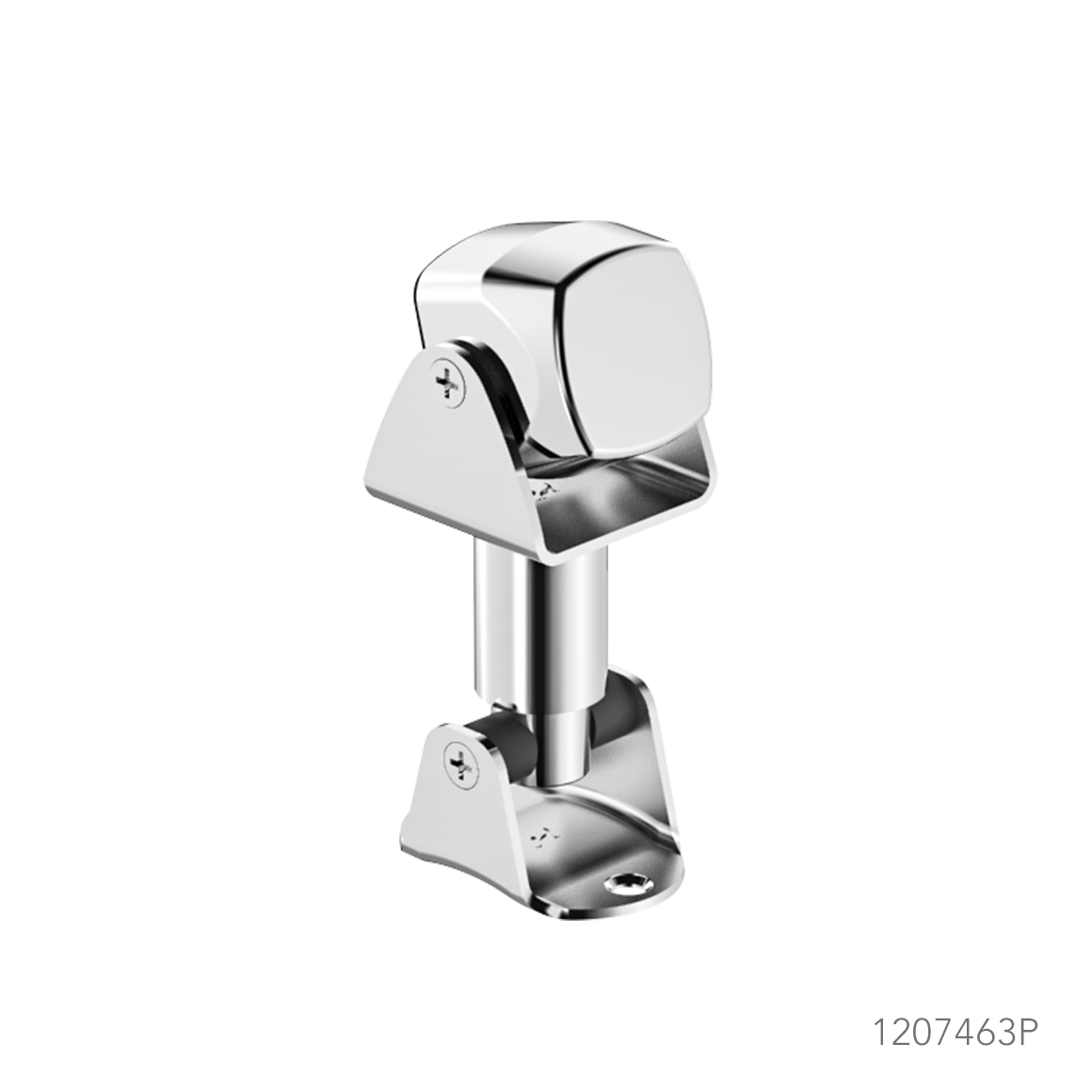

1207461P North 15 x 10 96~123(3-3/4"~4-13/16") 29(1-1/8") 44(1-3/4") 1207463P North 30 x15 114~141(4-1/2"~5-9/16") 37(1-7/16") 53(2-1/16") MAGNET SIZE
HOLDING POWER
W/O RUBBER BUMPER
W/ RUBBER BUMPER
15 x 10 15 x 10 3.3 kg / 7.3 lb 1.5 kg / 3.3 lb 25 x 10 25 x 10 7.0 kg / 15.4 lb 5.2 kg / 11.5 lb 35 x 10 35 x 10 9.0 kg / 19.8 lb 7.2 kg / 15.8 lb 30 x 15 35 x 10 11 kg / 24.2 lb 10 kg / 22 lb MAG. HOLDER BOTTOM
P (North) N (South)
