COCKPIT DECK DRAIN

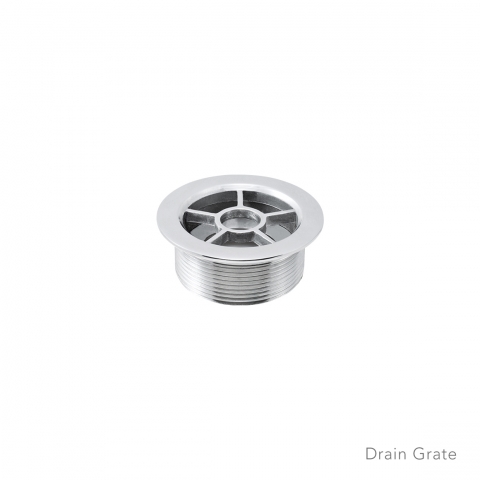

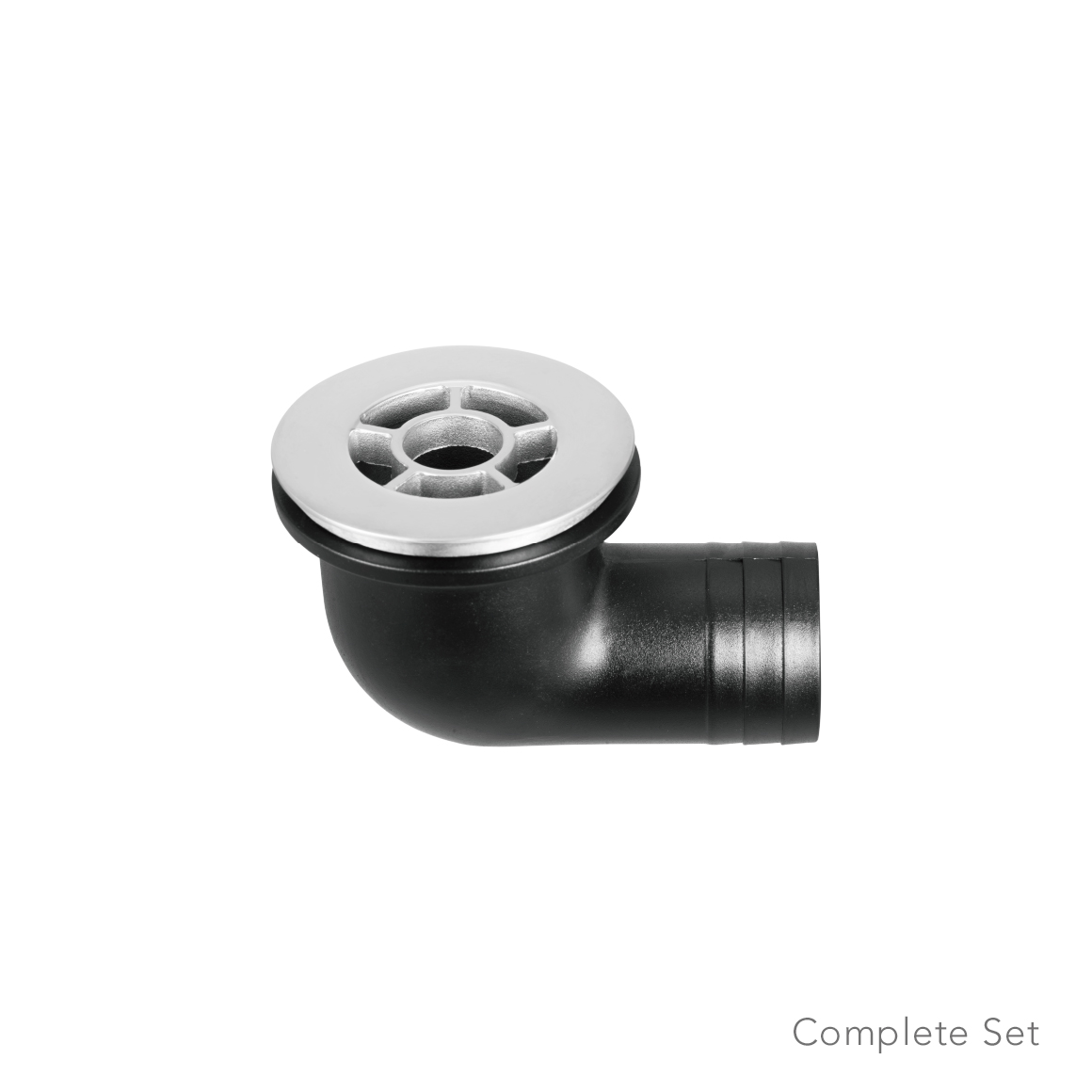

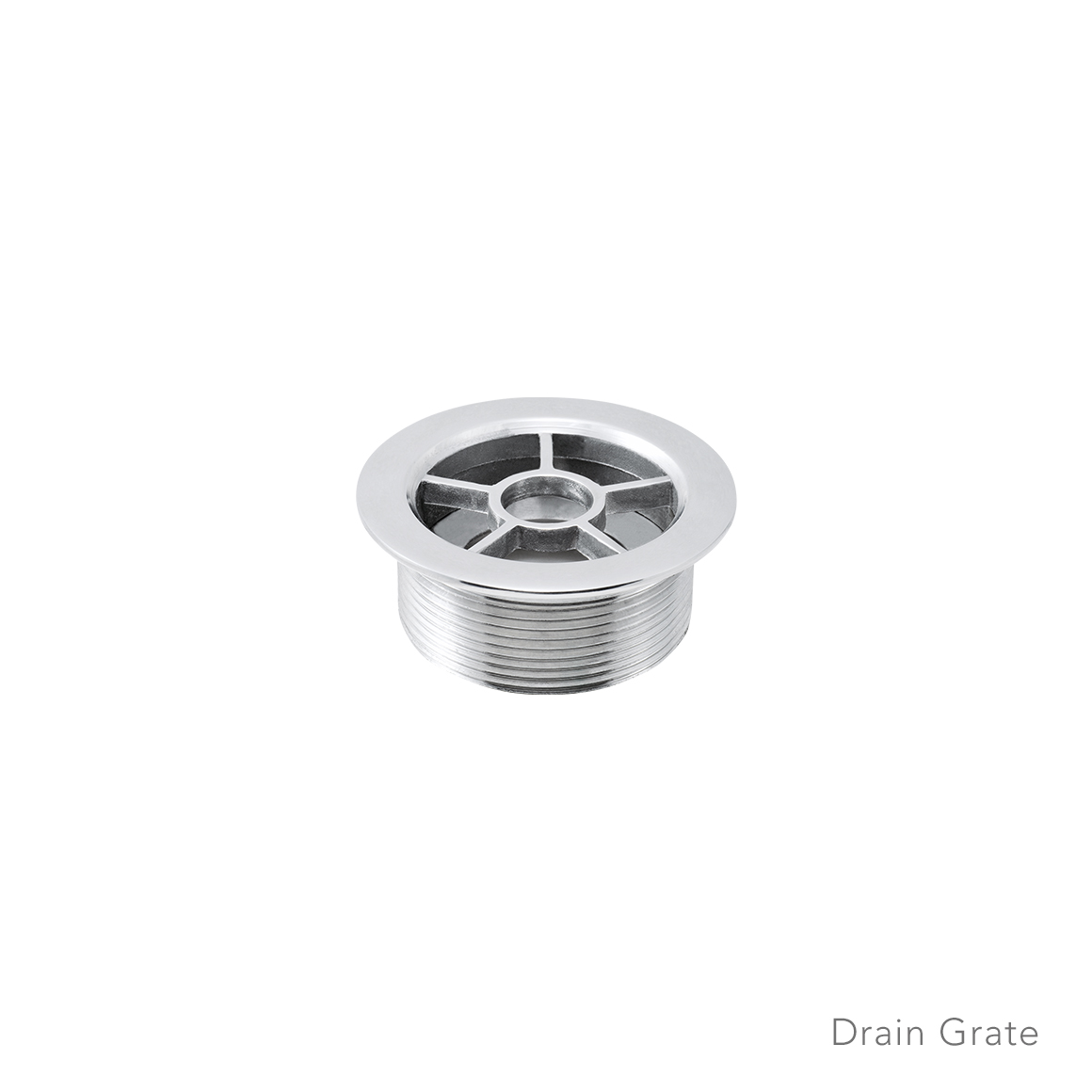

Stainless Steel 316 Grate & Nylon Elbow
- Drain grate designed to maximize water flow.
- When ordering drain grate only, BSP, NPT or NPSM is upon request.
- 48mm (1-7/8") installation hole is required for 0403436.
- 49mm (1-15/16") installation hole is required for 9305351/-A/2/2-A.
- 60mm (2-3/8") installation hole is required for 9405834/6/9305353/3-A.
- 0403436-G is sold separately.
- Drain grate designed to maximize water flow.
- When ordering drain grate only, BSP, NPT or NPSM is upon request.
- 48mm (1-7/8") installation hole is required for 0403436.
- 49mm (1-15/16") installation hole is required for 9305351/-A/2/2-A.
- 60mm (2-3/8") installation hole is required for 9405834/6/9305353/3-A.
- 0403436-G is sold separately.
Qty
Qty
Qty
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
Qty
Qty
Qty
-
Bulk No.

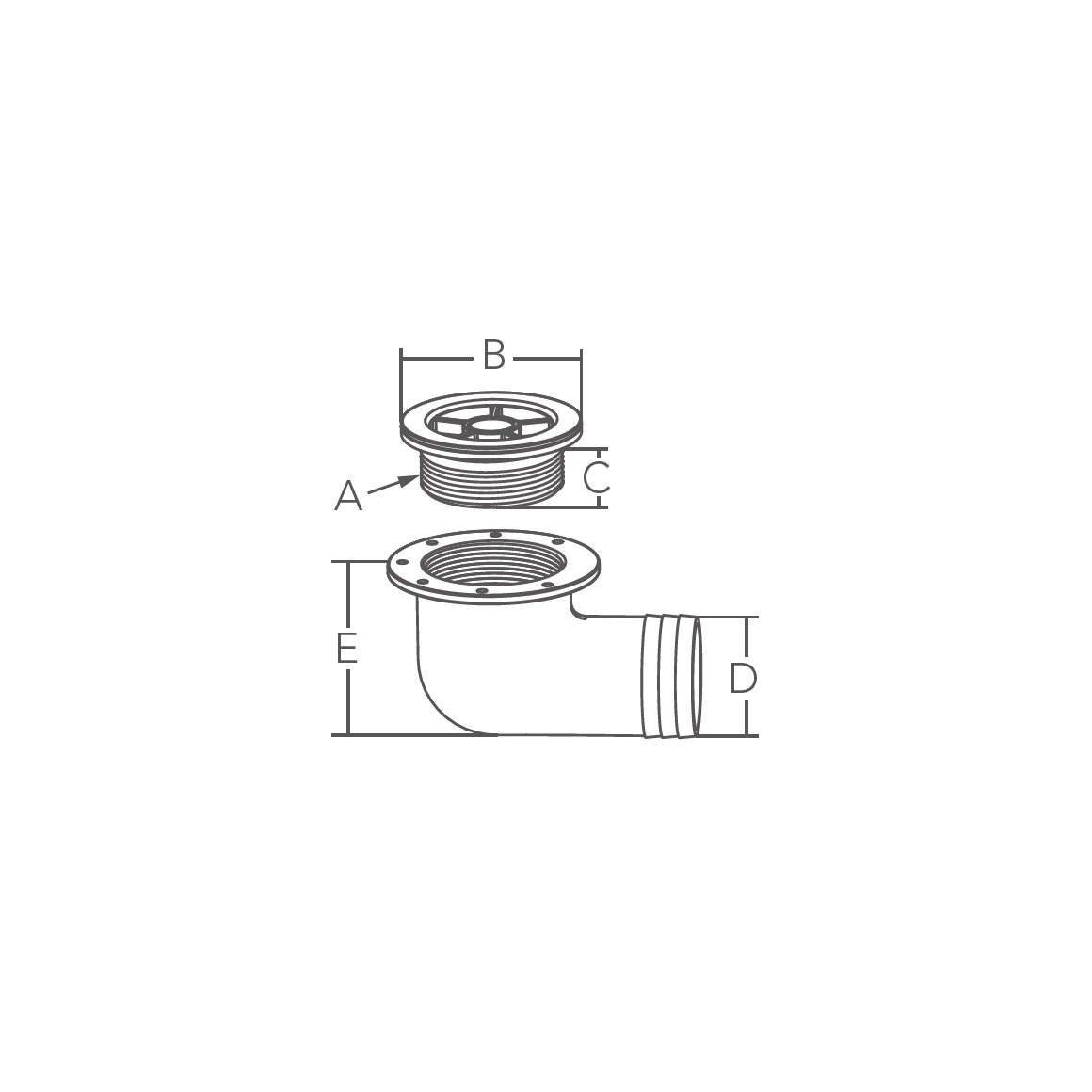

Model
A
B mm
C mm
D mm
E mm
Gasket
Nut

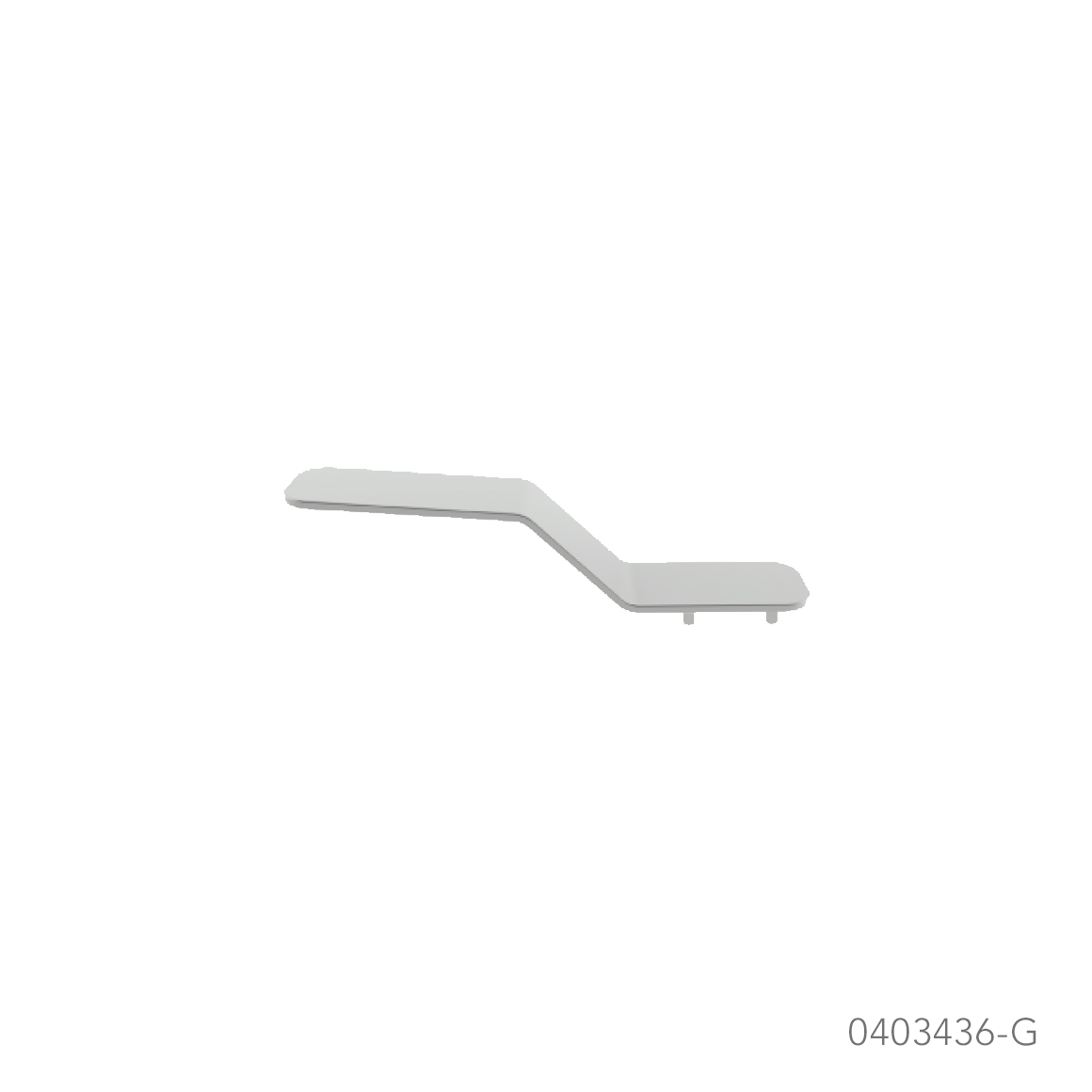

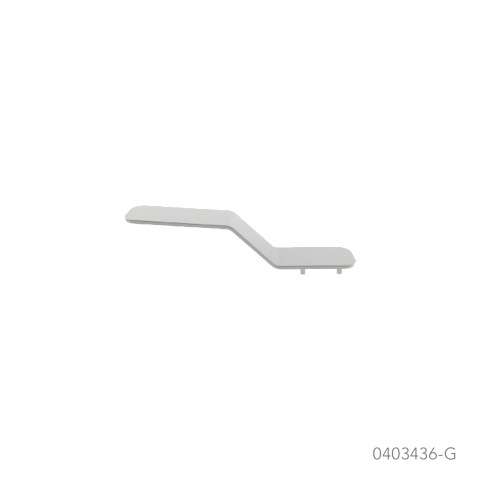

0403436 Complete Set M46 X 2.2P 67(2-5/8") 22(7/8") 38(1-1/2") 59(2-5/16") - - 9405834 Complete Set 2" NPSM 75(2-15/16") 27(1-1/16") 38(1-1/2") 61(2-3/8") - - 9405836 Complete Set 2" NPSM 75(2-15/16") 27(1-1/16") 51(2") 74(2-15/16") - - 9305351 Drain Grate 1-1/2" BSP 75(2-15/16") 50(2") - - 8(5/16") Yes 9305352 Drain Grate 1-1/2" BSP 75(2-15/16") 26(1") - - 3(1/8") None 9305353 Drain Grate 2" BSP 75(2-15/16") 27(1-1/16") - - 3(1/8") None 9305351-A Drain Grate 1-1/2" NPT 75(2-15/16") 50(2") - - 8(5/16") Yes 9305352-A Drain Grate 1-1/2" NPSM 75(2-15/16") 26(1") - - 3(1/8") None 9305353-A Drain Grate 2" NPSM 75(2-15/16") 27(1-1/16") - - 3(1/8") None 0403436-G Stainless Steel 304 Key for Grate Removal
