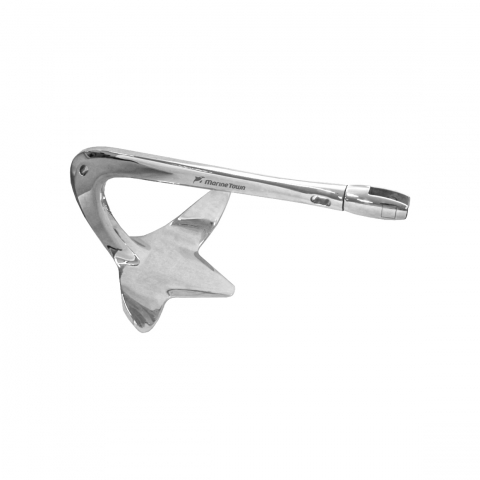

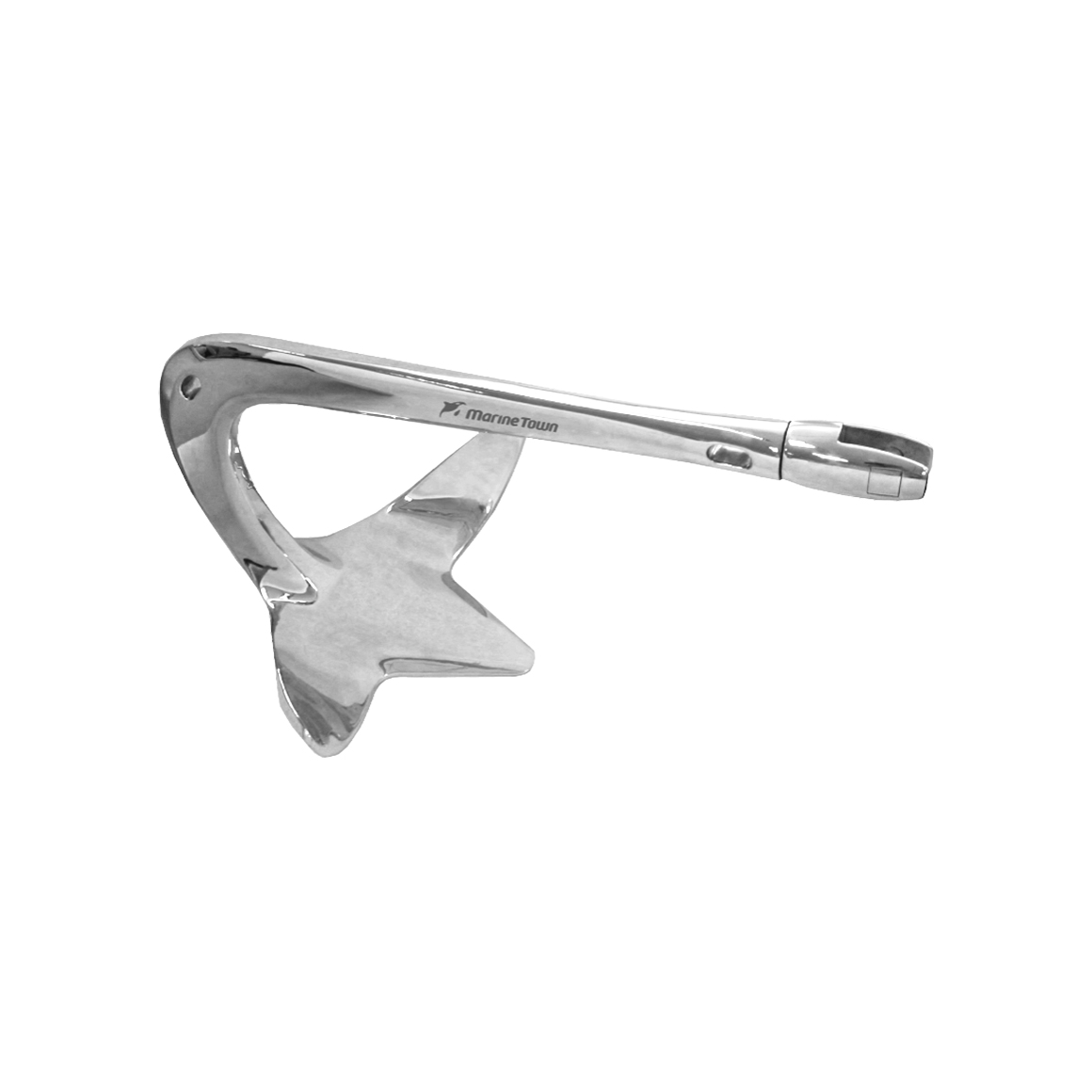

MANTA ANCHOR
Stainless Steel 316 Cast
- Bruce style anchor.
- Attractive streamline profile.
- Bright polished finish.
- Unique design of chamfered edge on shank.
- Built-in Swivel Anchor Connector.
- Effortless and quick setting.
- Works perfectly well with Manta self-launching anchor rollers.
- Superior holding power.
- Holds well in sand and rock bottoms.
- Loctite on screw is required after installation.
- Bruce style anchor.
- Attractive streamline profile.
- Bright polished finish.
- Unique design of chamfered edge on shank.
- Built-in Swivel Anchor Connector.
- Effortless and quick setting.
- Works perfectly well with Manta self-launching anchor rollers.
- Superior holding power.
- Holds well in sand and rock bottoms.
- Loctite on screw is required after installation.
Qty
Qty
-
Bulk No.
Weight

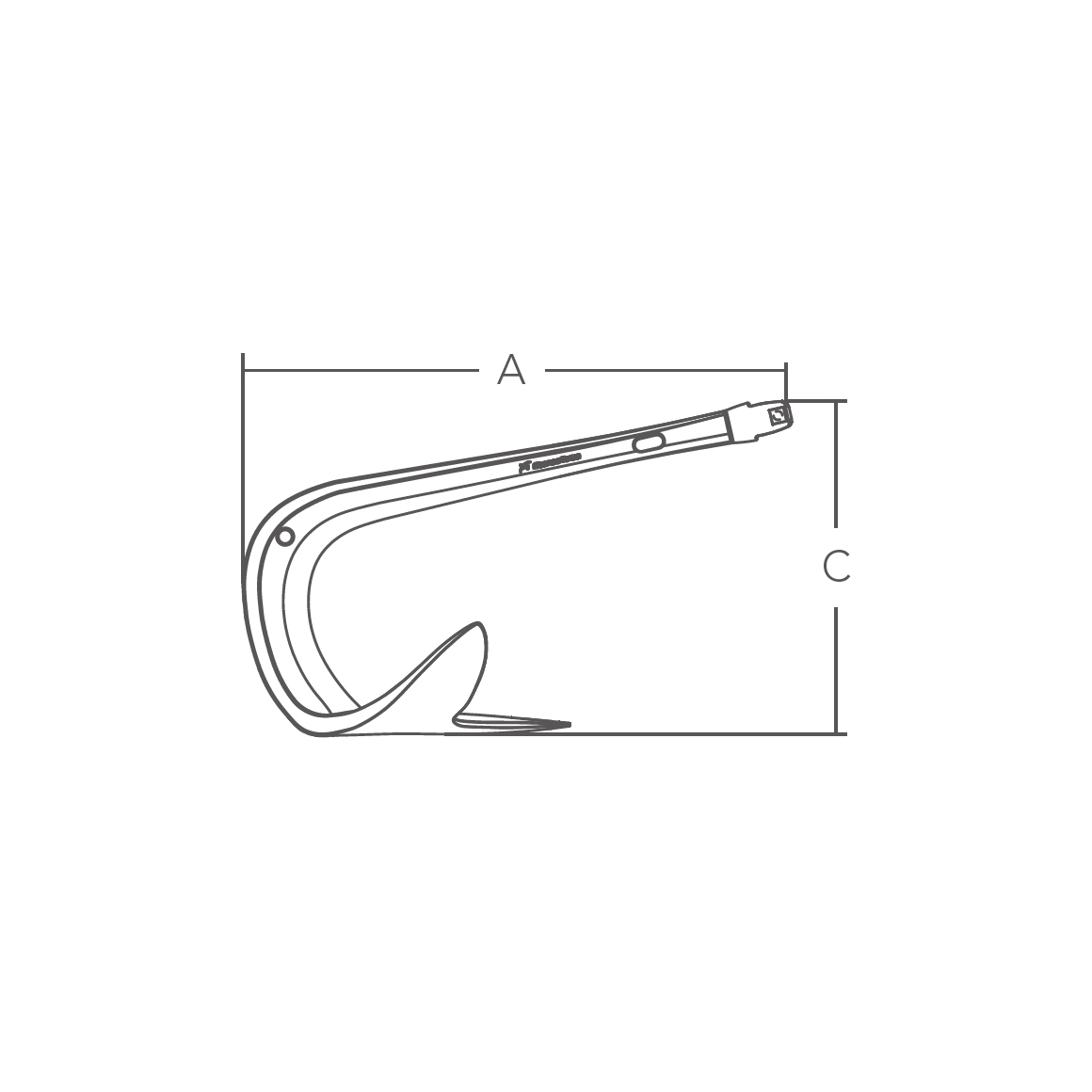

A mm
B mm
C mm
D mm
NMA-022 10 kg/ 22 lb 532(20-15/16") 387(15-1/4") 336(13-1/4") 20(13/16") NMA-033 15 kg/ 33 lb 659(25-15/16") 443(17-7/16") 387(15-1/4") 22(7/8")
Warranty :
*1lb of anchor to be used on 1 feet boat, within 10% of length difference.
*Damage by deformation or bending is not covered by this guarantee.
