OPTIONAL ACCESSORIES
Stainless Steel 316

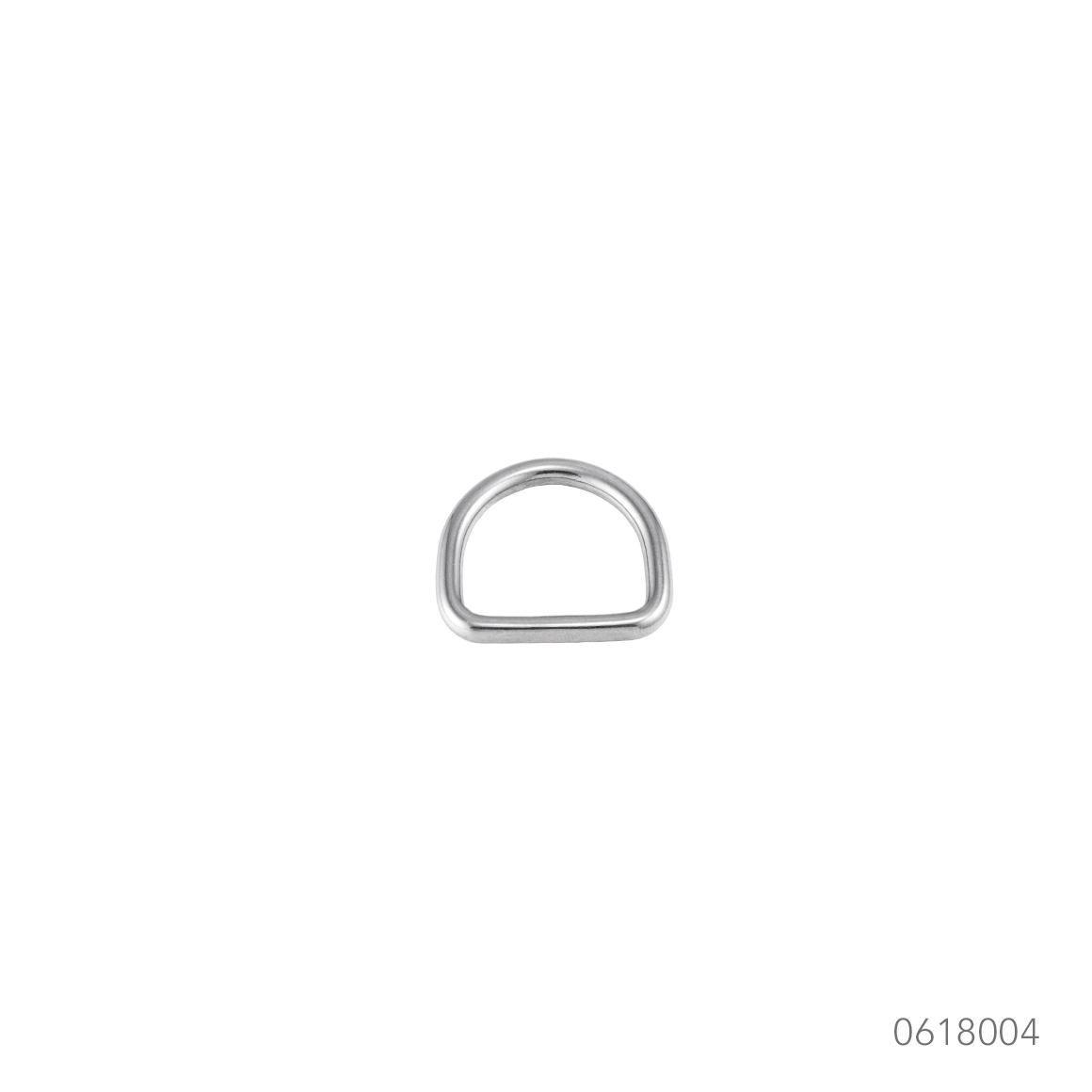

- 0618004: A welded D-ring sewn into fabric for fastening is recommended.

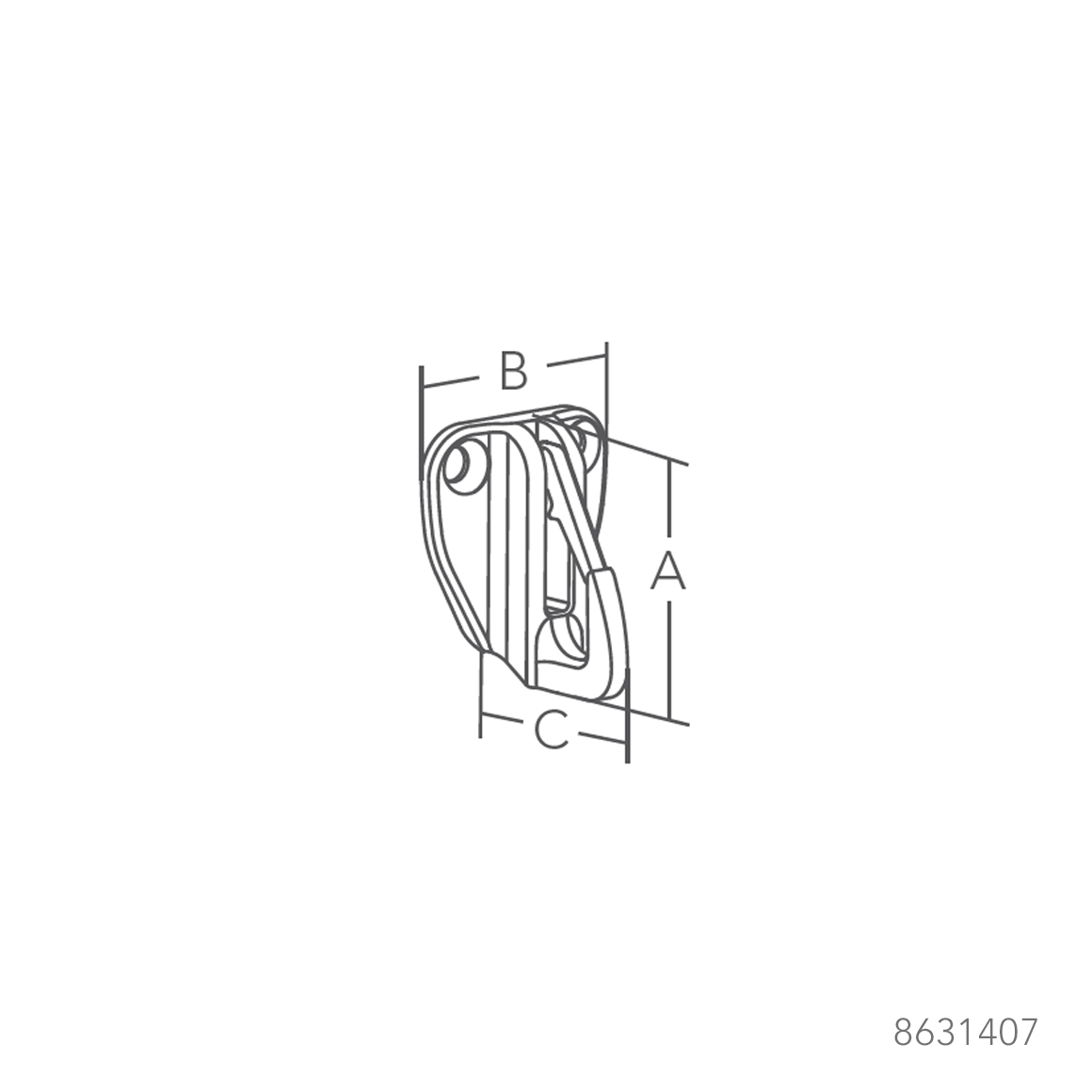

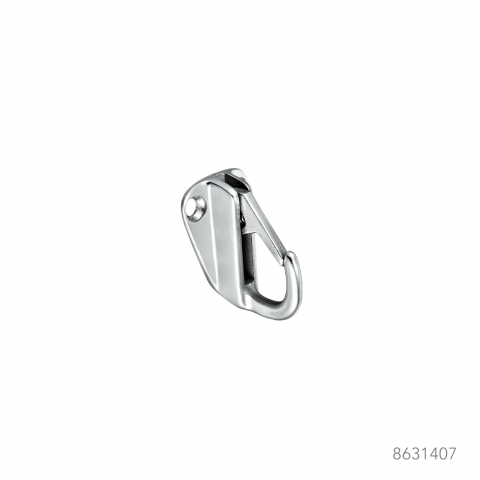

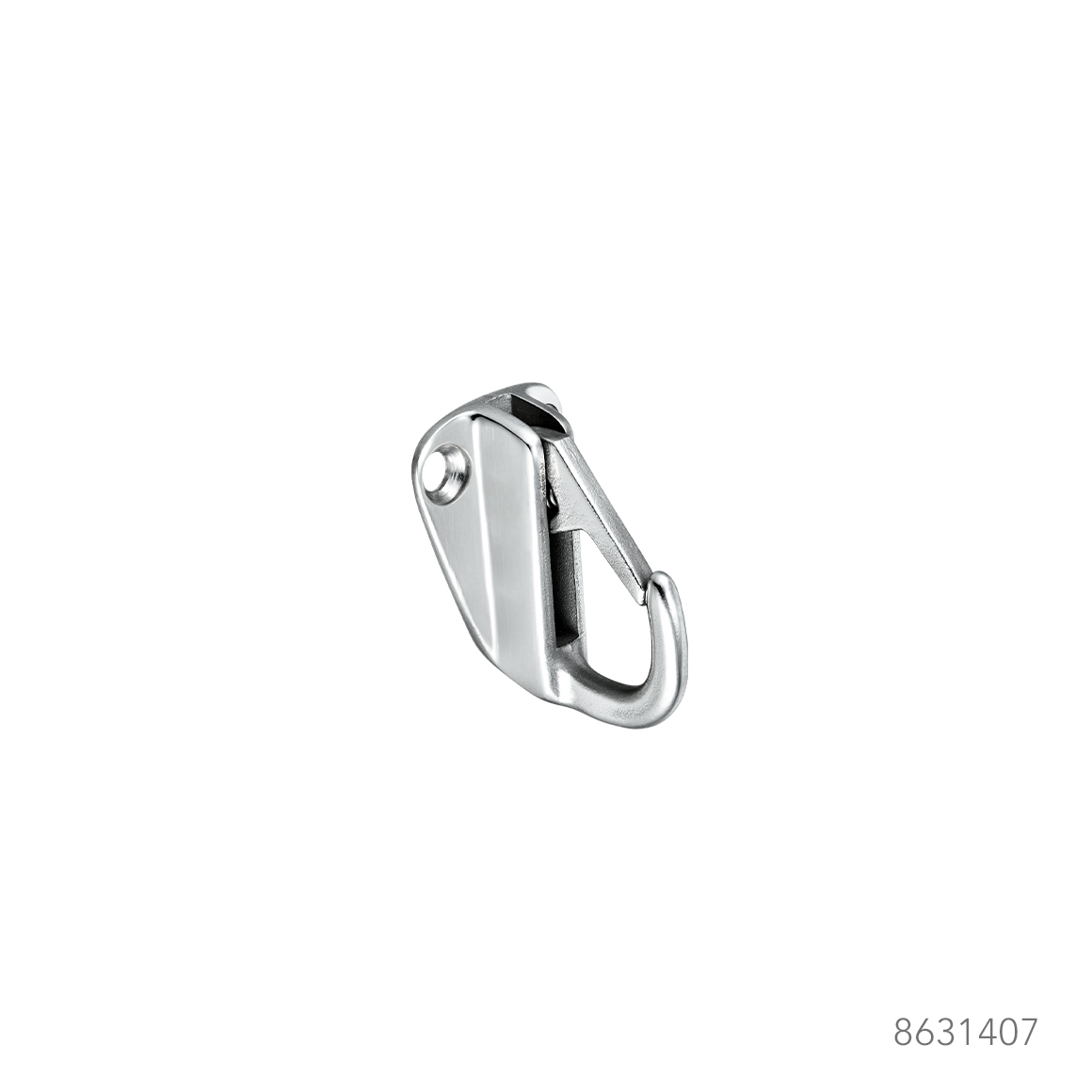

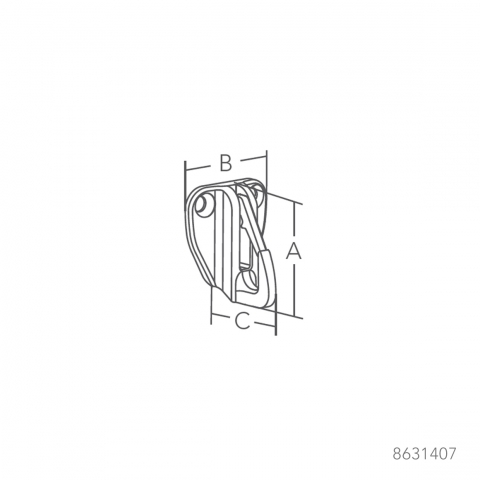

- 8631407 is sold in pairs.

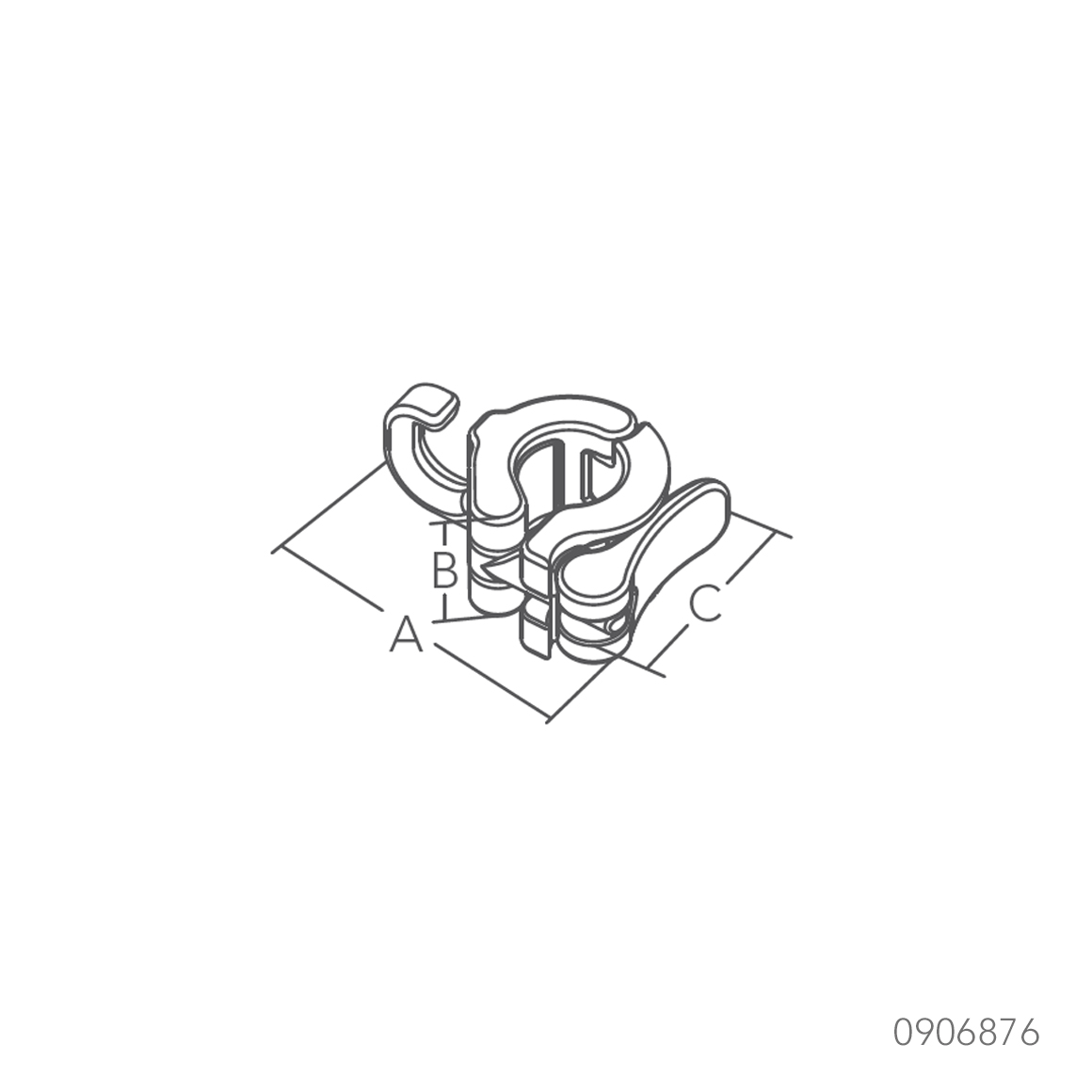

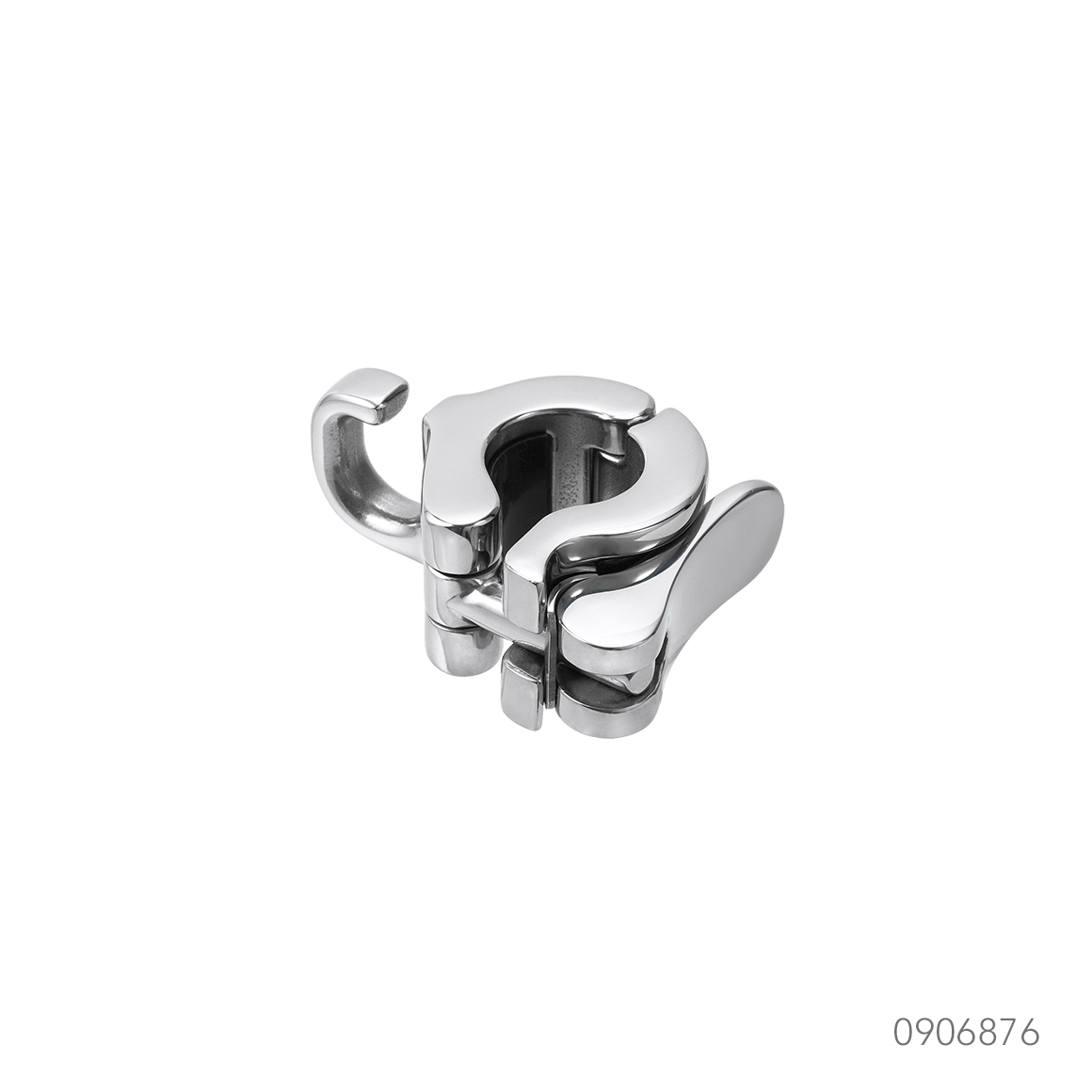

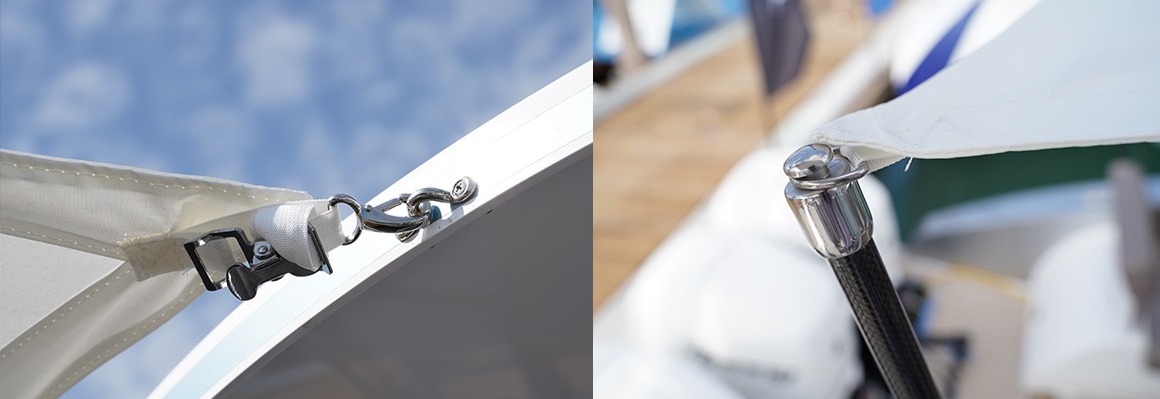

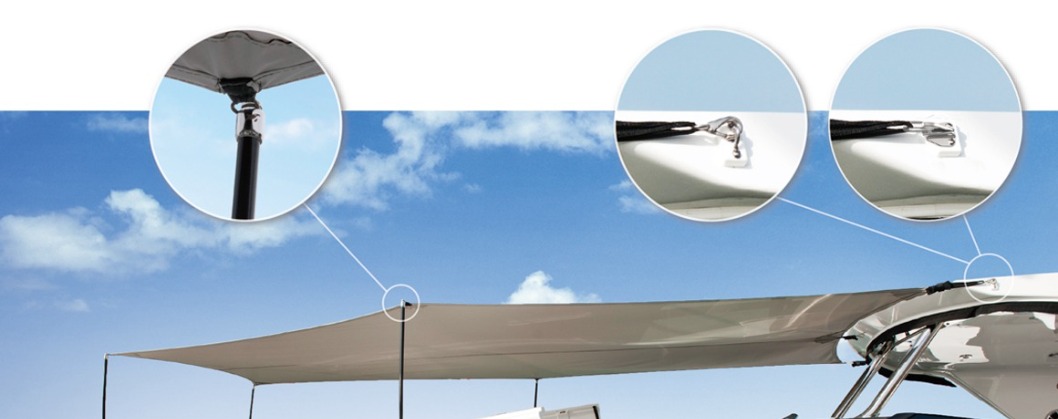

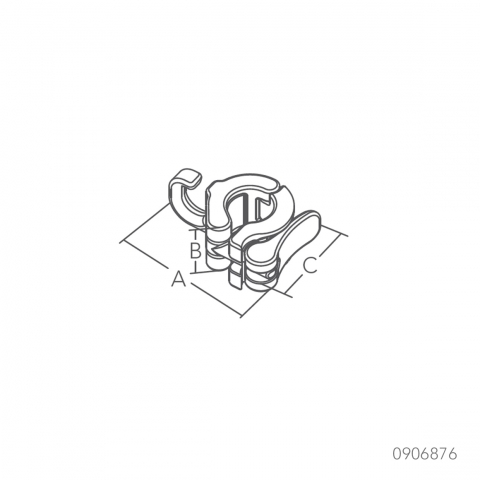

- 0906876: Designed to adjust the height of top canvas due to different
sunshine angle. 1mm and 1.5mm spacers are included to slightly
adjust the tightness of clamp.

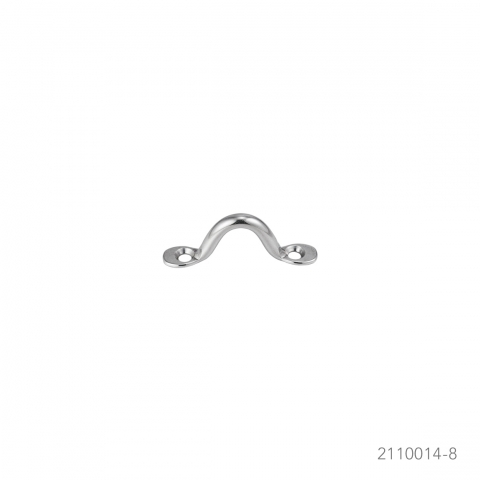

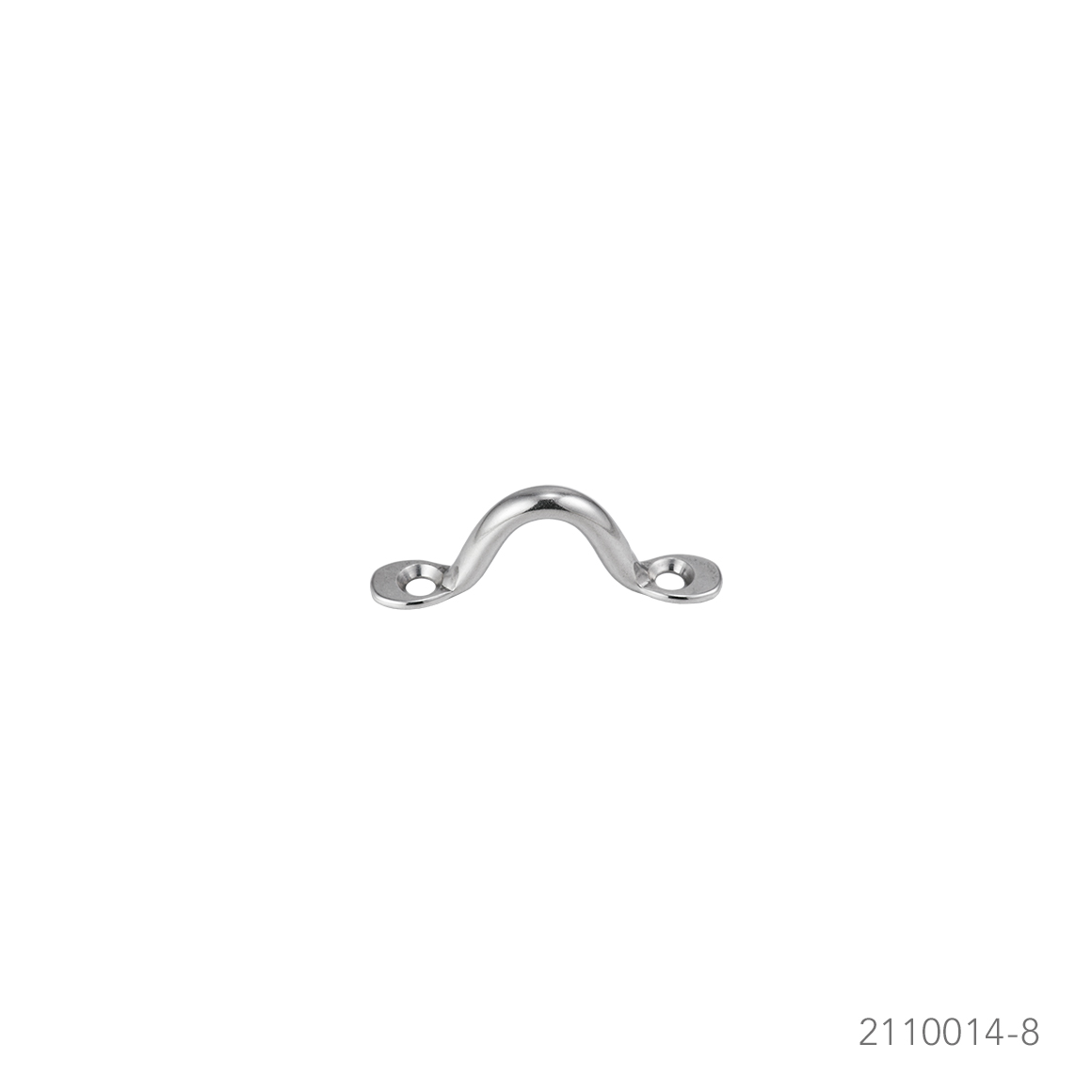

- Screw size of 8631407 and 2110014-8: M4 or #8, must be thru-bolted
to prevent vessel damage and/or injury.

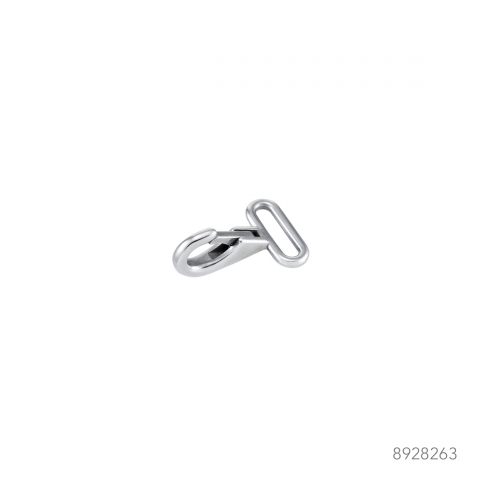

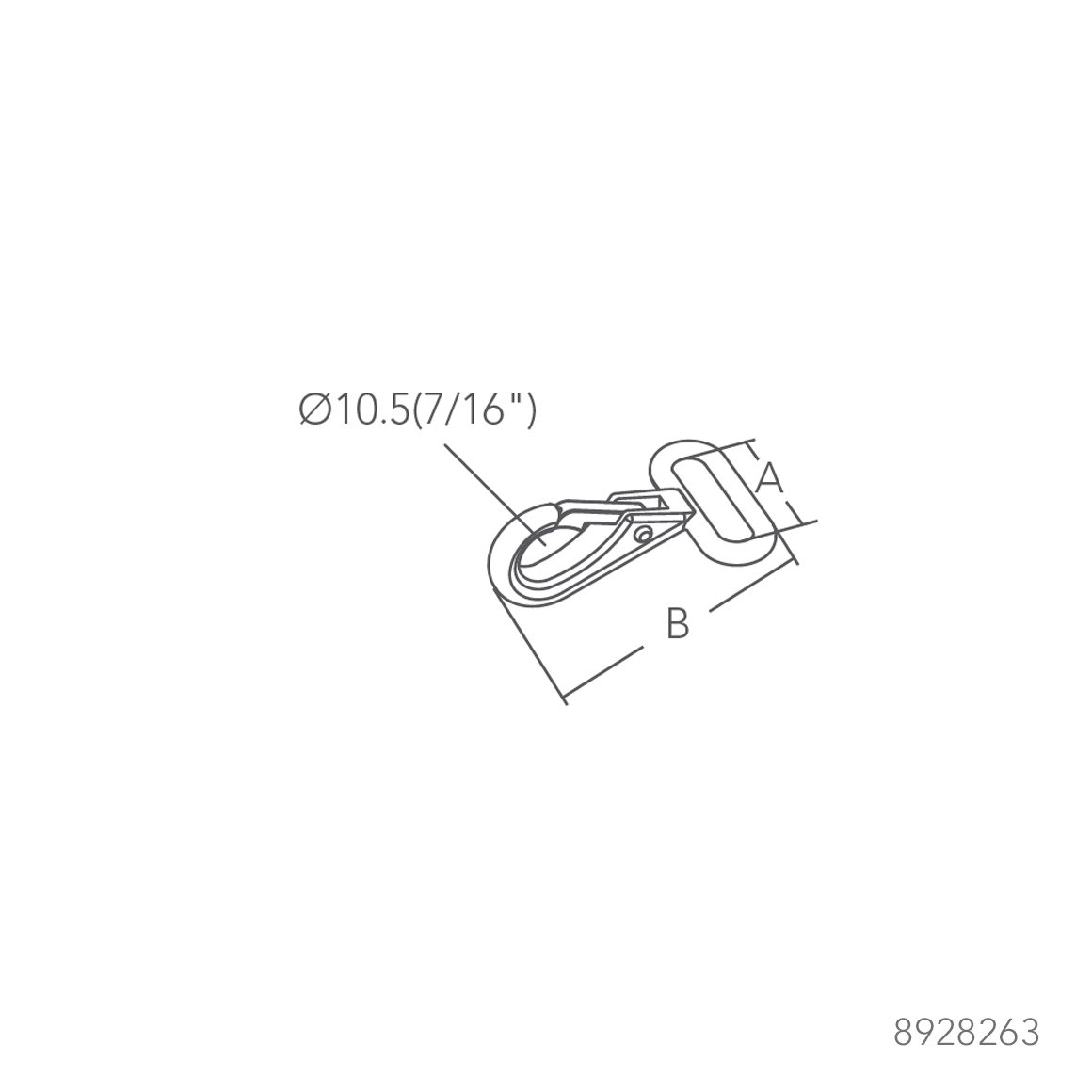

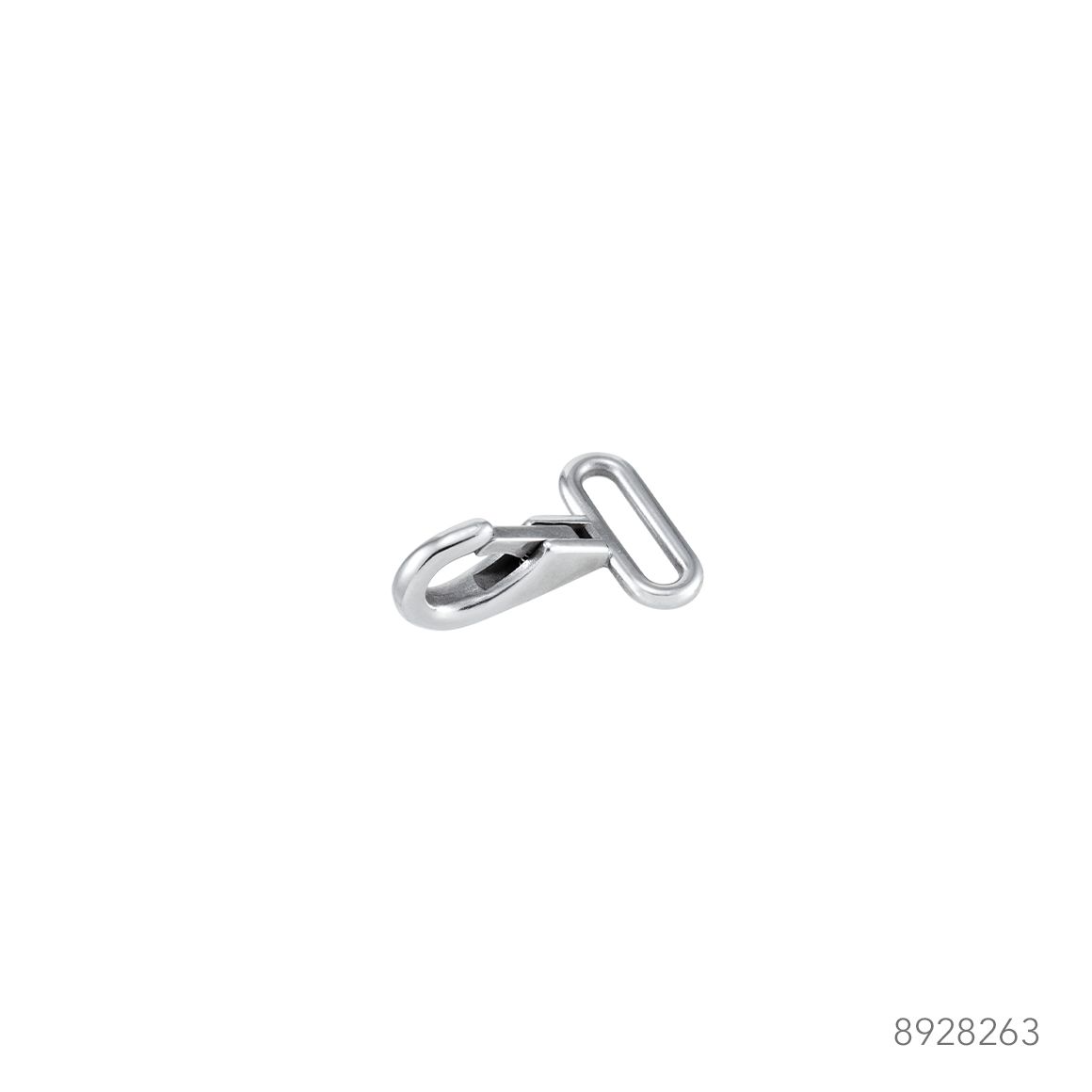

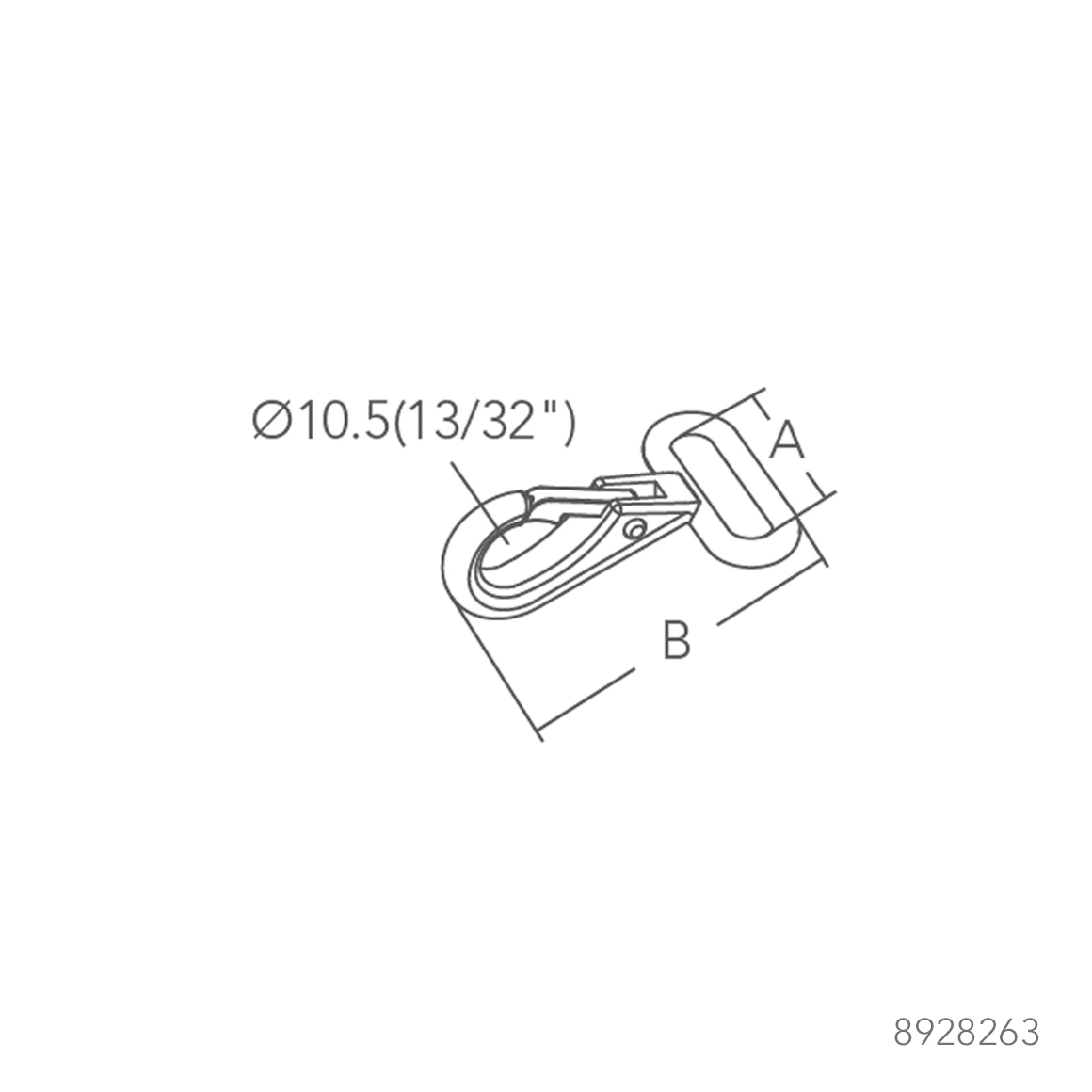

- 8928263: Stainless steel 304 spring and pin are included.
- 0618004: A welded D-ring sewn into fabric for fastening is recommended.
- 8631407 is sold in pairs.
- 0906876: Designed to adjust the height of top canvas due to different
sunshine angle. 1mm and 1.5mm spacers are included to slightly
adjust the tightness of clamp.
- Screw size of 8631407 and 2110014-8: M4 or #8, must be thru-bolted
to prevent vessel damage and/or injury.
- 8928263: Stainless steel 304 spring and pin are included.
Qty
Qty
Qty
Qty
Qty
-

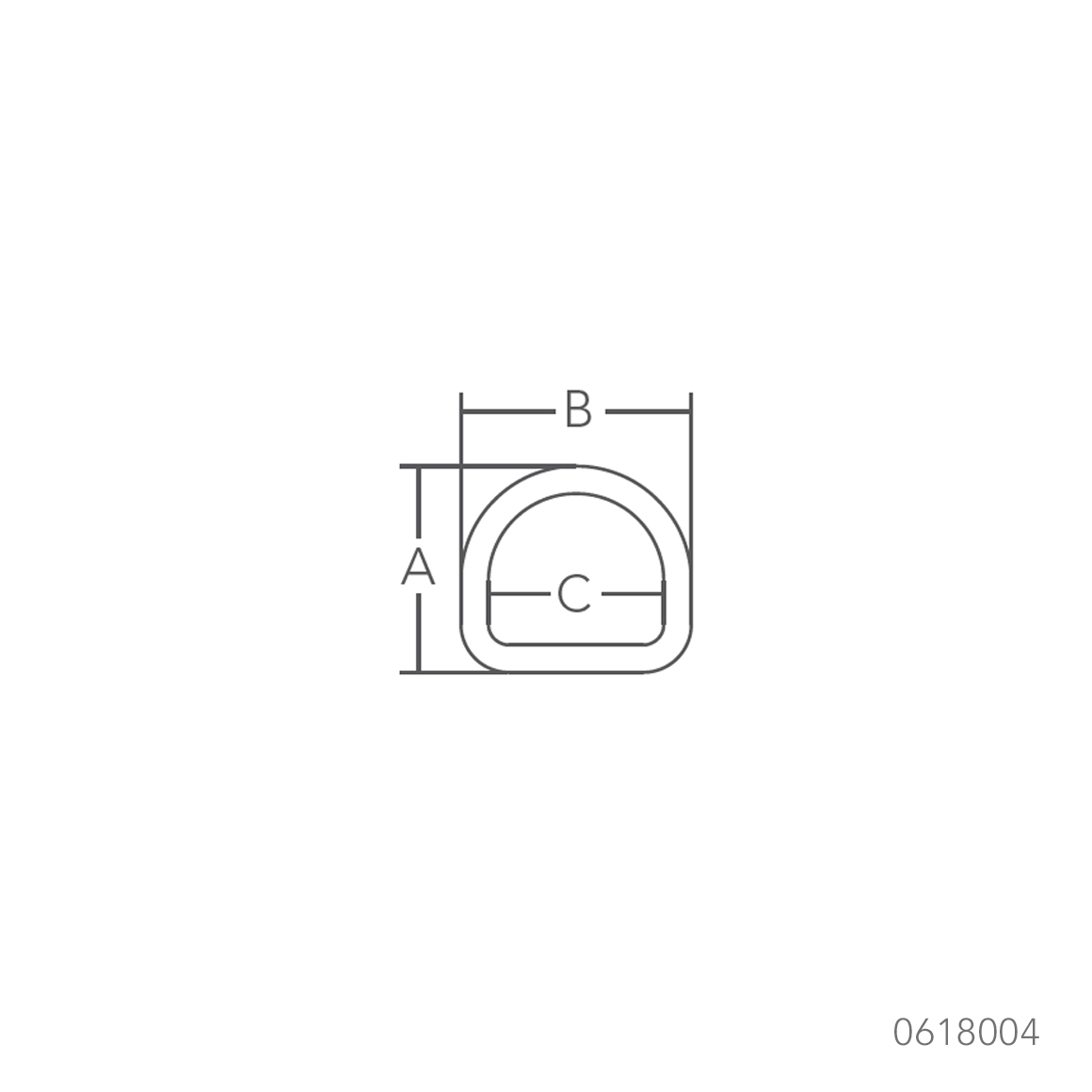

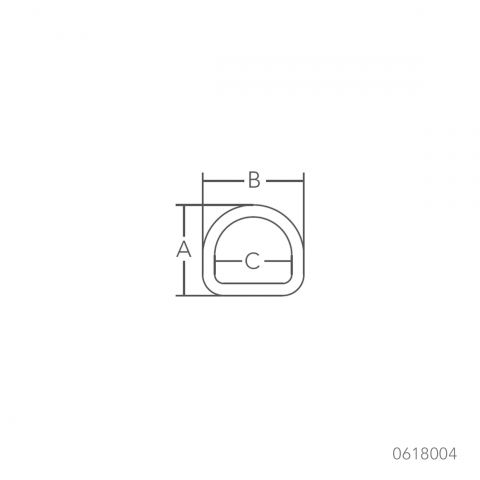

Bulk No.
Model
A mm
B mm
C mm
Ø mm

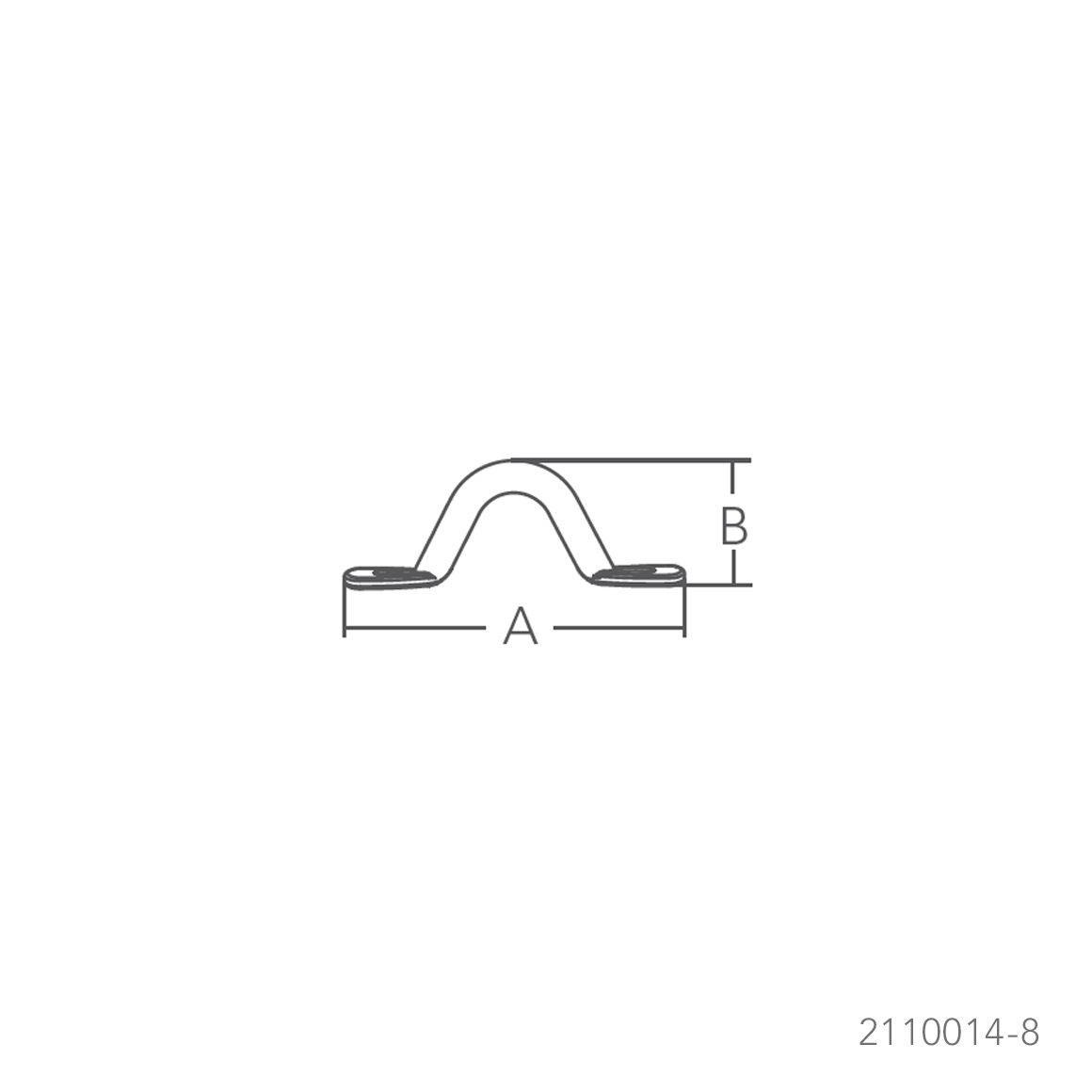

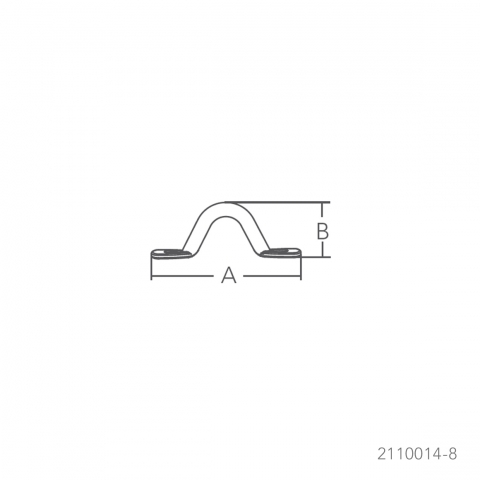

0618004 Welded D Ring 30(1-3/16") 33.5(1-5/16") 25.5(1") 4(3/16") 0906876 Quick Release Hook 60(2-3/8") 24(1") 24(15/16") - 8631407 Snap Hook 38(1-1/2") 33(1-5/16") - - 8928263 Heavy Duty Webbing Snap Hook 26(1") 50(2") - - 2110014-8 Eye Strap 61(2-3/8") 22(7/8") - 6(1/4")
