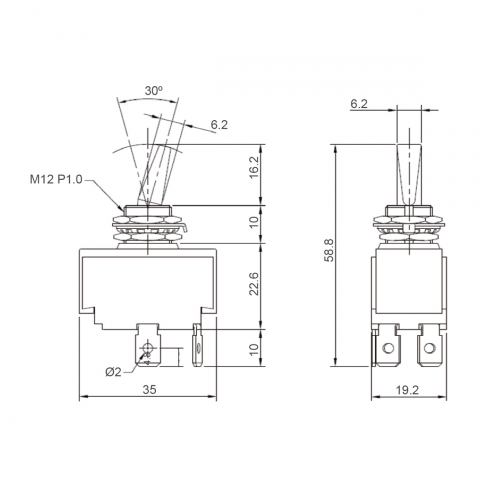

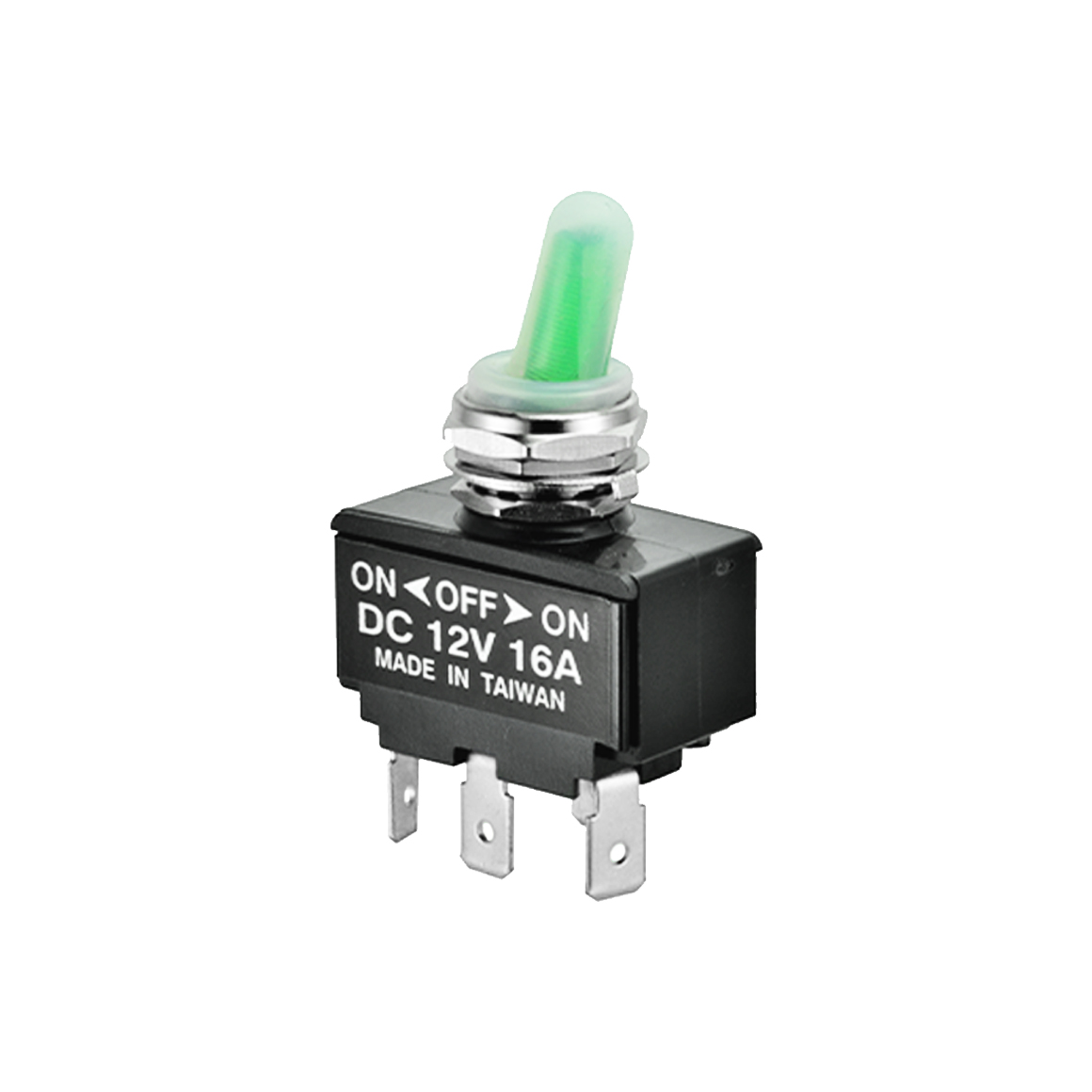

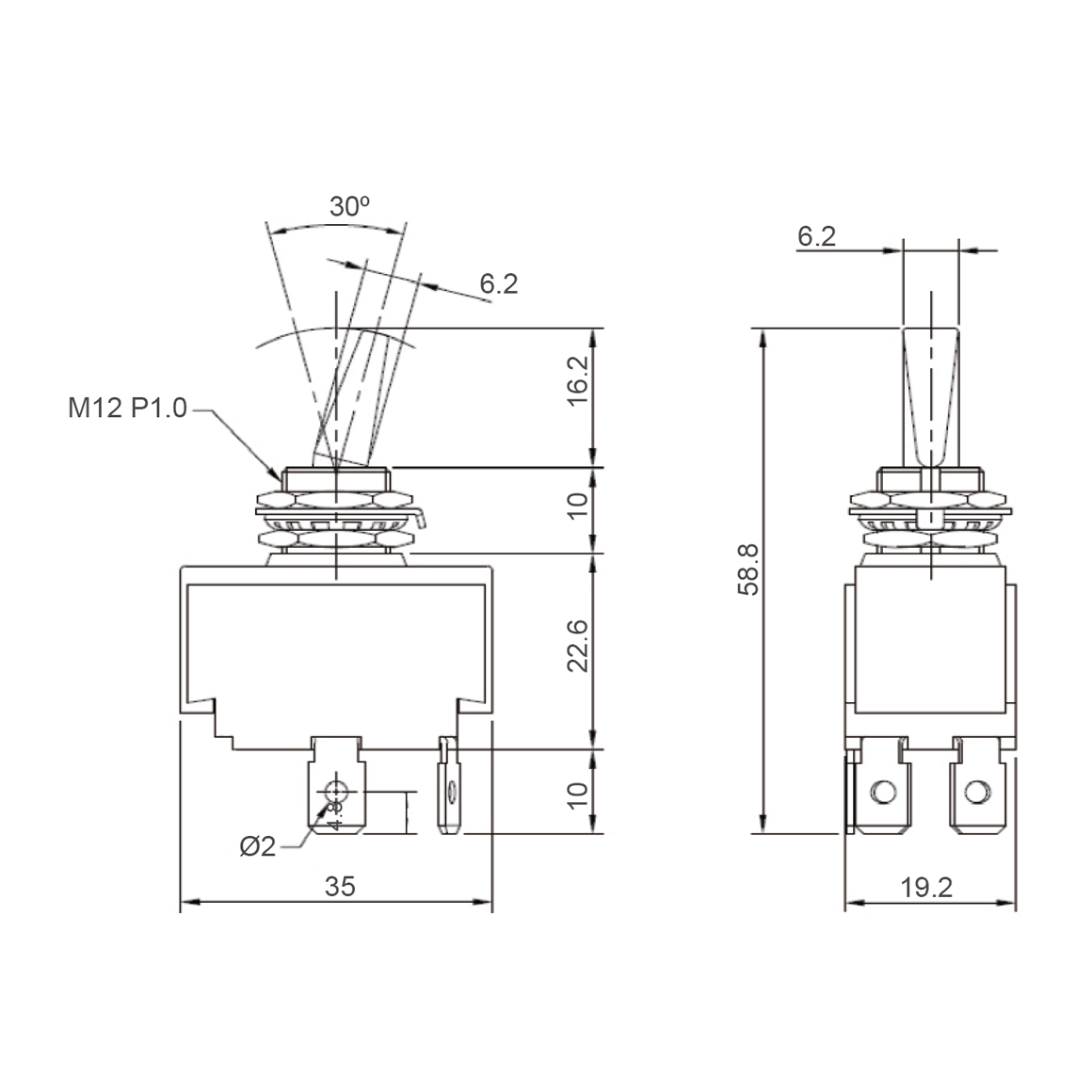

TOGGLE SWITCH - PC TERMINALS
Polycarbonate Handle Bar
Bakelite Switch Body
- Self-illuminating handle bar.
- Rating: DC 12V 16A / 24V 10A.
- Contact R.: 50mΩ Max.
- Insulation R.: DC 500V 100MΩ Min.
- Dielectric strength: AC 1500V 1 minute.
- Electrical Life: 20,000 make and break cycles at full load.
- Rubber boot (0402067) is included (screw nuts: M12).
Bakelite Switch Body
- Self-illuminating handle bar.
- Rating: DC 12V 16A / 24V 10A.
- Contact R.: 50mΩ Max.
- Insulation R.: DC 500V 100MΩ Min.
- Dielectric strength: AC 1500V 1 minute.
- Electrical Life: 20,000 make and break cycles at full load.
- Rubber boot (0402067) is included (screw nuts: M12).
Qty
Qty
Qty
Qty
Qty
-
(ON): MomentaryBulk No.
Type
Terminal
Switch
0402051 SPST 3P ON-OFF 0402052 SPST 3P (ON)-OFF 0402055 SPDT 4P ON-OFF-ON 0402057 SPDT 4P (ON)-OFF-ON 0402061 SPDT 5P ON-OFF-ON
0402061:Tri- color illuminated switch. ON
OFF
ON
