PUSH PULL SWITCH
- Contant resistance: 20mΩ Max (initial).
- Rating: DC 12V 15A .
- Insulation:100MΩ Min. (at 500V DC).
- Dielectric strength:
- AC 1,500V 50 / 60Hz for 1 minute.
- Pull on / push off.
- Rating: DC 12V 15A .
- Insulation:100MΩ Min. (at 500V DC).
- Dielectric strength:
- AC 1,500V 50 / 60Hz for 1 minute.
- Pull on / push off.
Qty
Qty
-
Bulk No.

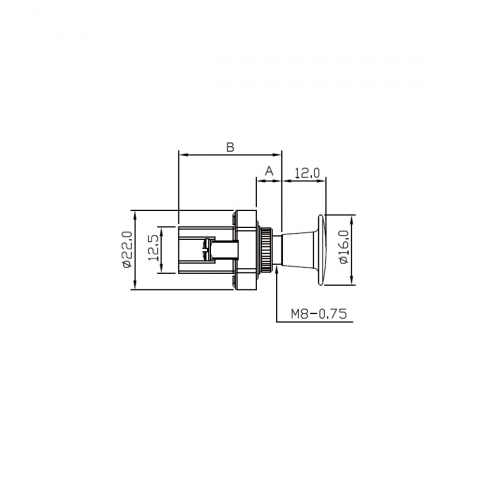

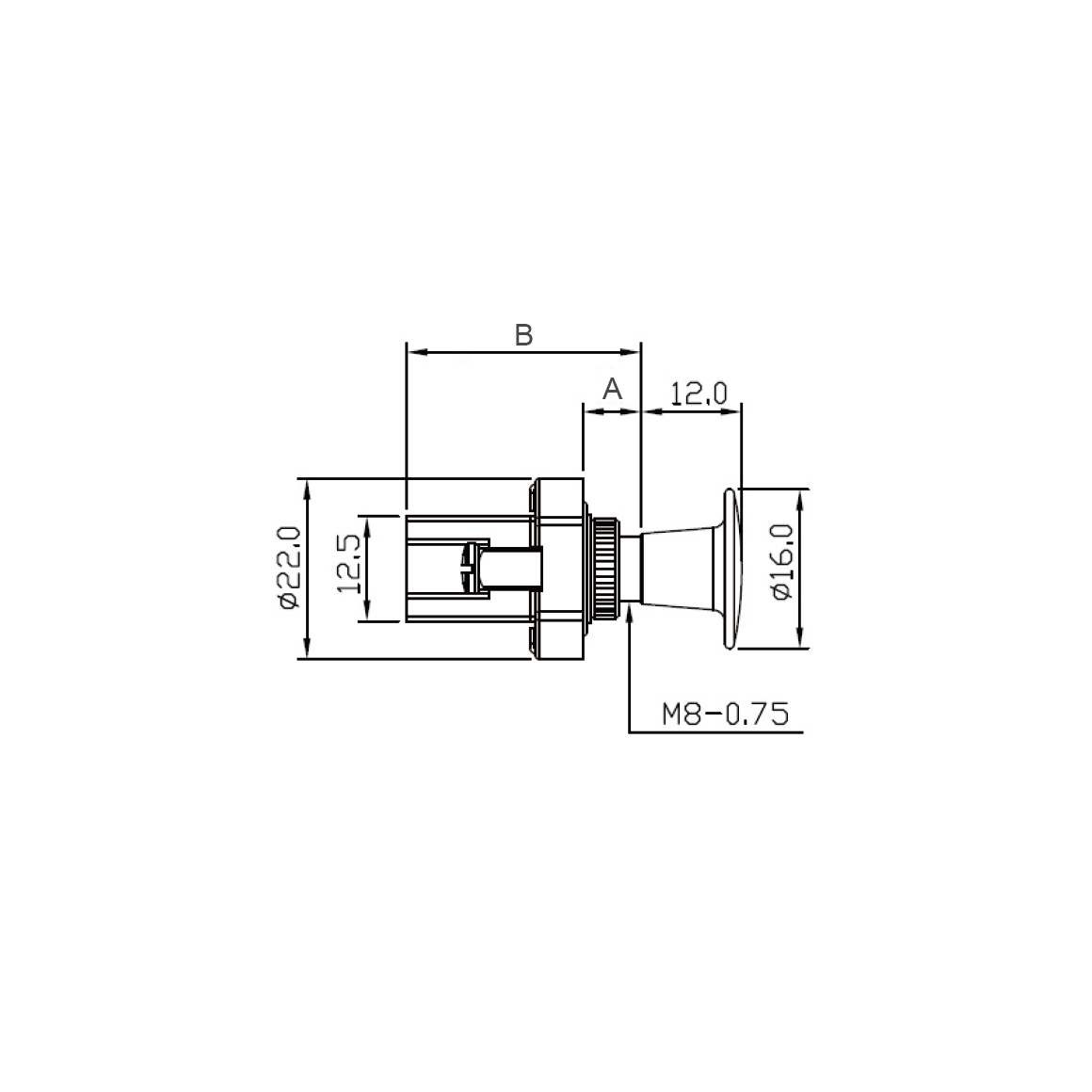

A mm
B mm

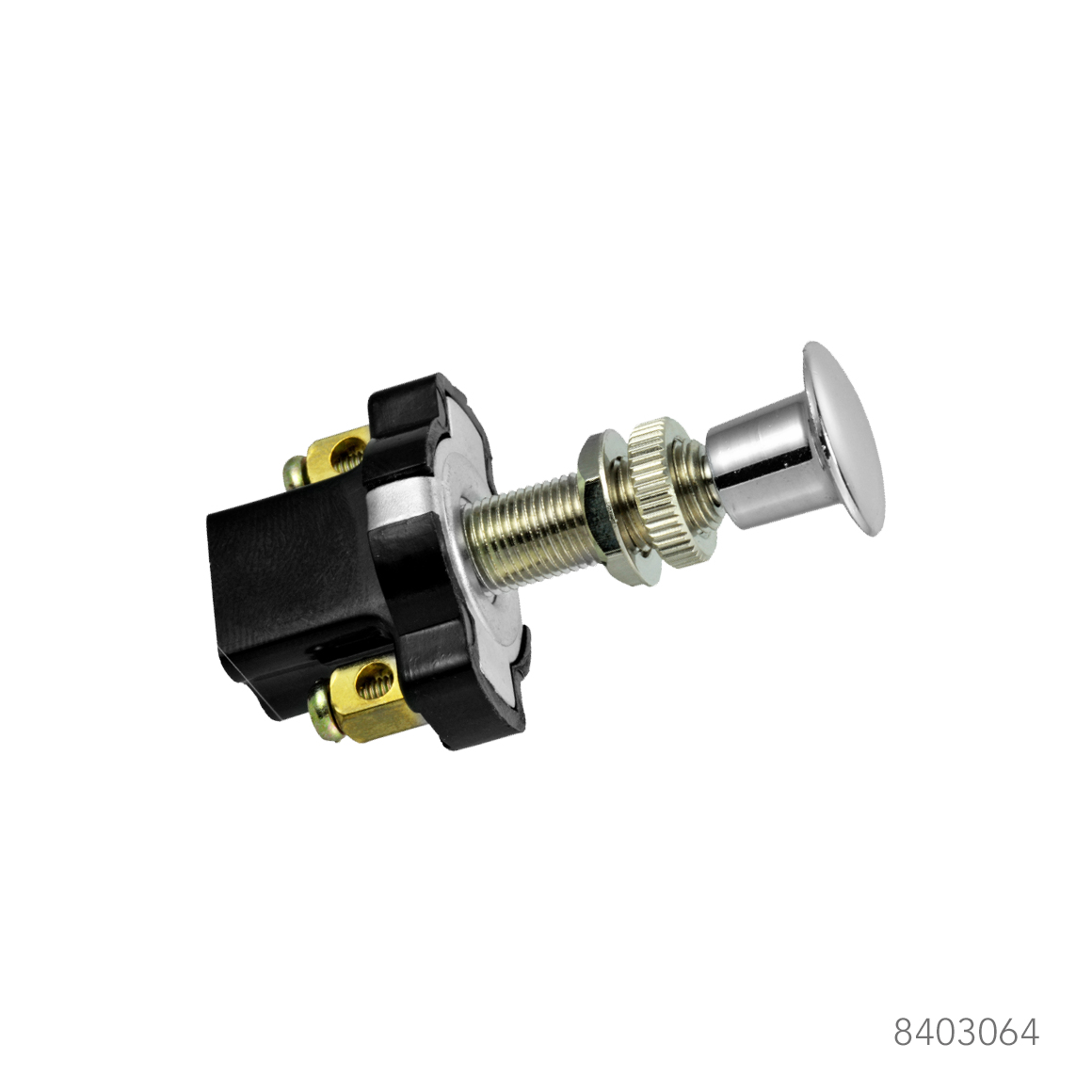

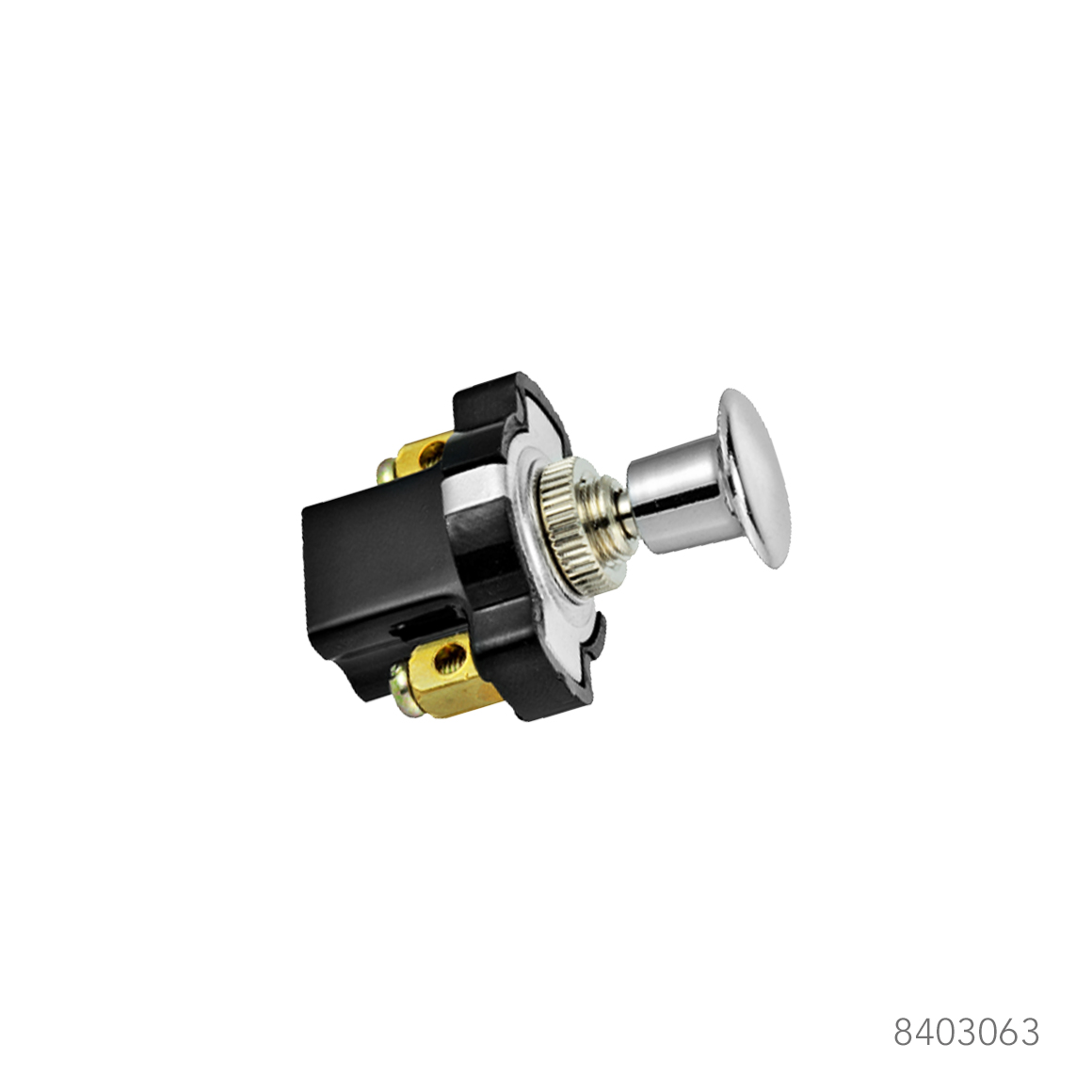

8403063 7 27.7 8403064 20 41.2
