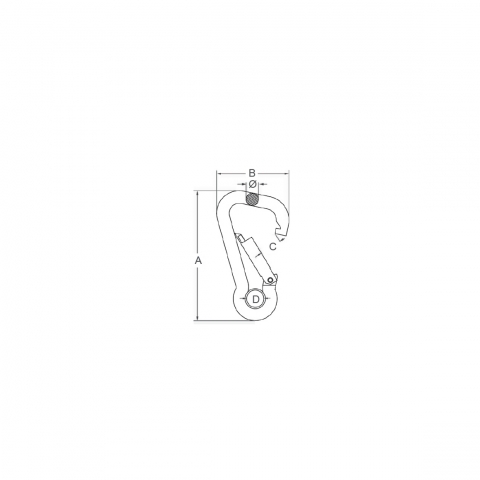

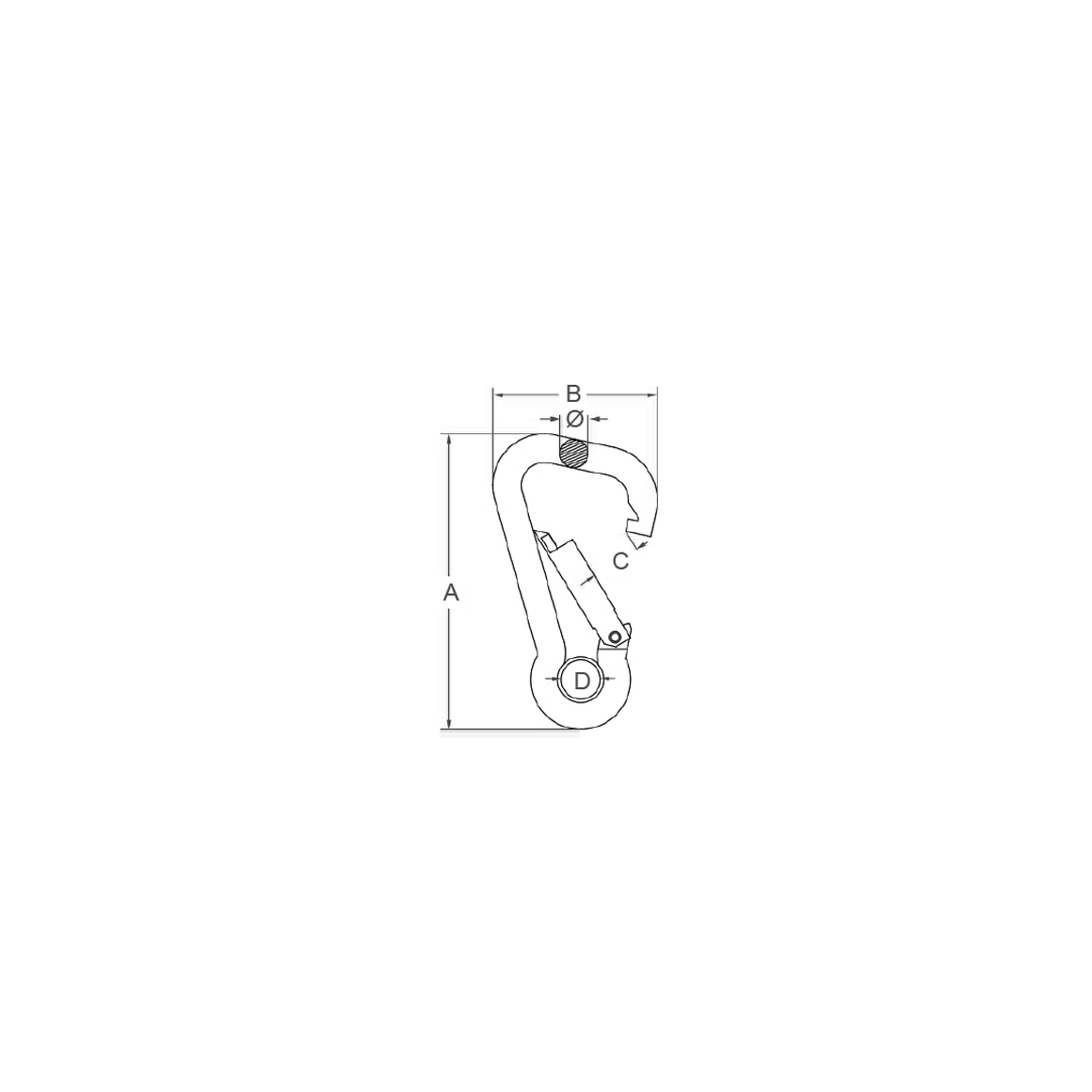

Bulk No.
Ø mm
A mm
B mm
C mm
D mm
SWL kg
S2450X-0050 5 50 26.5 7 7.8 55 S2450X-0060 6 60 30 7.5 7.8 68 S2450X-0080 8 80 40.5 10 10.8 127 S2450X-0100 10 100 50 12 14 182 S2450X-0120 12 140 64 21 20 227
Bulk No. |
Ø mm |
A mm |
B mm |
C mm |
D mm |
SWL kg |
| S2450X-0050 | 5 | 50 | 26.5 | 7 | 7.8 | 55 |
| S2450X-0060 | 6 | 60 | 30 | 7.5 | 7.8 | 68 |
| S2450X-0080 | 8 | 80 | 40.5 | 10 | 10.8 | 127 |
| S2450X-0100 | 10 | 100 | 50 | 12 | 14 | 182 |
| S2450X-0120 | 12 | 140 | 64 | 21 | 20 | 227 |
