0° POP-OUT DECK FILL
Stainless Steel 316

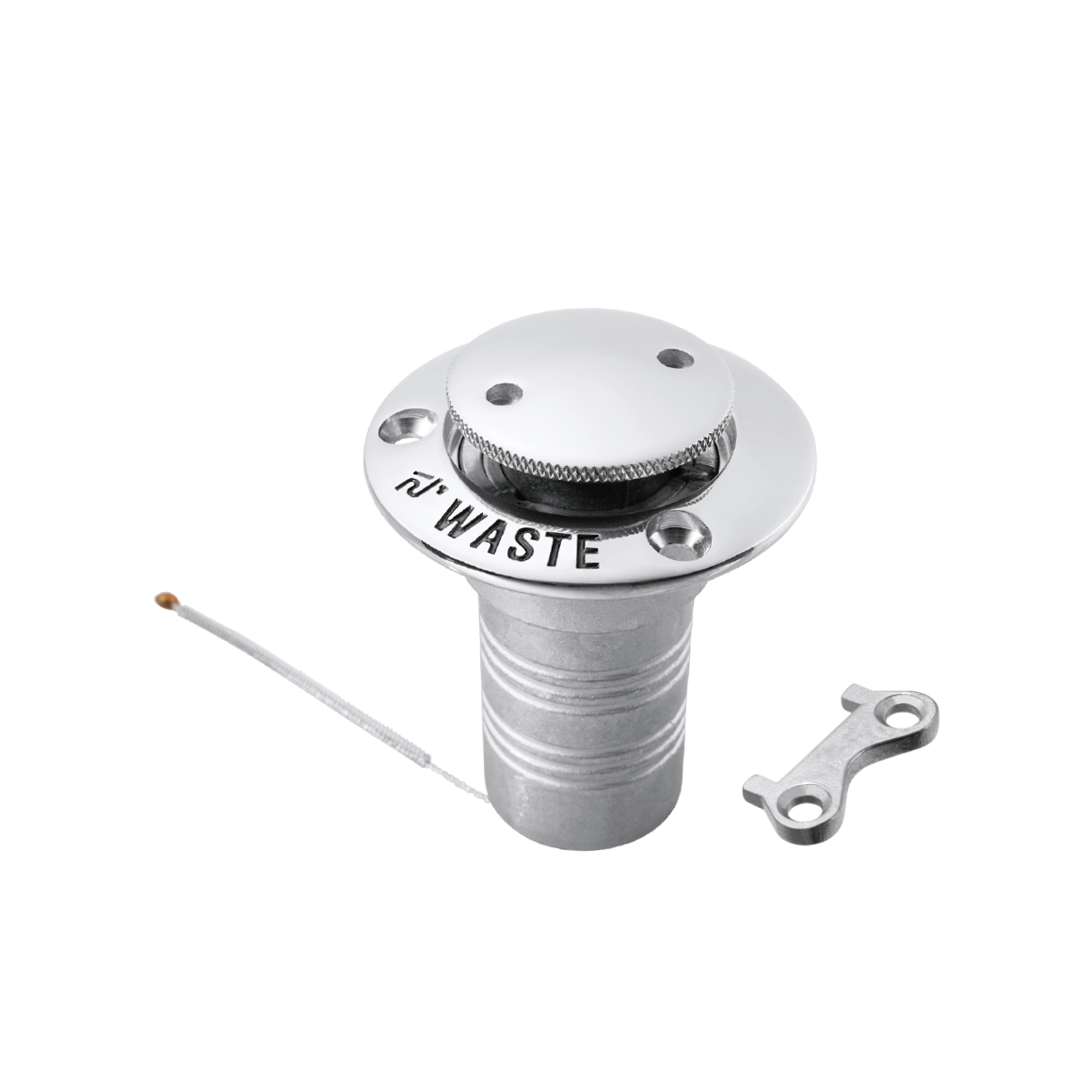

- Keyless pop-out cap is linked with a stainless steel 304 spring-loaded security cable.
- Color-coded international symbol with engraved lettering.
- 48mm (1-7/8") installation hole is required for the 38mm (1-1/2") fill.
- 56mm (2-1/4") installation hole is required for the 51mm (2") fill.
- Screw size M5 or #10.

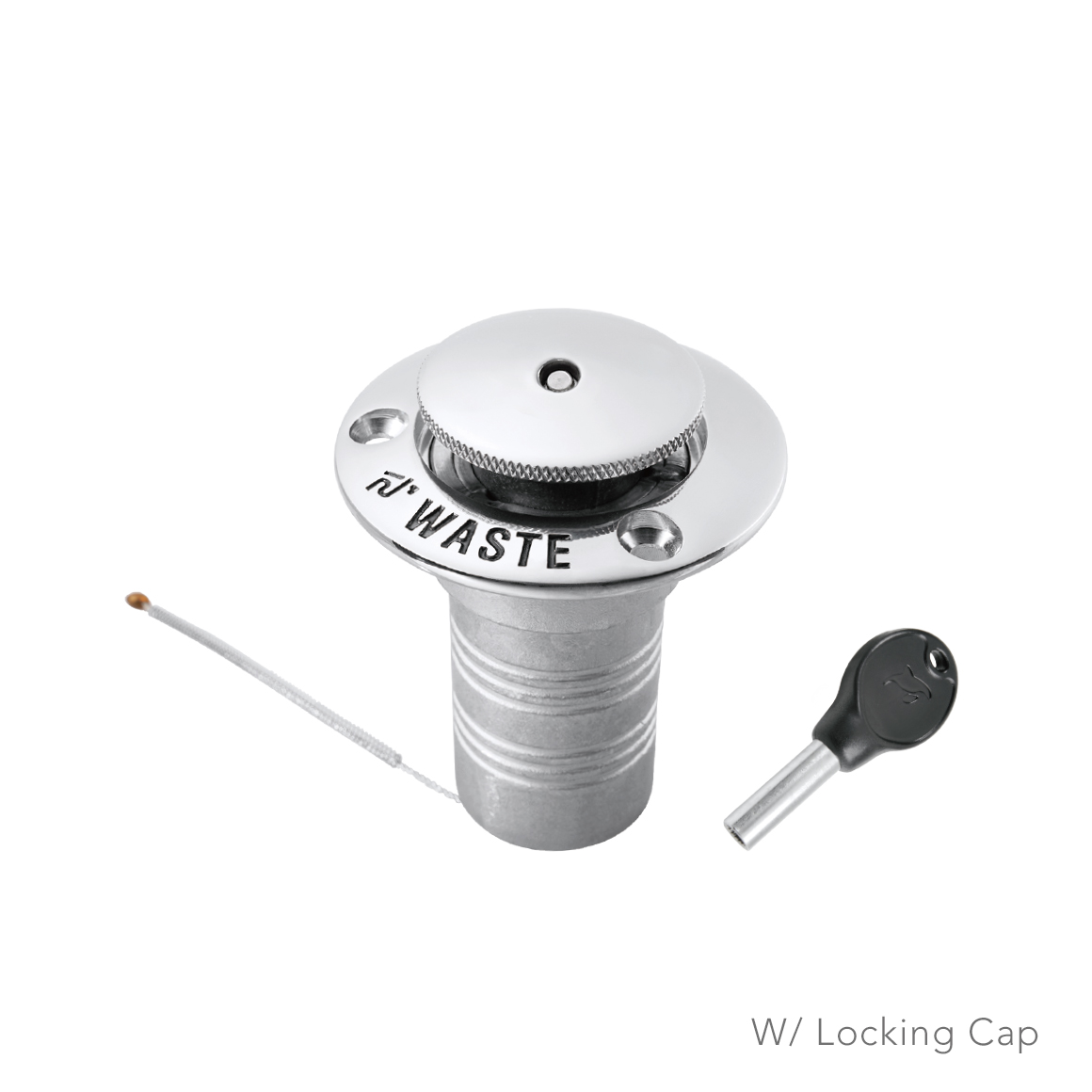

- For locking cap option, add the letter "-L" after bulk no.
- Keyless pop-out cap is linked with a stainless steel 304 spring-loaded security cable.
- Color-coded international symbol with engraved lettering.
- 48mm (1-7/8") installation hole is required for the 38mm (1-1/2") fill.
- 56mm (2-1/4") installation hole is required for the 51mm (2") fill.
- Screw size M5 or #10.
- For locking cap option, add the letter "-L" after bulk no.
Qty
Qty
Qty
MOQ
Qty
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
-

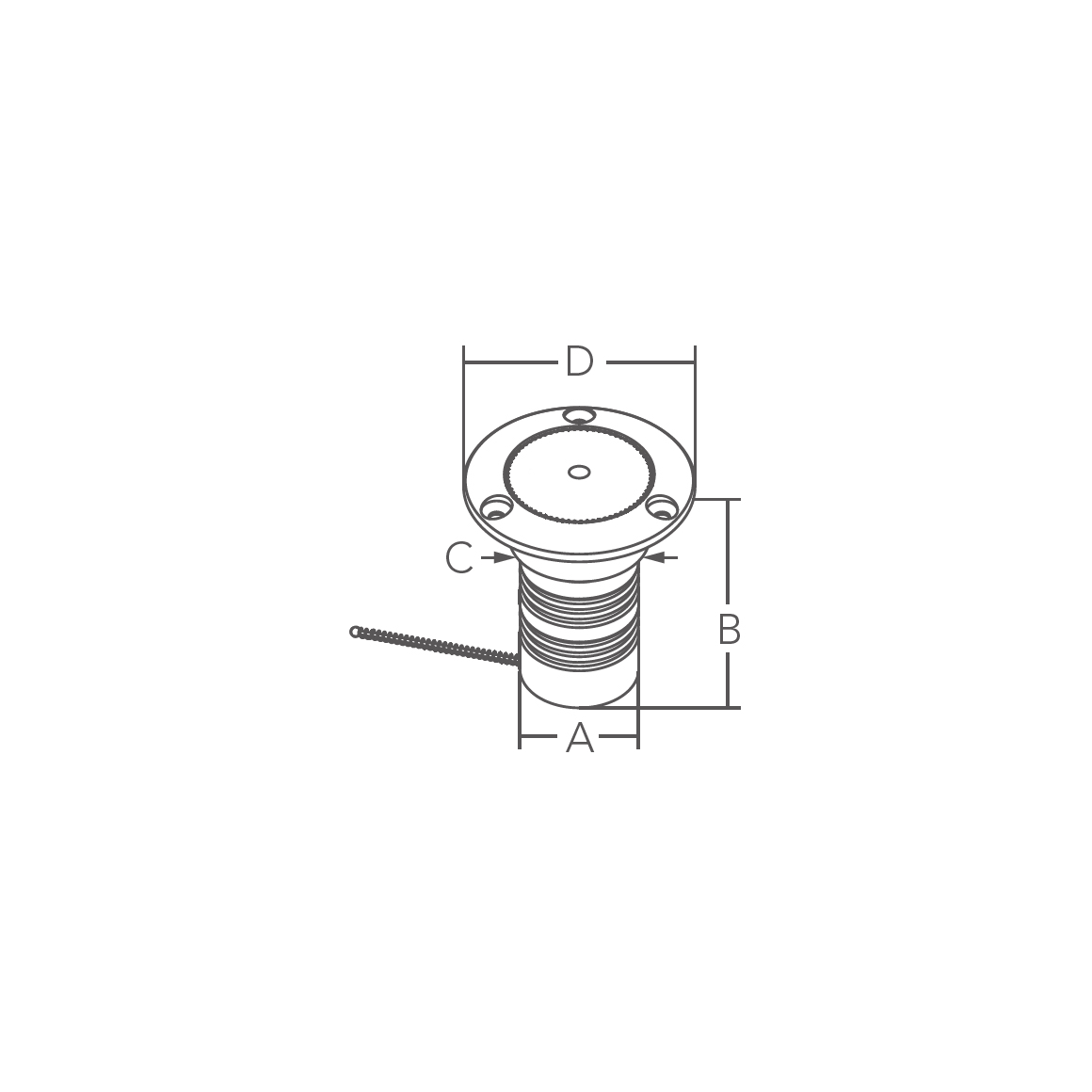

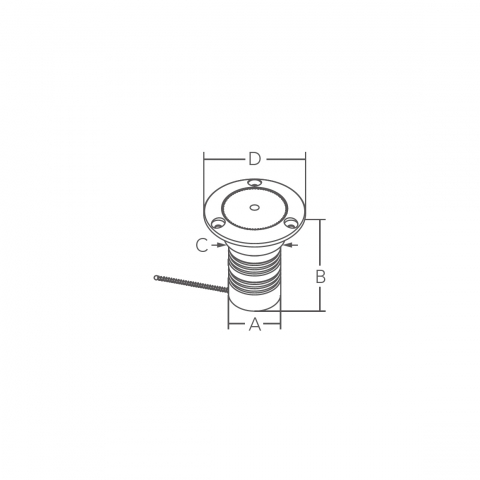

Bulk No.
Model
A mm
B mm
C mm
D mm
8807201 Water 38(1-1/2") 76(3") 45(1-3/4") 74(2-15/16") 8807202 Waste 38(1-1/2") 76(3") 45(1-3/4") 74(2-15/16") 8807203 Gas 38(1-1/2") 76(3") 45(1-3/4") 74(2-15/16") 8807204 Diesel 38(1-1/2") 76(3") 45(1-3/4") 74(2-15/16") 8807205 Fuel 38(1-1/2") 76(3") 45(1-3/4") 74(2-15/16") 8907208 Water 51(2") 76(3") 53(2-1/16") 84(3-5/16") 8907209 Waste 51(2") 76(3") 53(2-1/16") 84(3-5/16") 8907211 Diesel 51(2") 76(3") 53(2-1/16") 84(3-5/16") 8907212 Fuel 51(2") 76(3") 53(2-1/16") 84(3-5/16")
