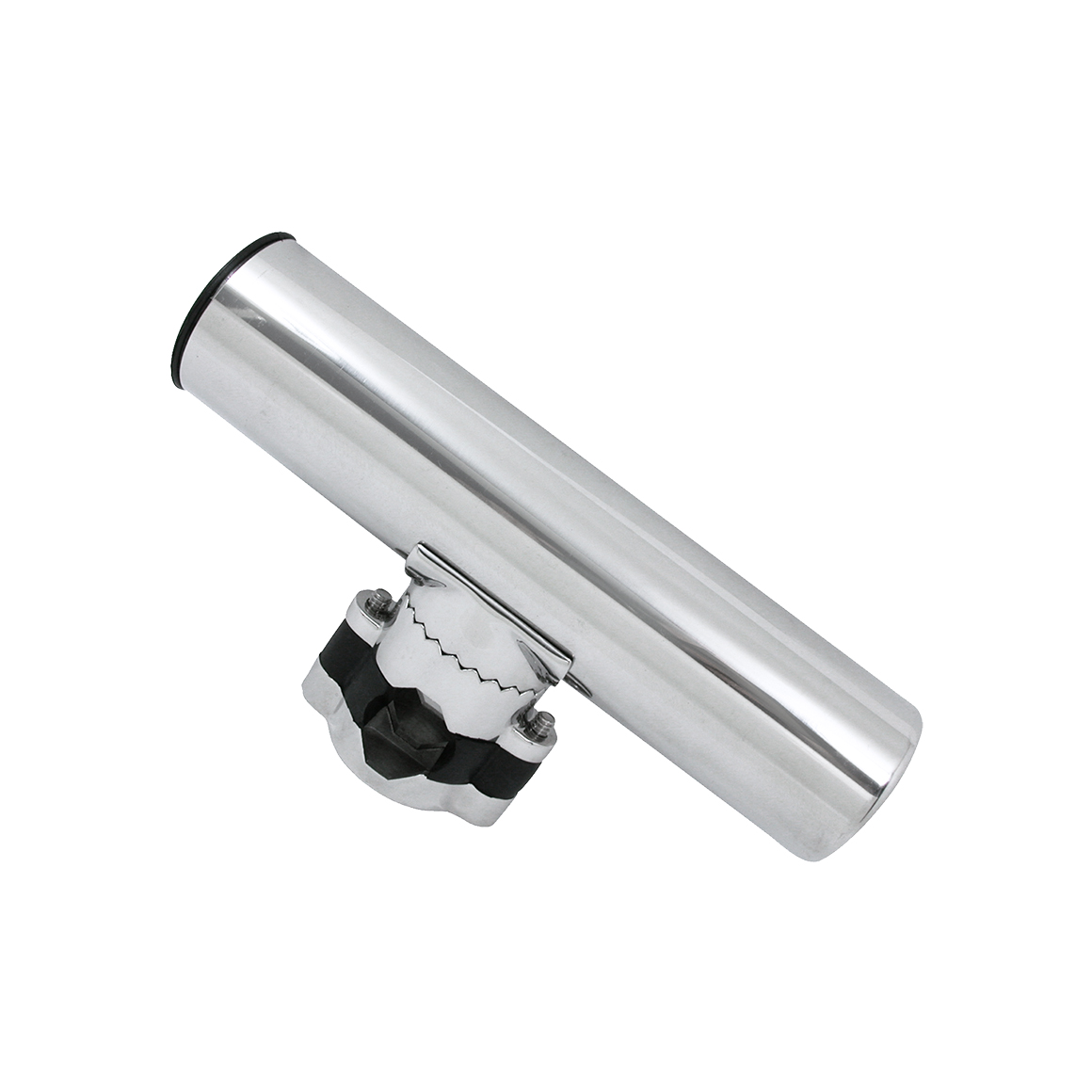

RAIL MOUNT ROD HOLDER
Stainless Steel & Nylon Liner
- Heavy duty construction with SS 316 clamp and SS 304 tube.
- Easily clamps onto rails from 19mm~38mm (3/4''~1-1/2'') in diameter.
- Rubber insert designed for clamping to 25mm (1") rail. For rest rail diameters,
remove rubber insert and clamp directly to the rail.
- Adjustable to any desired angle.
- Full black nylon liner prevents the fishing rod from scratching.
- Installation screws are included.
Caution: Tighten both screws alternatively.
- Heavy duty construction with SS 316 clamp and SS 304 tube.
- Easily clamps onto rails from 19mm~38mm (3/4''~1-1/2'') in diameter.
- Rubber insert designed for clamping to 25mm (1") rail. For rest rail diameters,
remove rubber insert and clamp directly to the rail.
- Adjustable to any desired angle.
- Full black nylon liner prevents the fishing rod from scratching.
- Installation screws are included.
Caution: Tighten both screws alternatively.
Qty
MOQ
-
Bulk No.

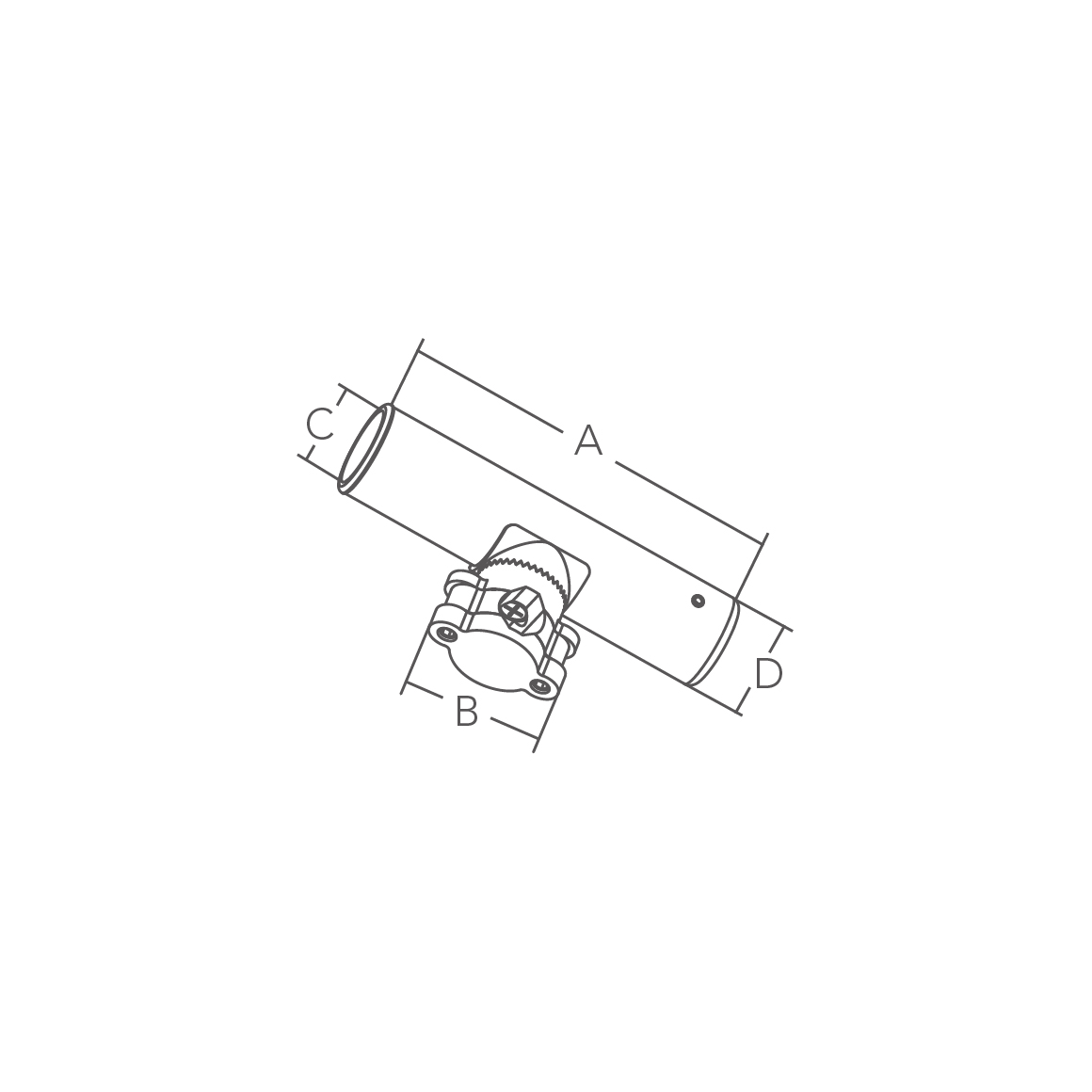

A mm
B mm
C mm
D mm
8829203 214(8-7/16") 69(2-3/4") 42(1-5/8") 51(2")

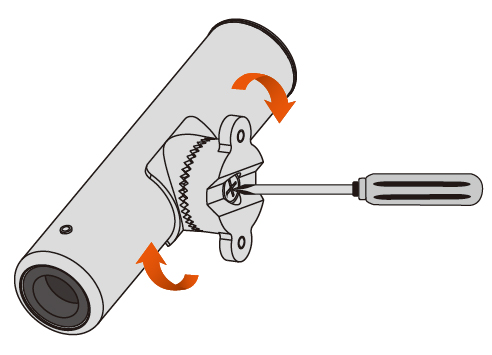

ADJUSTABLE ANGLE
Loosen the center big screw to adjust
the teeth to the desired angle. -
Bulk No.
Download
8829203 Drawing
