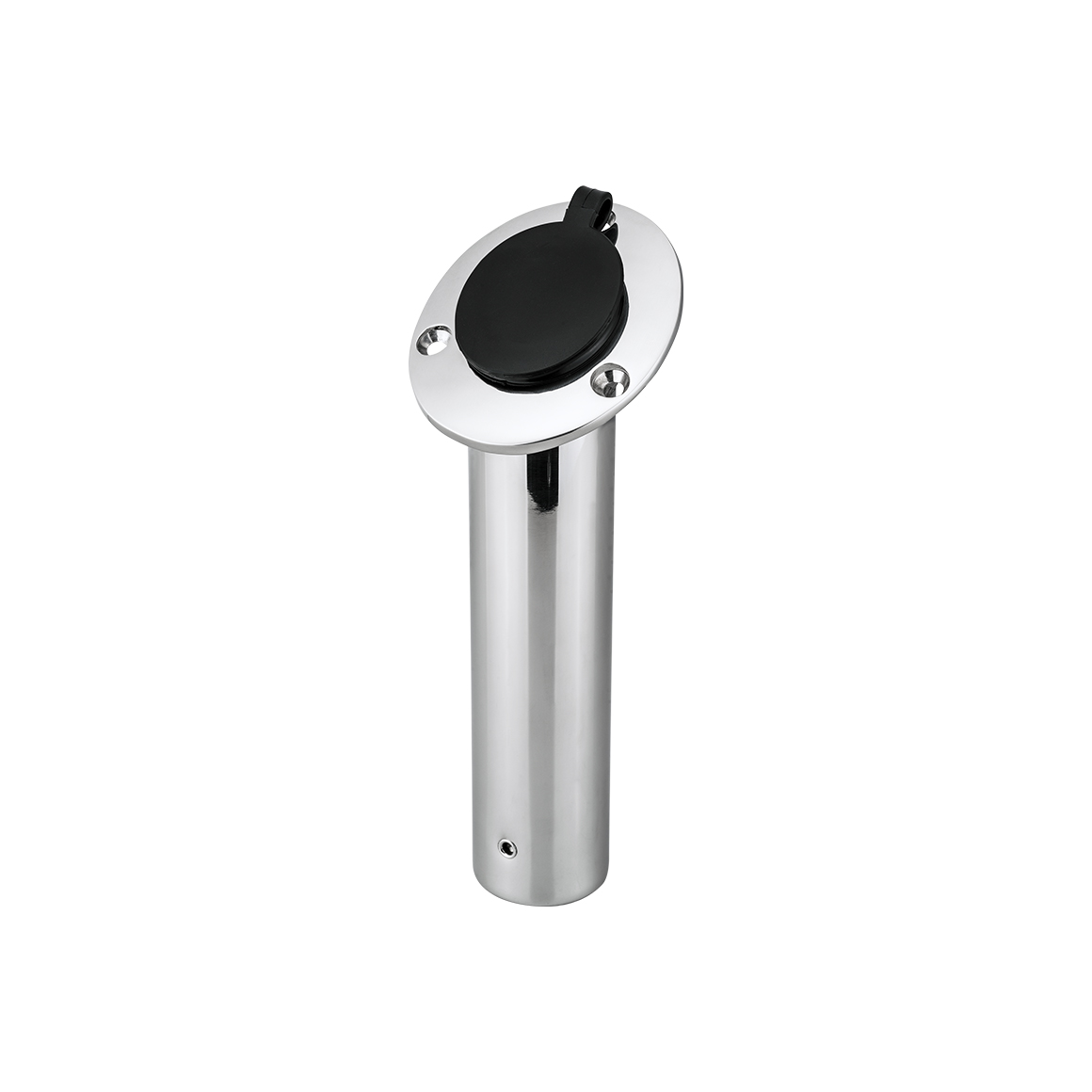

DELUXE ROD HOLDER
Stainless Steel & Nylon Liner
- Combined with marine grade SS 304 tube and heavy duty SS 316 cast flange.

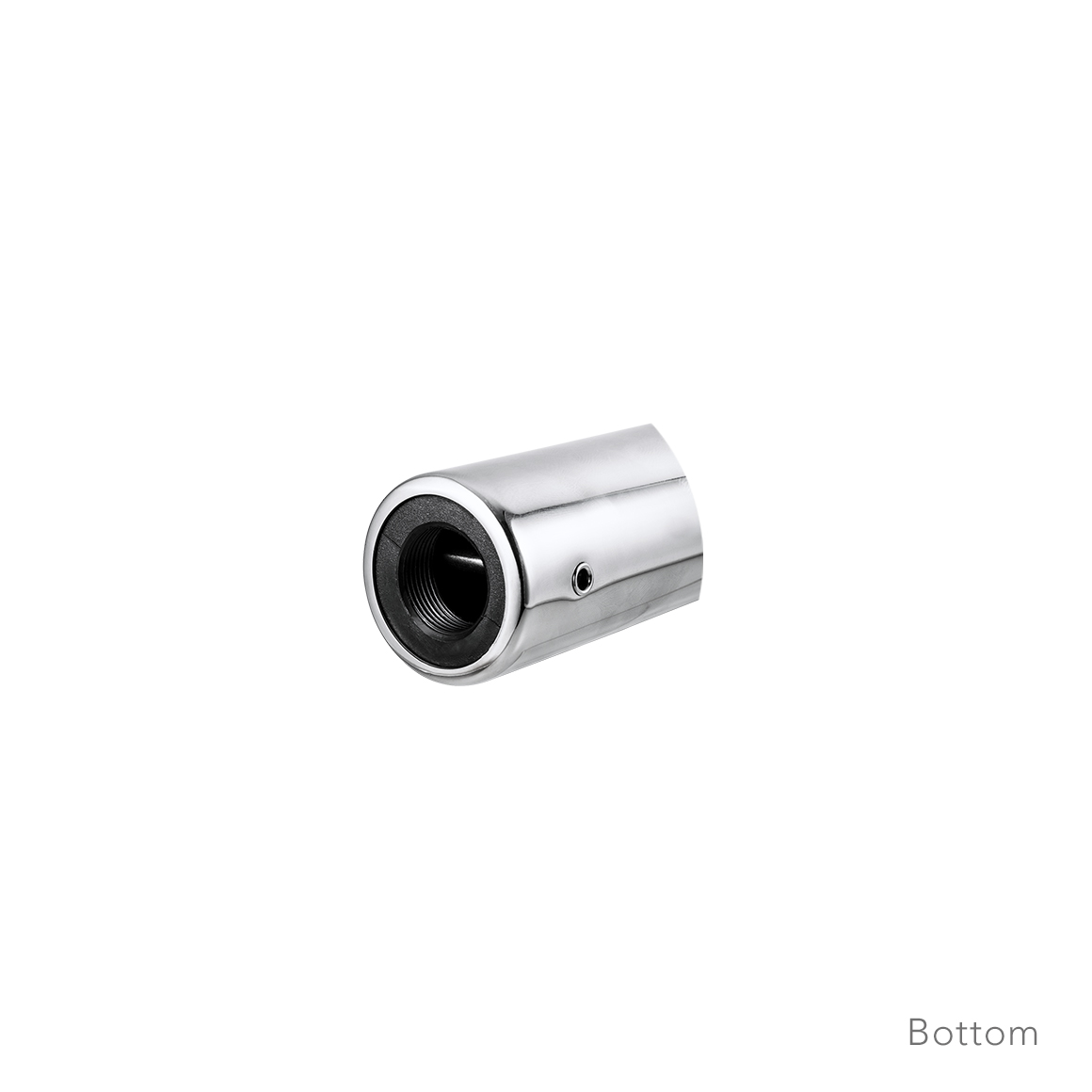

- Full nylon liner with 3/4" NPT thread at the bottom.
- 9510236 is sold separately.
- Screw size M6 or 1/4".
- Combined with marine grade SS 304 tube and heavy duty SS 316 cast flange.
- Full nylon liner with 3/4" NPT thread at the bottom.
- 9510236 is sold separately.
- Screw size M6 or 1/4".
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
-

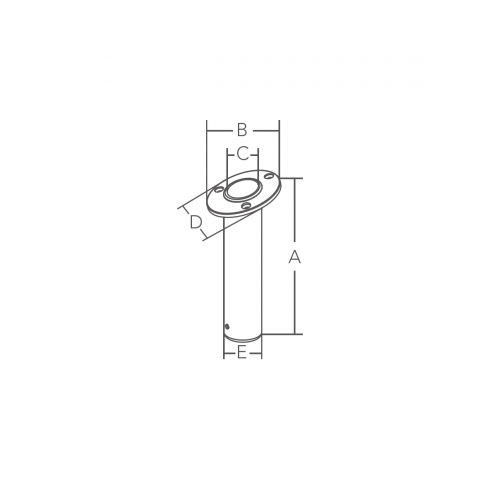

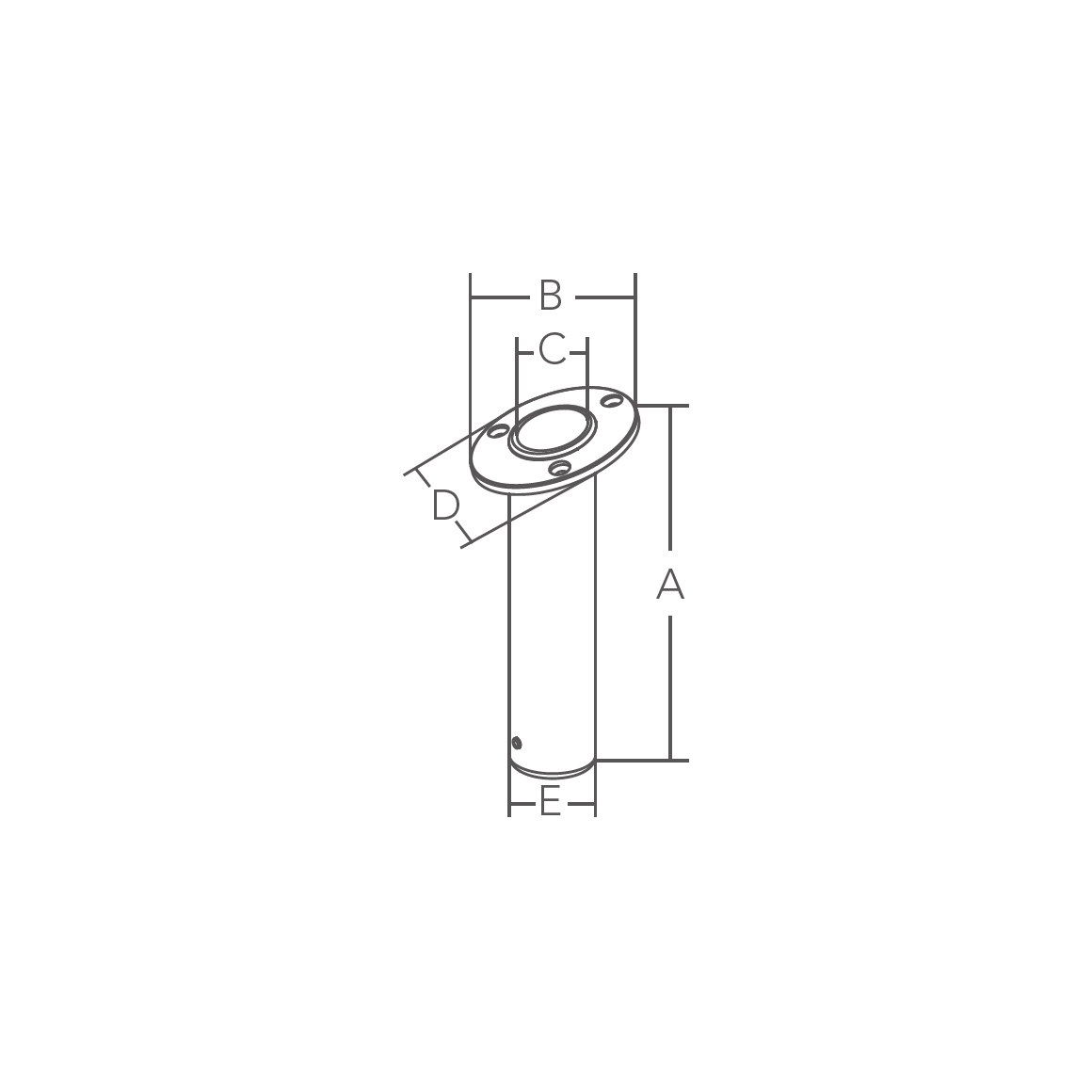

Bulk No.
Angle
A mm
B mm
C mm
D mm
E mm

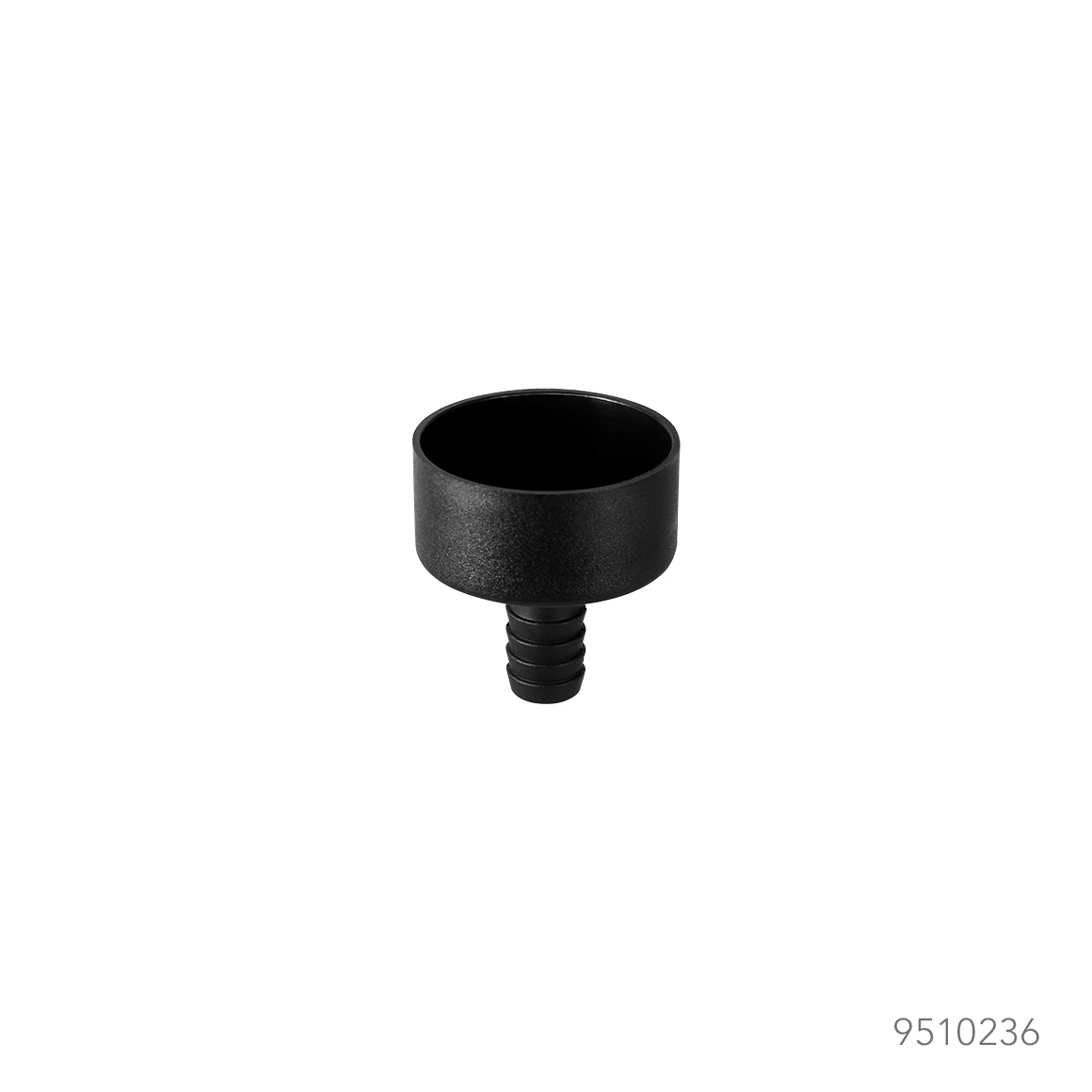

8929204 0° 212(8-3/8") 107(4-3/16") 42(1-5/8") 87(3-7/16") 51(2") 8929205 15° 225(8-7/8") 108(4-1/4") 42(1-5/8") 88(3-7/16") 51(2") 8929206 30° 248(9-3/4") 108(4-1/4") 42(1-5/8") 91(3-9/16") 51(2") 8929207 30° W/ Cap 248(9-3/4") 108(4-1/4") 42(1-5/8") 91(3-9/16") 51(2") 9510236 5/8" Drain Adapter, I.D. 51mm (2")
