SPRING LOADED SLIDE LATCH
Stainless Steel 316 & Nylon Slide

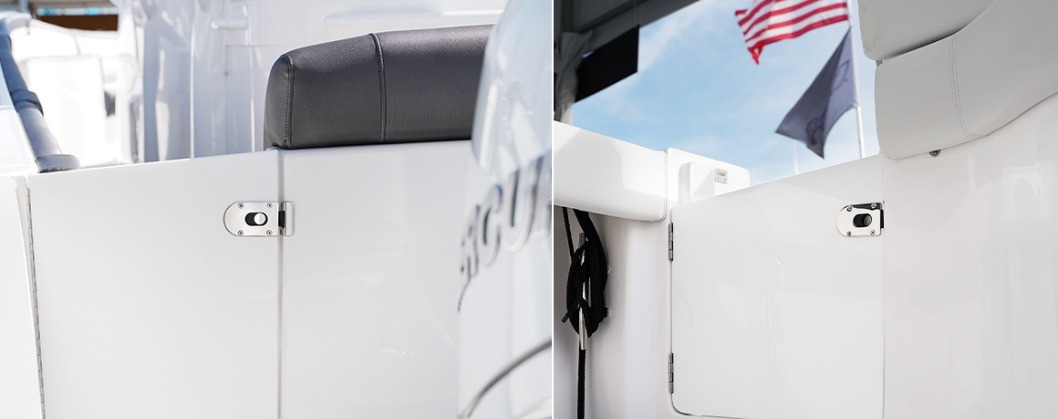

- Simple spring loaded slide latch is well-suited for popular plastic
doors nowadays.
- Adjustable slide is reversible to accommodate out-swing or in-swing doors.

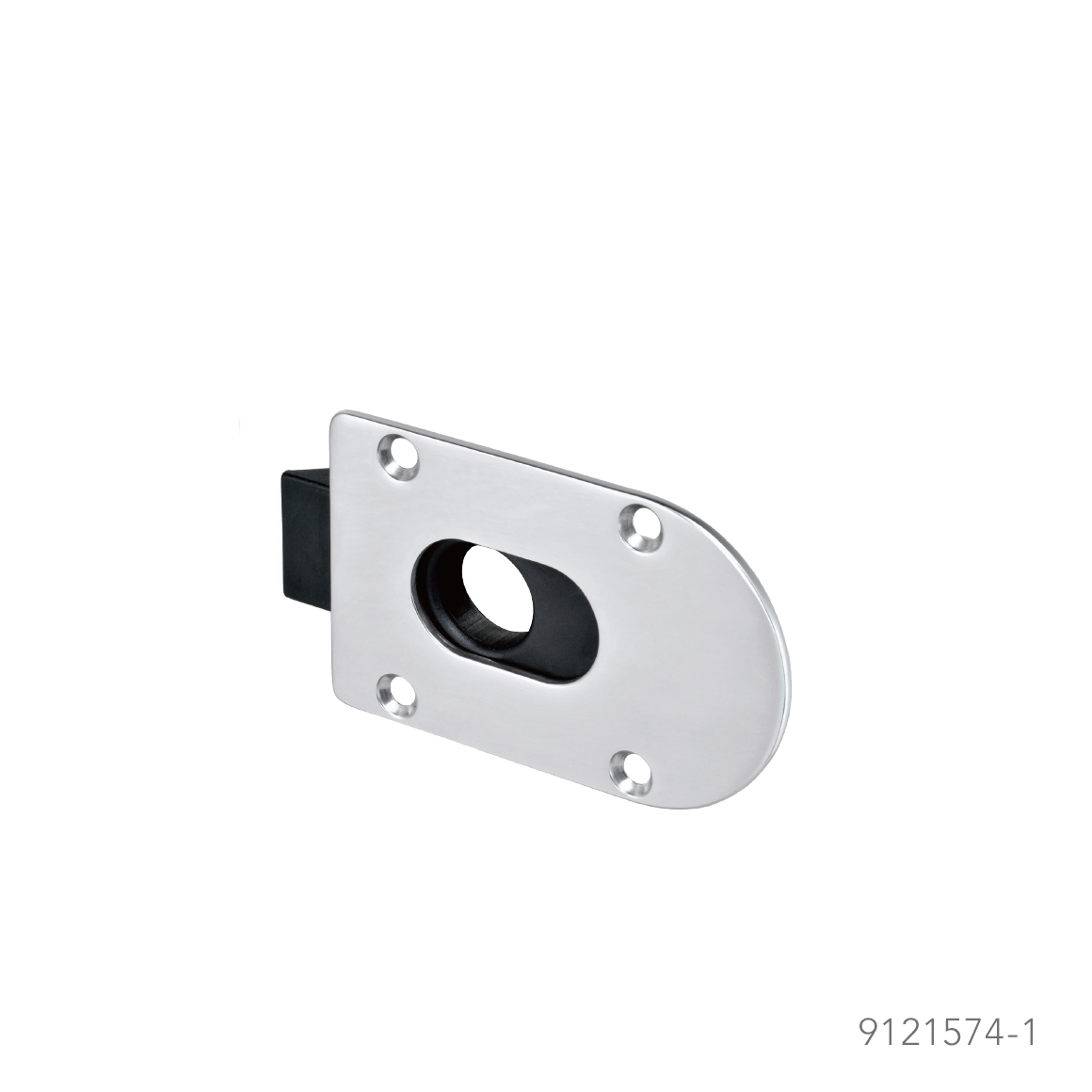

- The latch body (9121574-1) can be paired with multiple strikes to suit various
door setups.

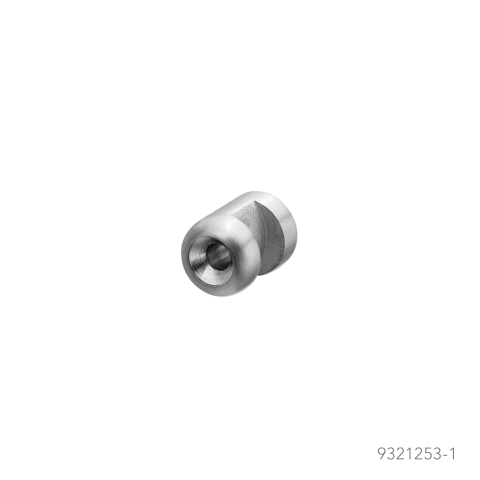

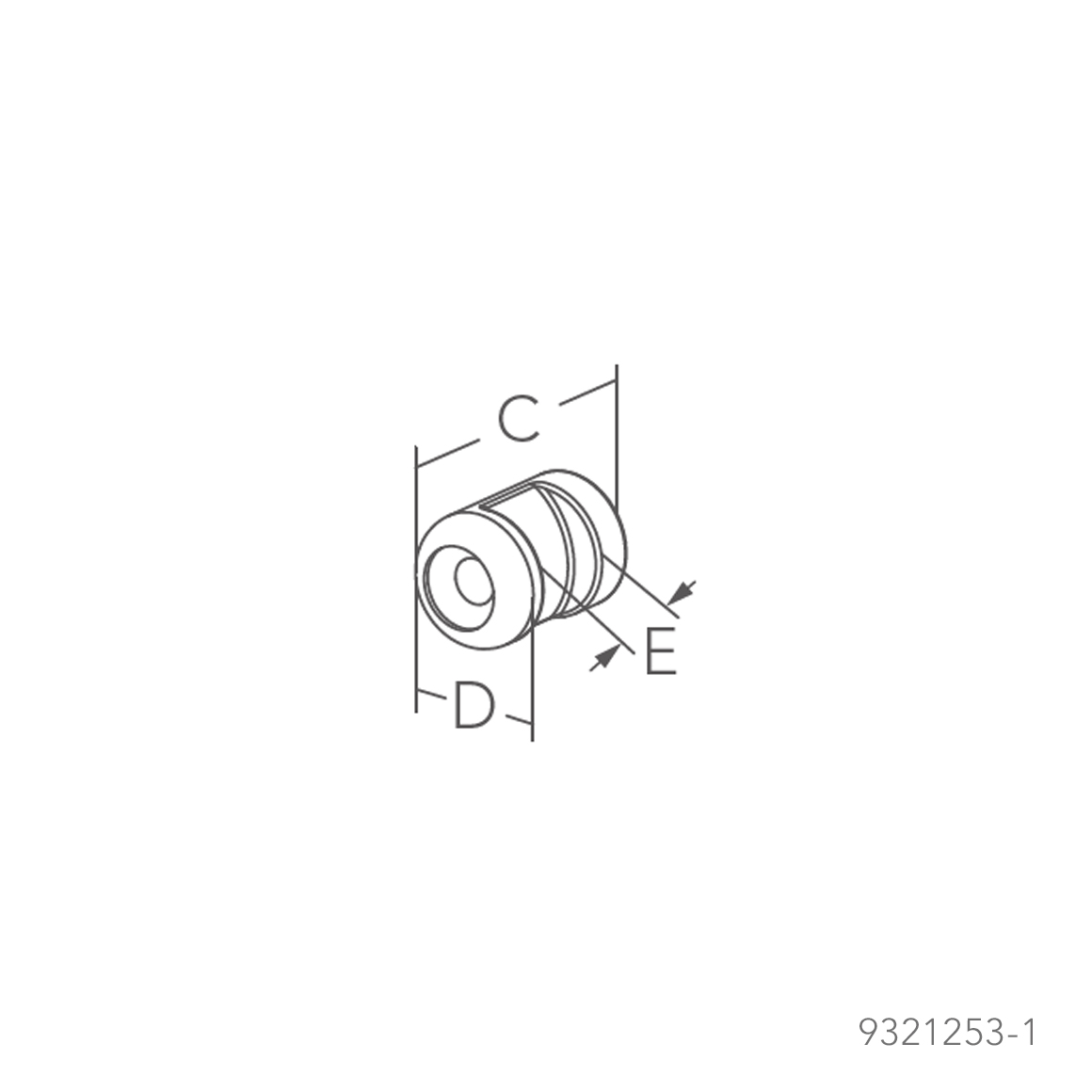

- 9321253-1 is a knob designed to secure the door in the open position.
- Screw size M4 or #8 for 9121574/ -9/ -1, 0307596.
- Screw size M5 or #10 for 9321253-1.
- Stainless steel 304 set screw is included.
- Simple spring loaded slide latch is well-suited for popular plastic
doors nowadays.
- Adjustable slide is reversible to accommodate out-swing or in-swing doors.
- The latch body (9121574-1) can be paired with multiple strikes to suit various
door setups.
- 9321253-1 is a knob designed to secure the door in the open position.

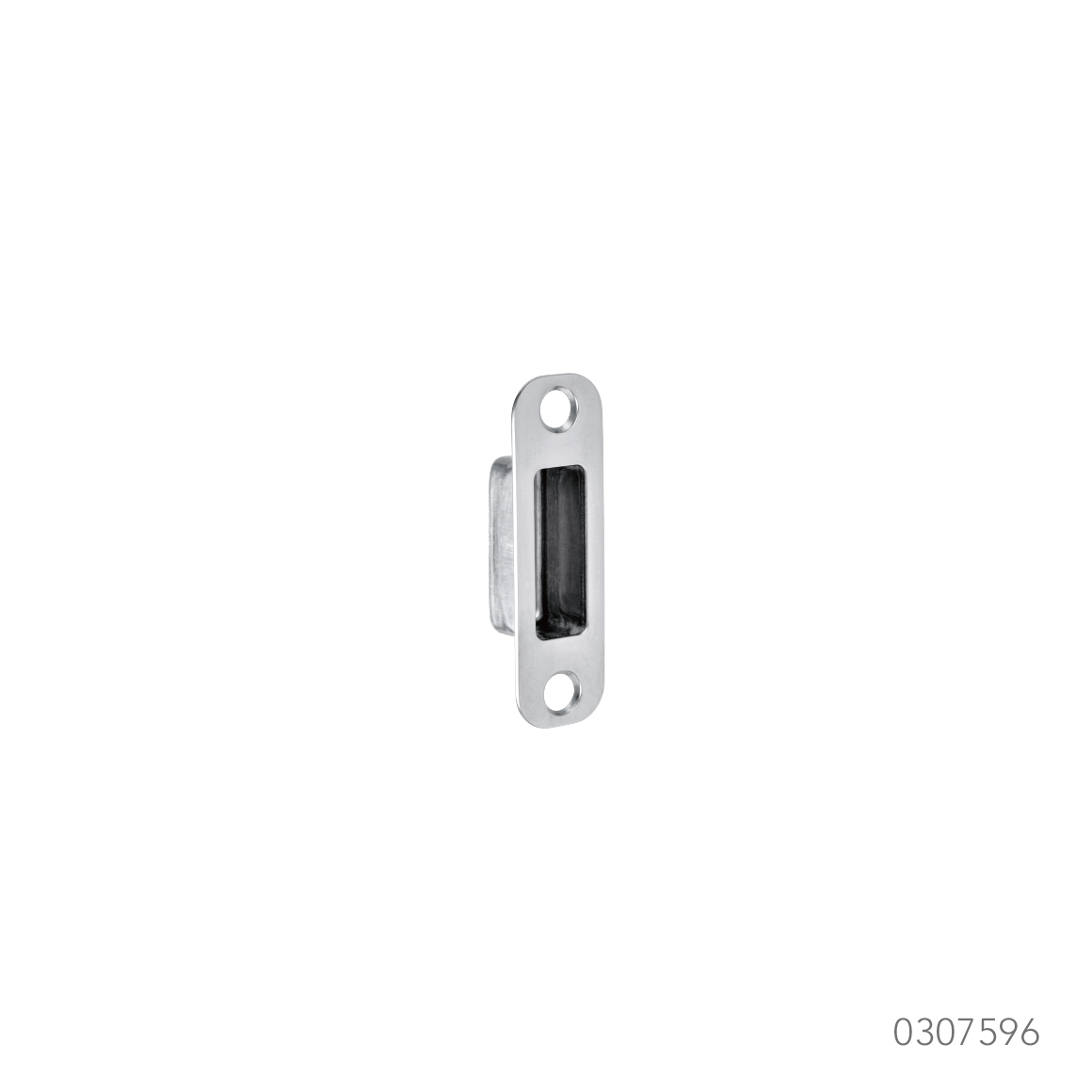

- Screw size M4 or #8 for 9121574/ -9/ -1, 0307596.
- Screw size M5 or #10 for 9321253-1.
- Stainless steel 304 set screw is included.
Qty
Qty
Qty
Qty
Qty
-

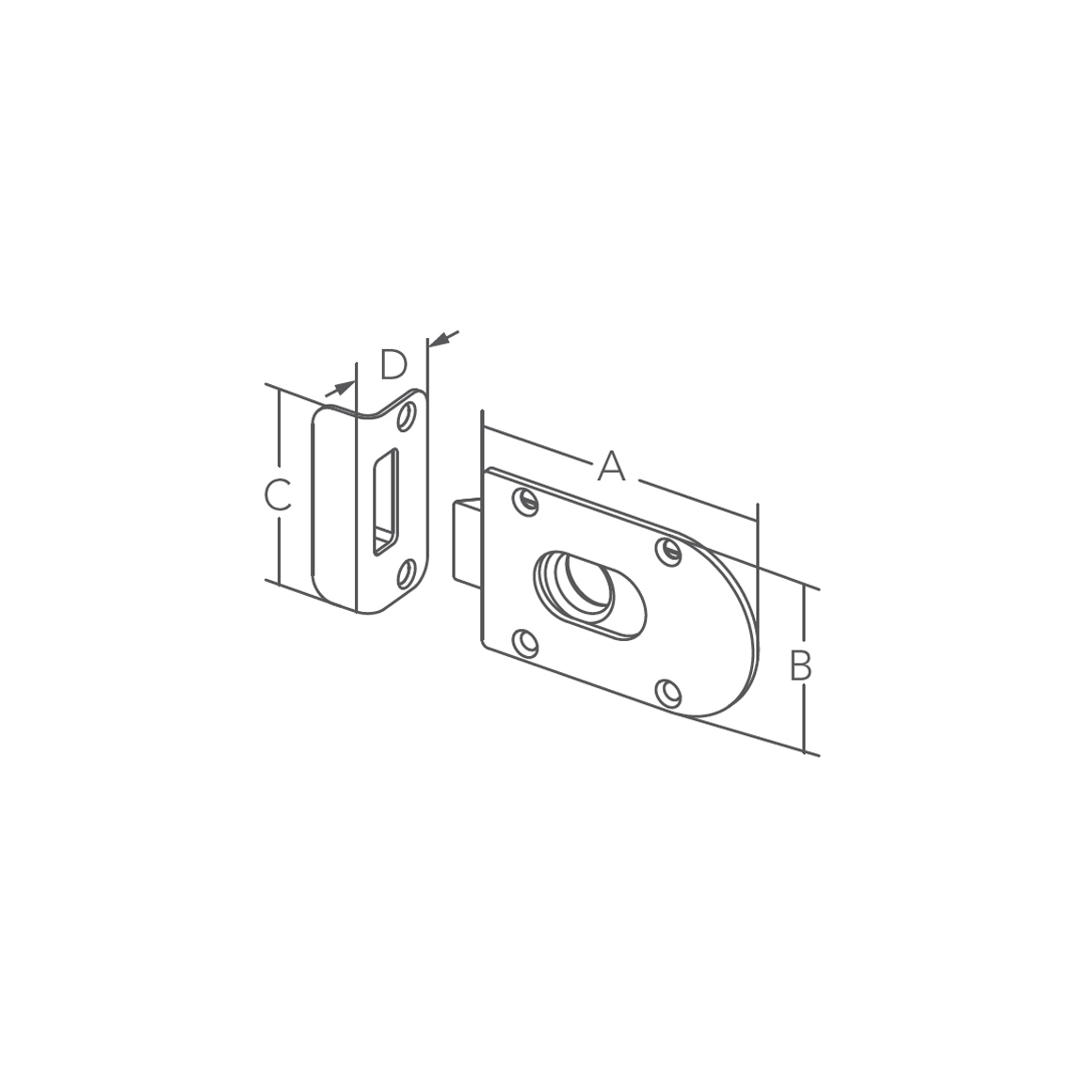

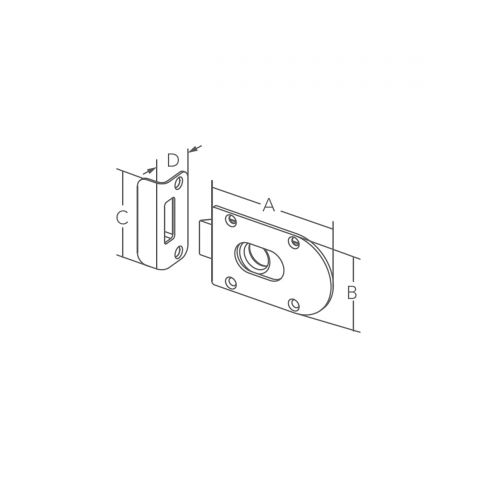

Bulk No.
Strike
A mm
B mm
C mm
D mm
E mm

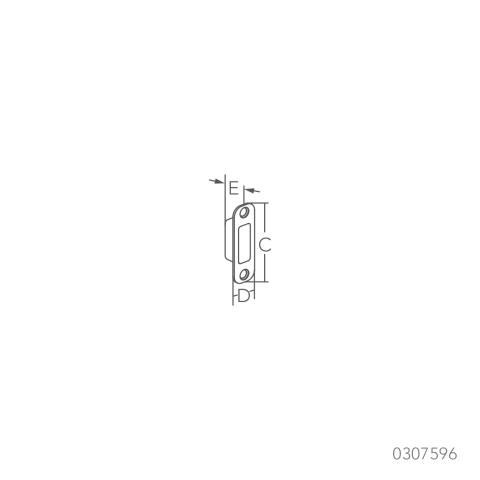

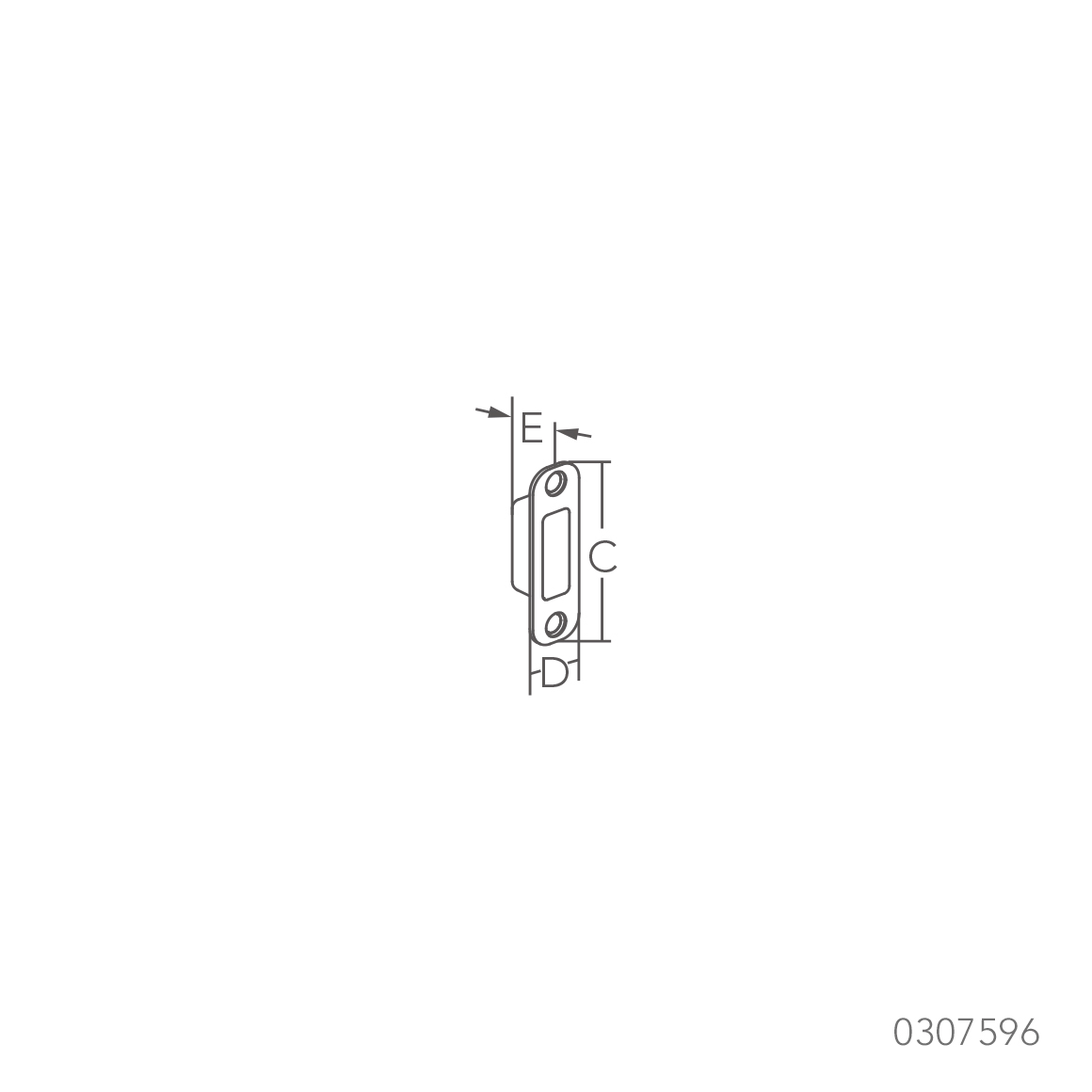

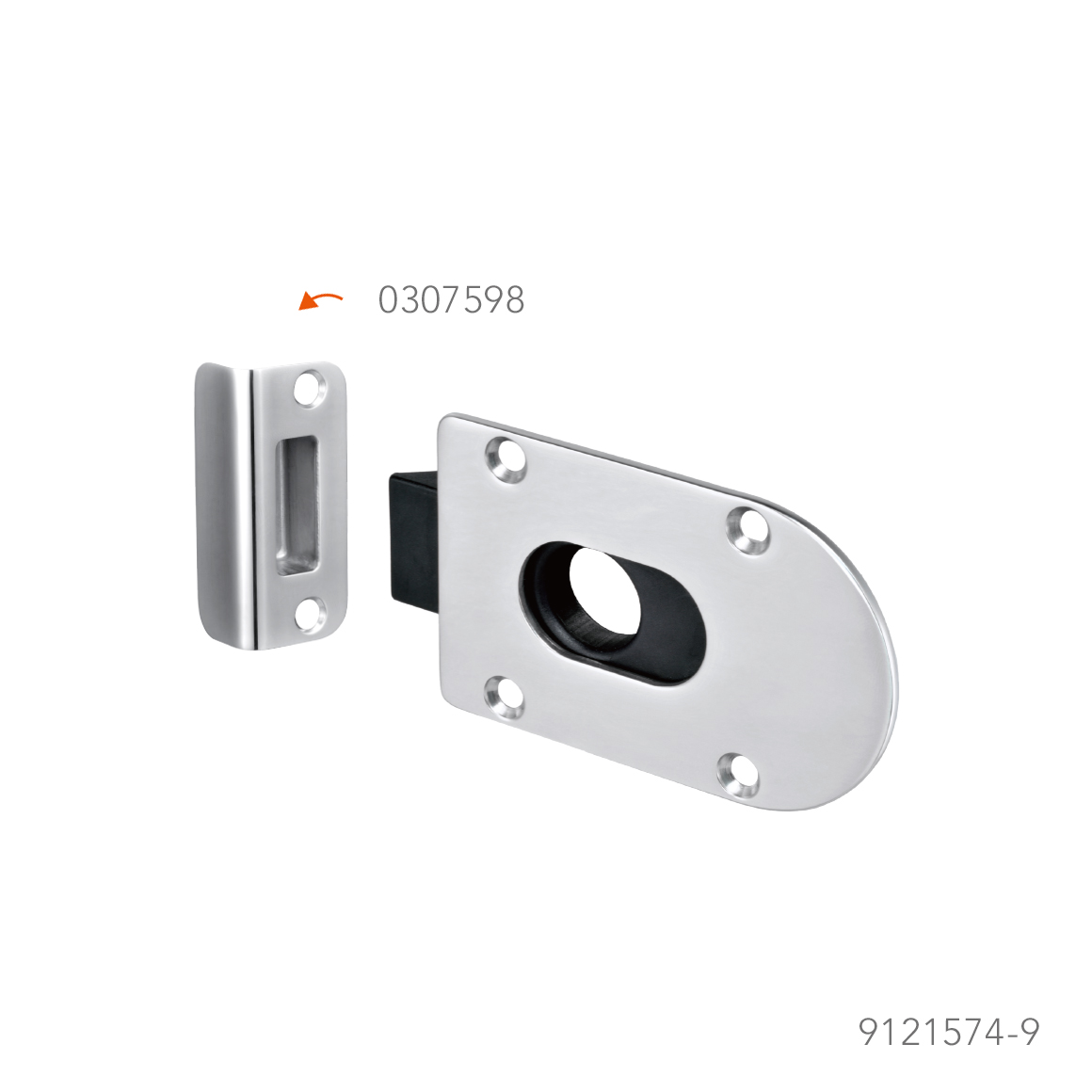

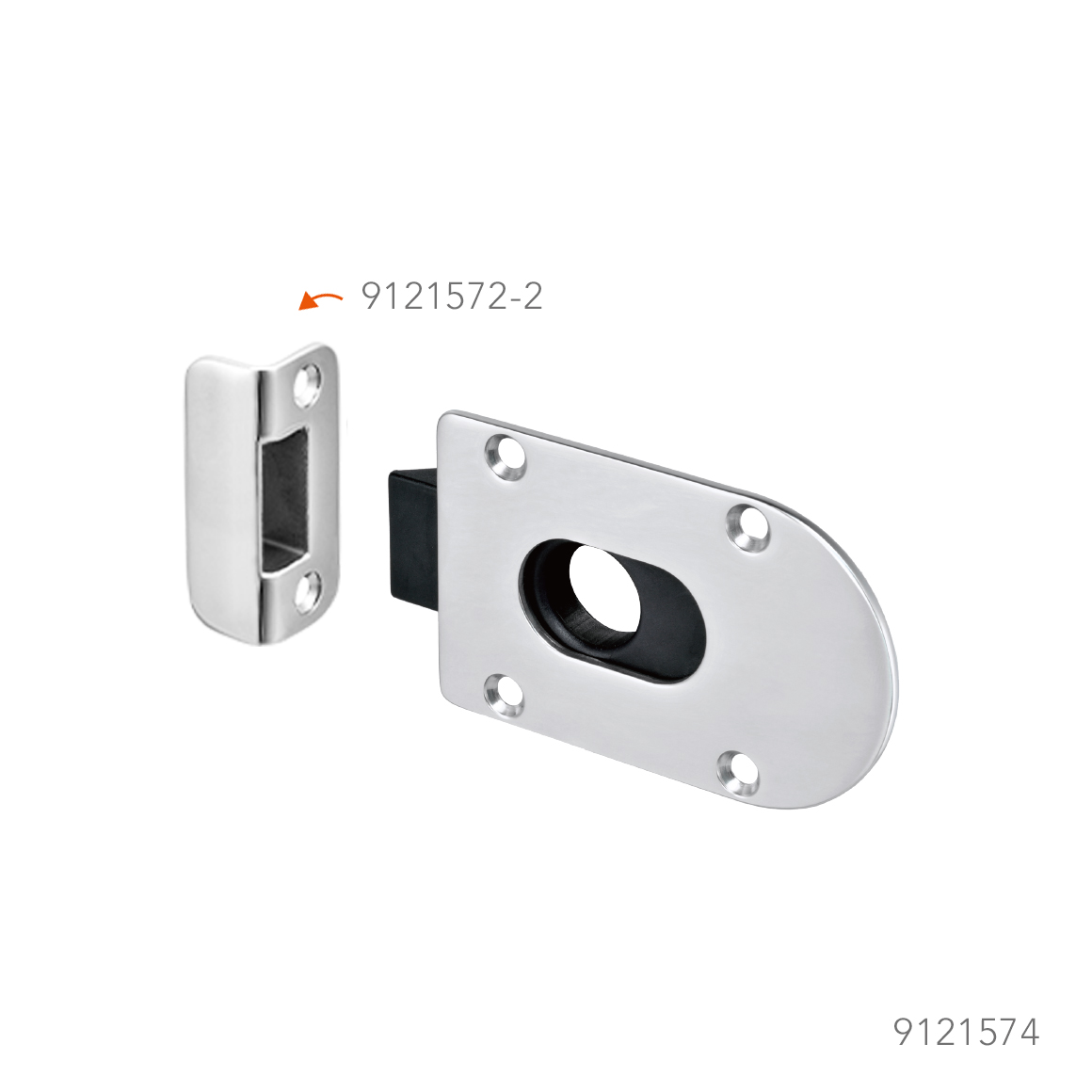

9121574 W/ 9121572-2 91(3-9/16") 56(2-3/16") 56(2-3/16") 23(15/16") - 9121574-9 W/ 0307598 91(3-9/16") 56(2-3/16") 62(2-7/16") - - 9121574-1 None 91(3-9/16") 56(2-3/16") - - - 0307596 - - - 62(2-7/16") 19(3/4") 13.5(1/2") 9321253-1 - - - 21(13/16") 16(5/8") 10(3/8")
