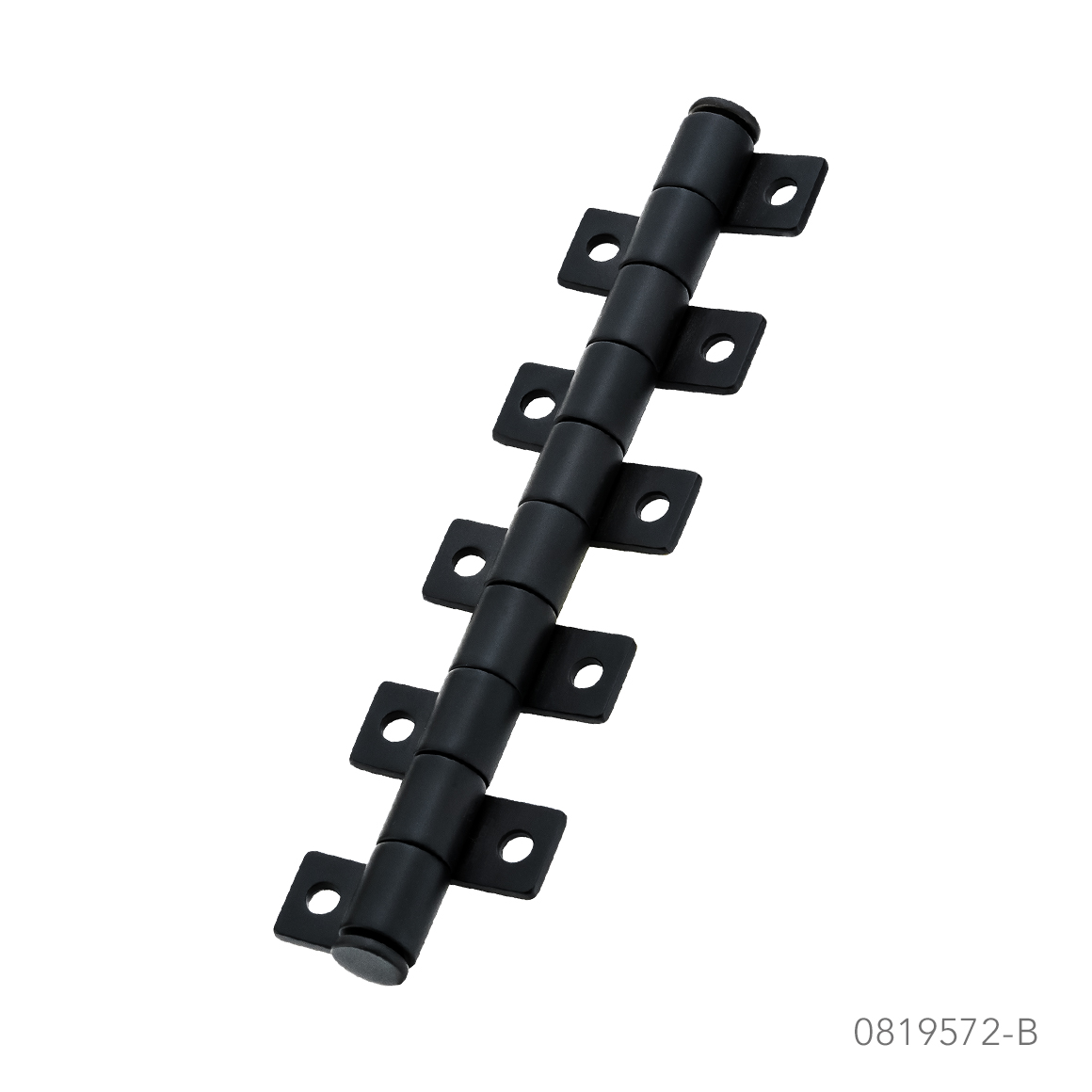

MTX - SEAM HINGE
Stainless Steel 316
- Piano-style hinge without friction.
- Hidden leaves design when door is closed.
- Short mounting leaves to fit 1/2"door thickness.
- Passed 500-hour salt-spray test.
- #6 R/H fasteners are required.
- Piano-style hinge without friction.
- Hidden leaves design when door is closed.
- Short mounting leaves to fit 1/2"door thickness.
- Passed 500-hour salt-spray test.
- #6 R/H fasteners are required.

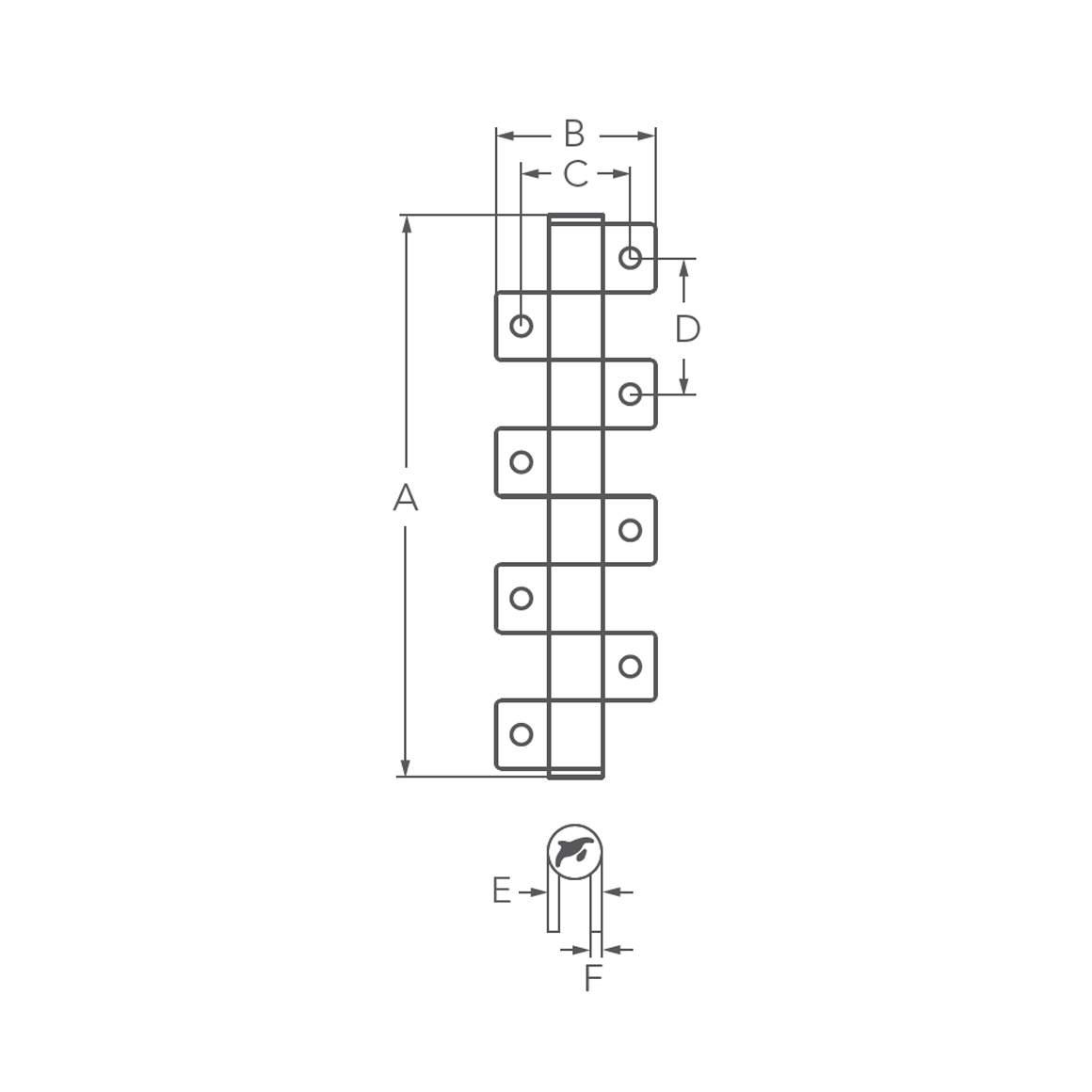

Qty
-
Bulk No.
Leaves
A mm
B mm
C mm
D mm
E mm
F mm
0819572 Short 123(4-13/16") 28(1-1/8") 19(3/4") 24(15/16") 10.3(7/16") 2(1/16")
-
Bulk No.
Download
0819572 Drawing
