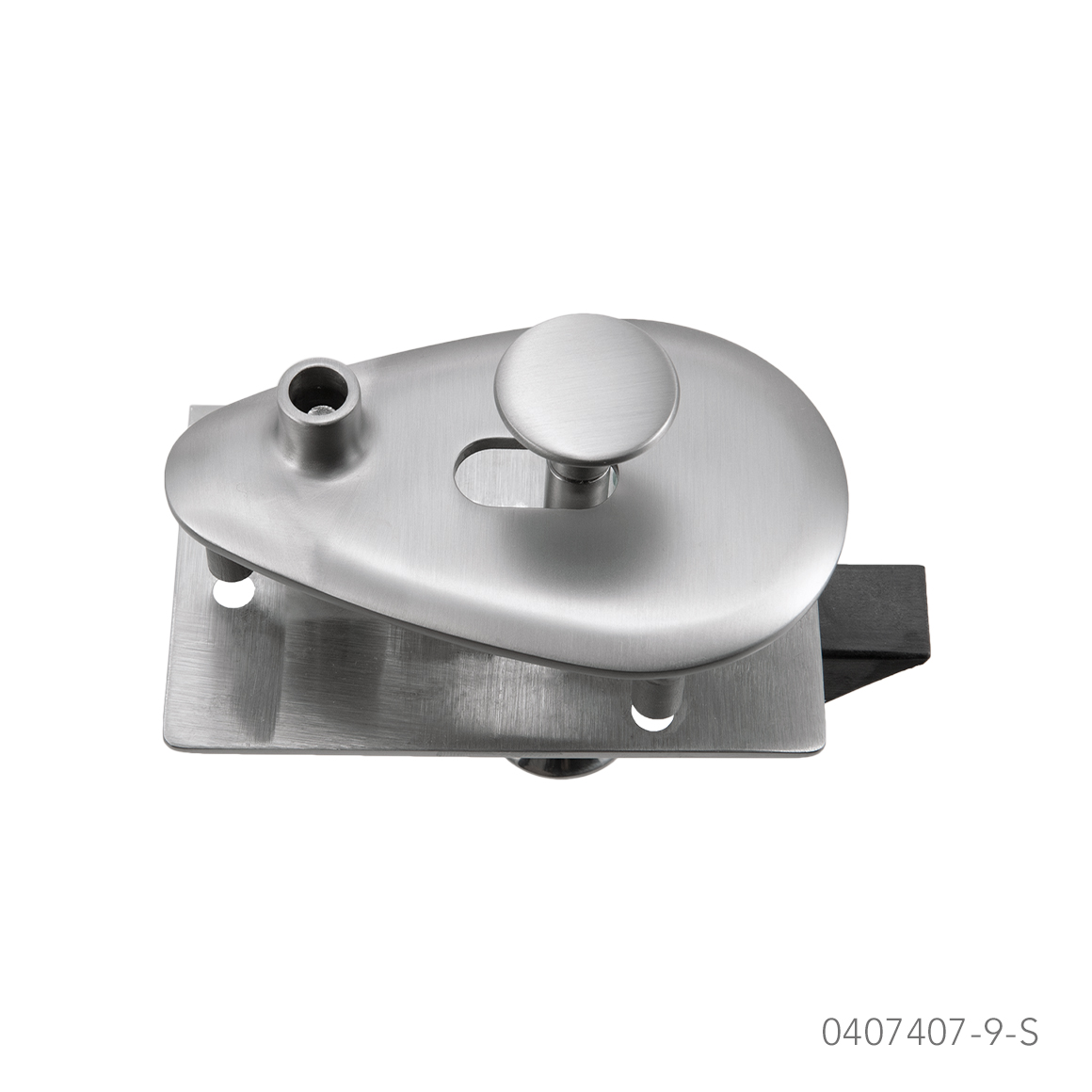

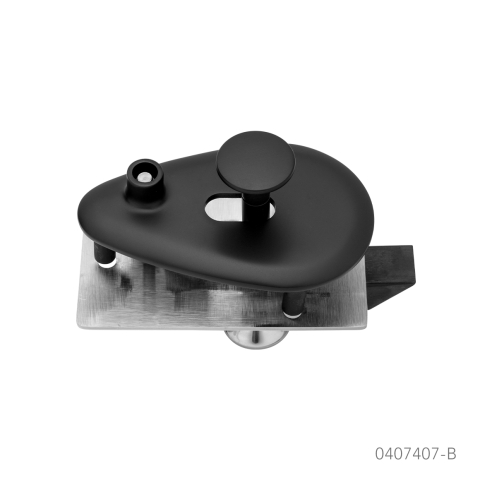

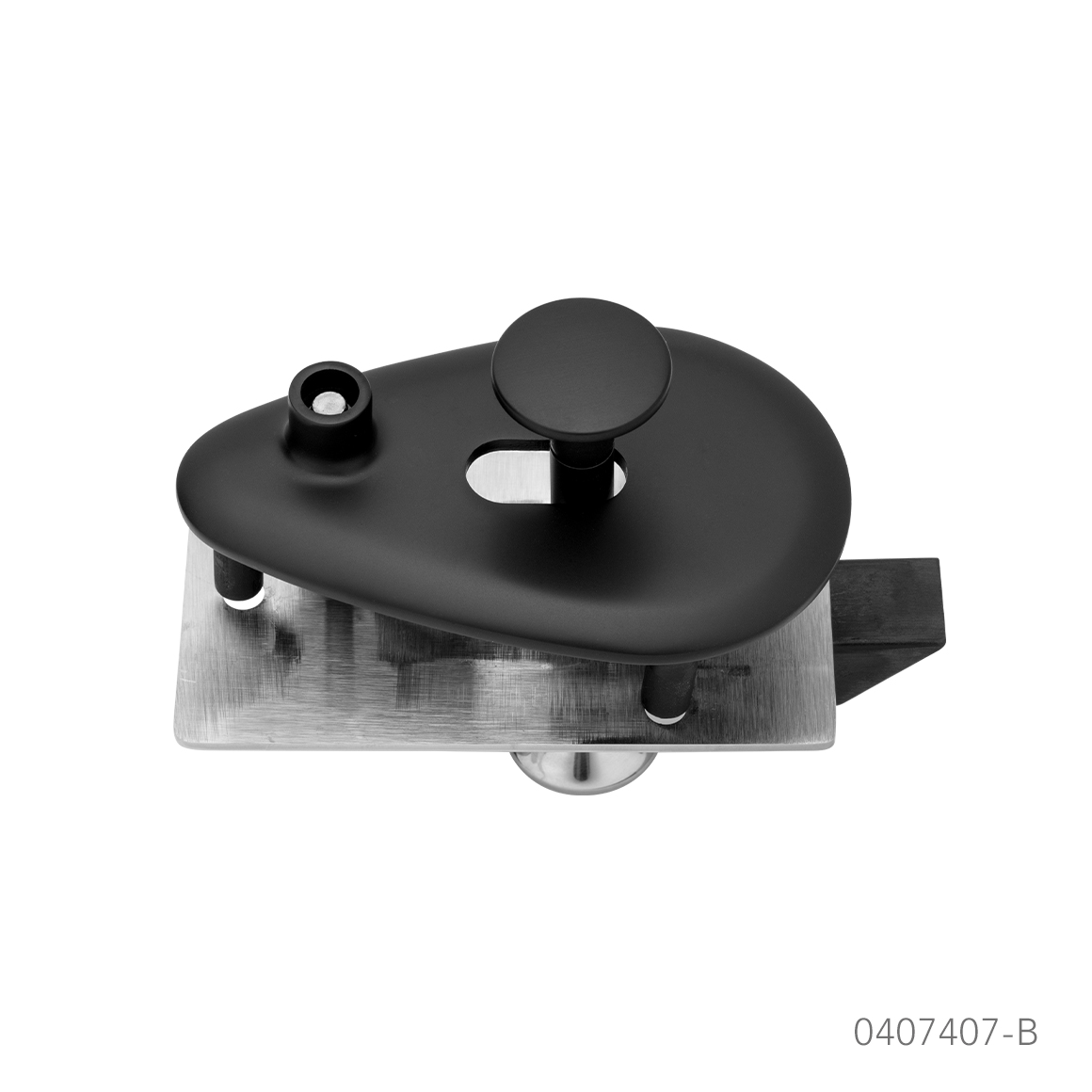

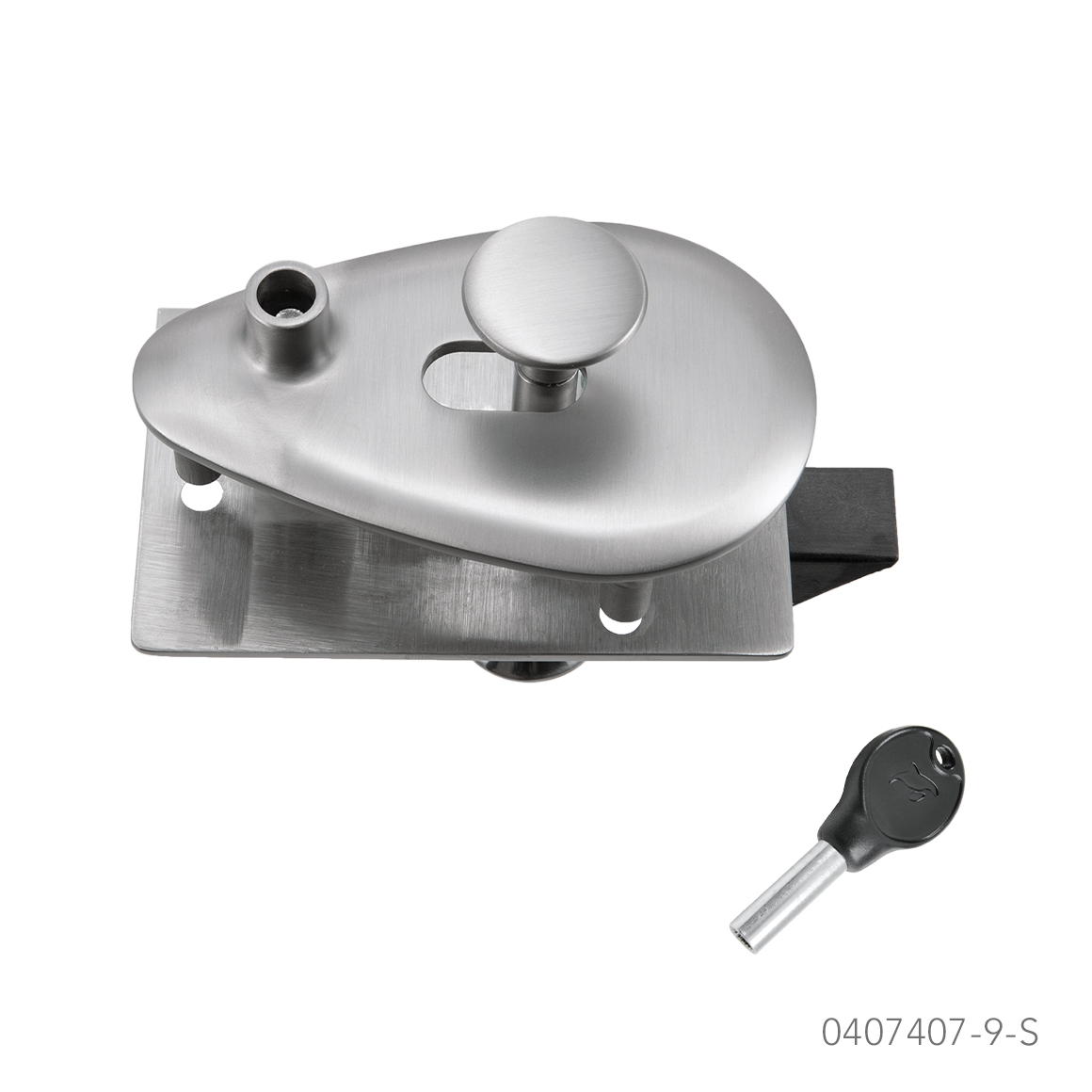

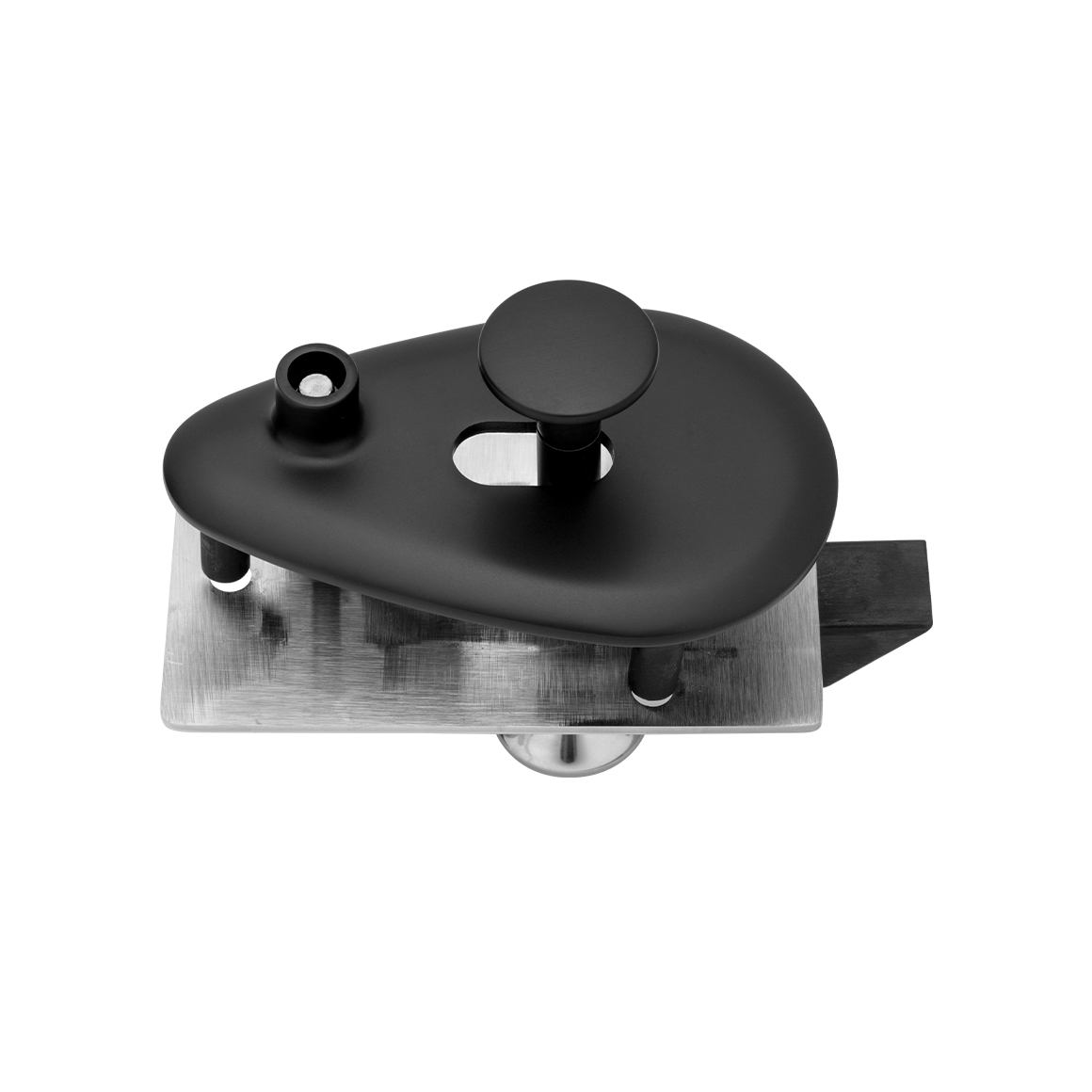

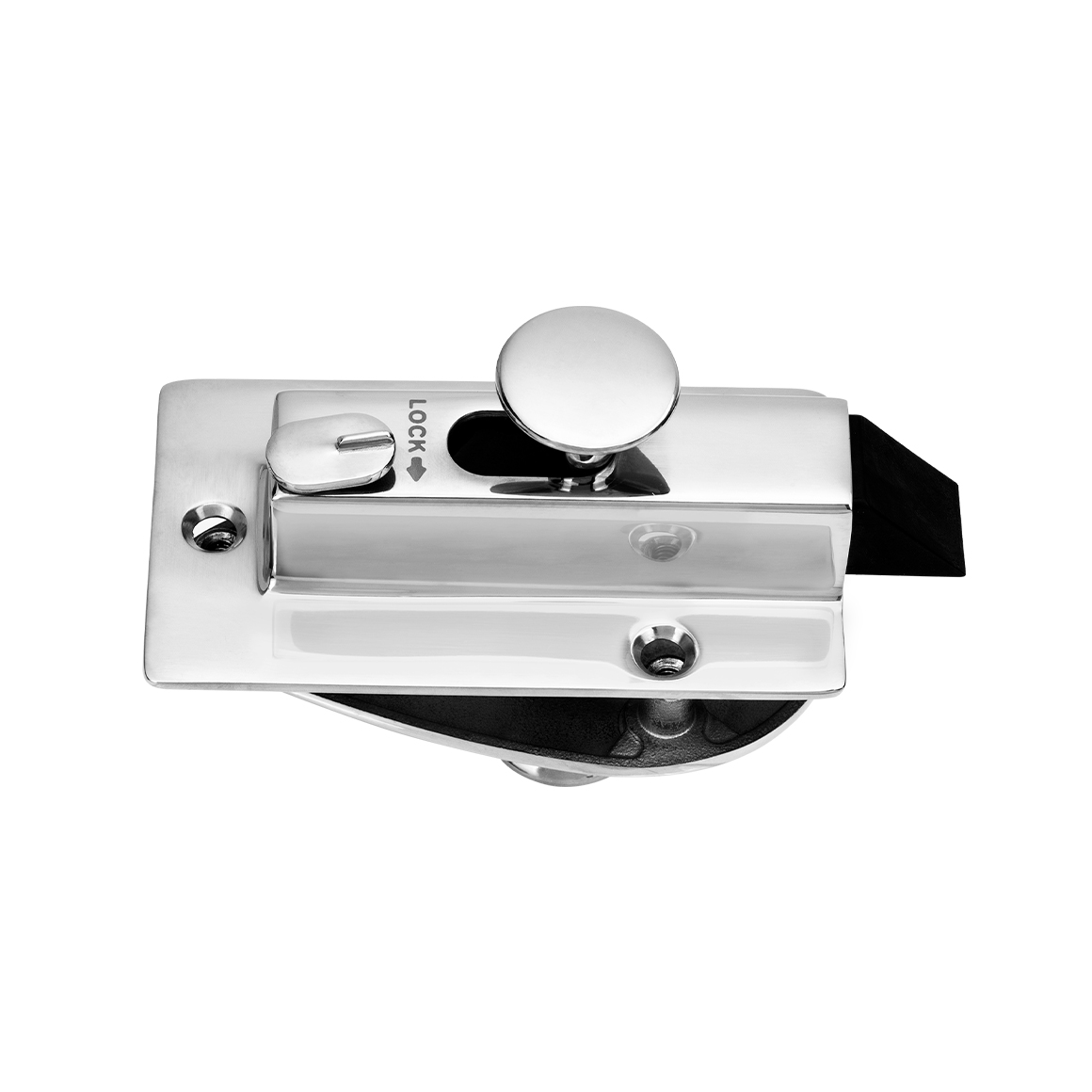

MTX - HEAD DOOR LATCH
Stainless Steel 316 & Nylon
- The nylon slide can be adjusted in angle and length to achieve the desired engagement
with a maximum engagement of 15mm (5/8").
- Fits wide range of door thickness.
- A spacer block may be required (not provided) between the door and underside of the
inside latch body to acquire desired slide engagement to the door frame.
- The inner beveled end of the slide must be oriented up in order for the lock to function
properly.
- Screw size M5 or #10.
- The nylon slide can be adjusted in angle and length to achieve the desired engagement
with a maximum engagement of 15mm (5/8").
- Fits wide range of door thickness.
- A spacer block may be required (not provided) between the door and underside of the
inside latch body to acquire desired slide engagement to the door frame.
- The inner beveled end of the slide must be oriented up in order for the lock to function
properly.
- Screw size M5 or #10.
Qty
Qty
Qty
Qty
Qty
Qty
-
Bulk No.

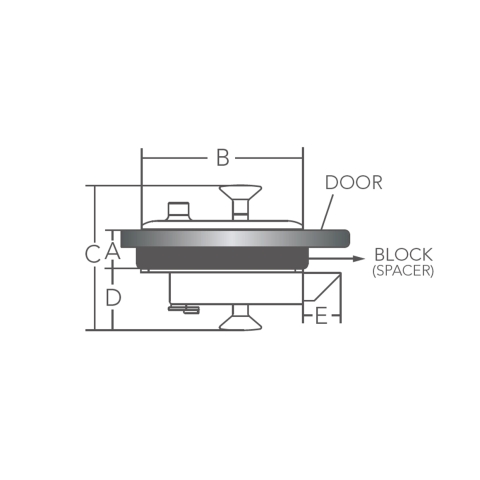

A mm
B mm
C mm
D mm
E mm
0407407 19~25.4(3/4"~1") 107(4-3/16") 90(3-9/16") 41(1-5/8") 18~33(11/16"~1-5/16") 0407407-9 25.4~38(1"~1-1/2") 107(4-3/16") 100(3-15/16") 41(1-5/8") 18~33(11/16"~1-5/16") INSIDE
OUTSIDE
