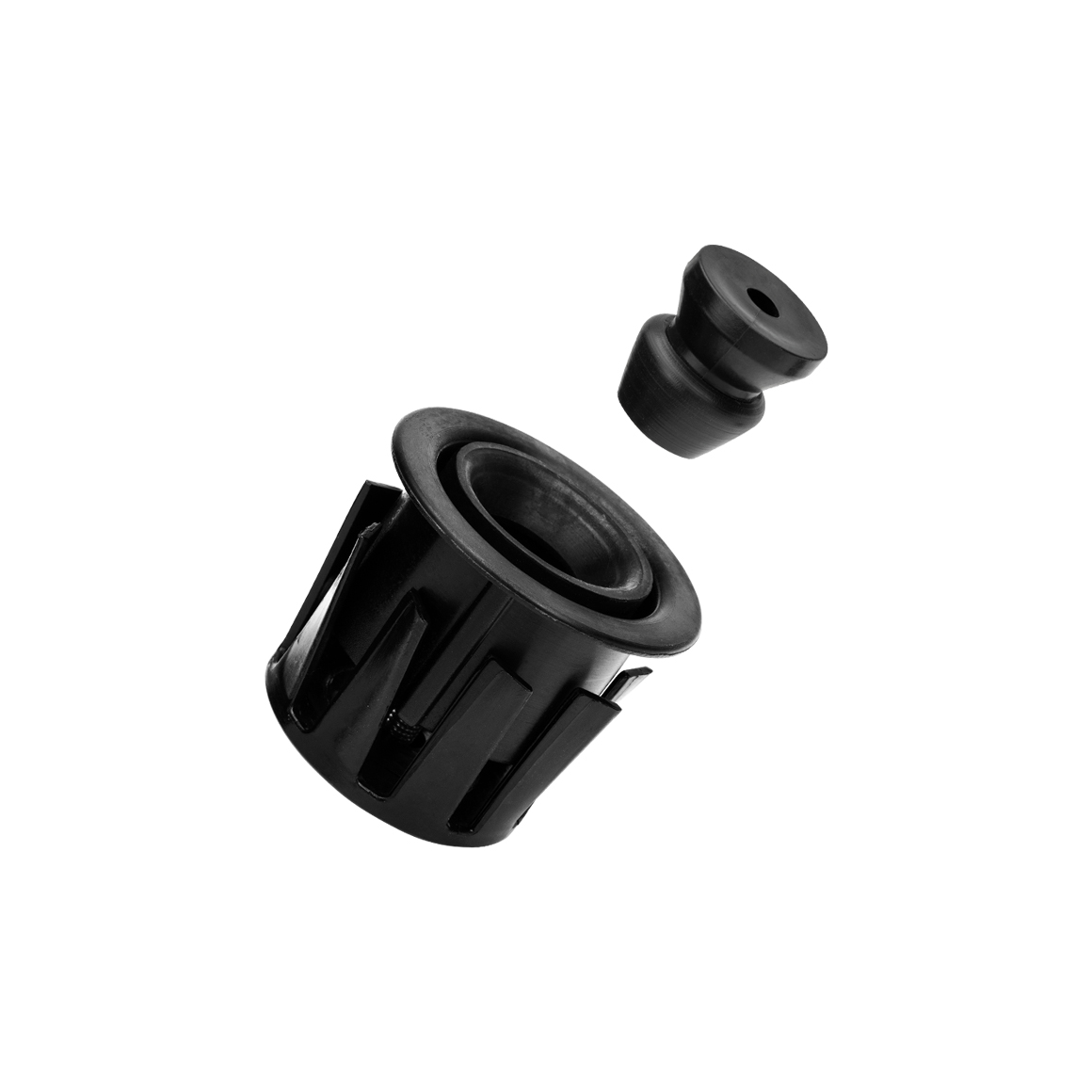

SNAP IN PLUNGER
Nylon & Rubber & PP

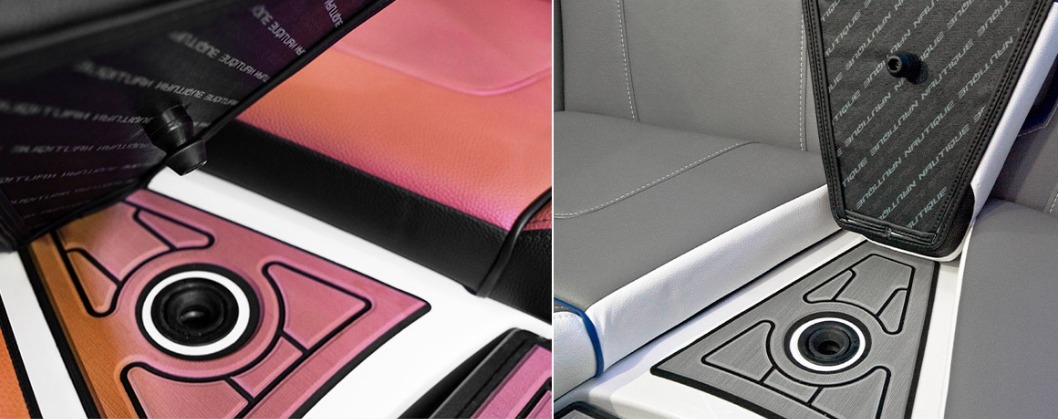

- Compact design for versatile applications on seat cushions, hatches,
electric panels, etc.
- Different holding power can be customized upon request.
- 51mm (2") installation hole is required.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
- Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
- Compact design for versatile applications on seat cushions, hatches,
electric panels, etc.
- Different holding power can be customized upon request.
- 51mm (2") installation hole is required.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
- Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
Qty
Qty
Qty
-
Bulk No.

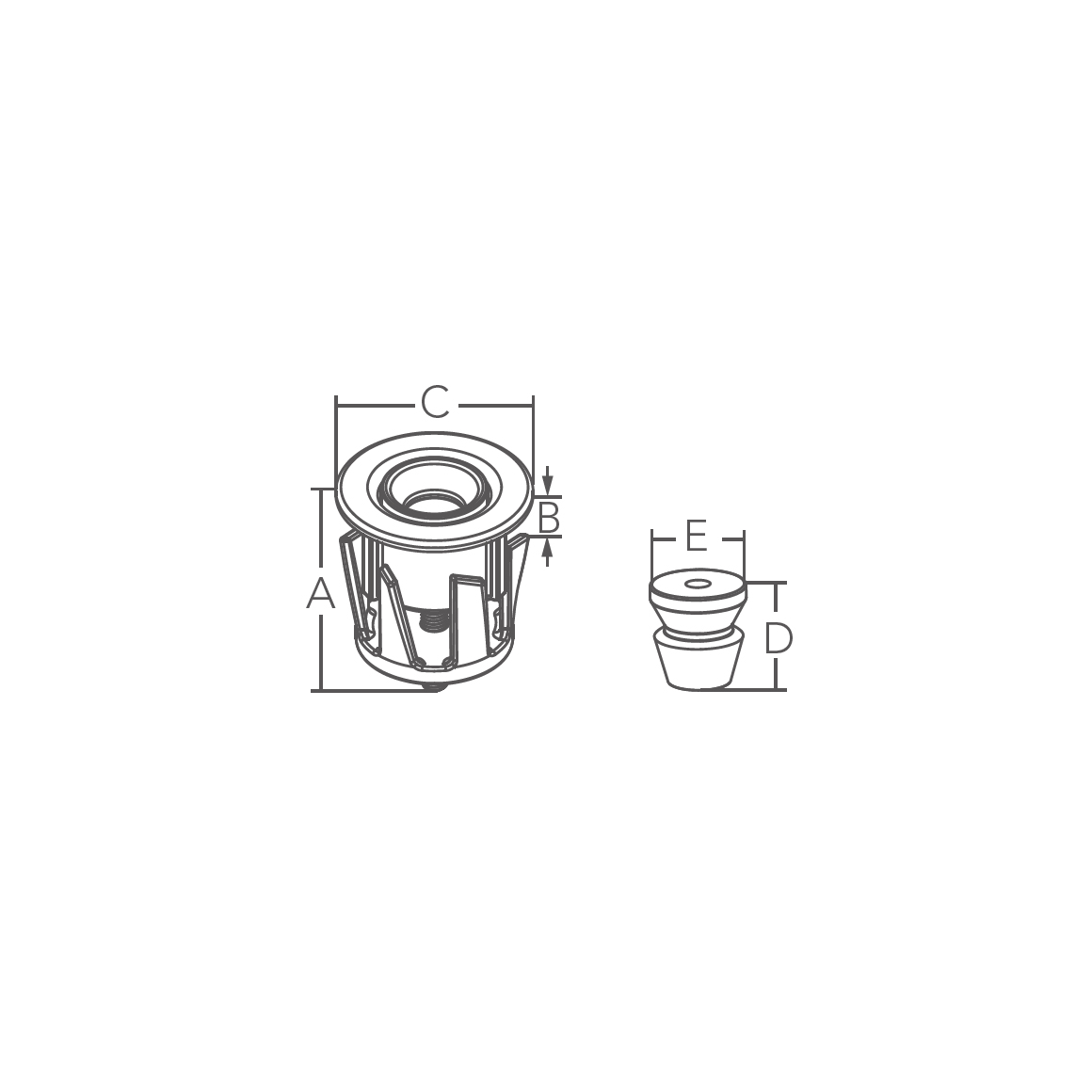

A mm
B mm
C mm
D mm
E mm
Screw Size
Holding Power

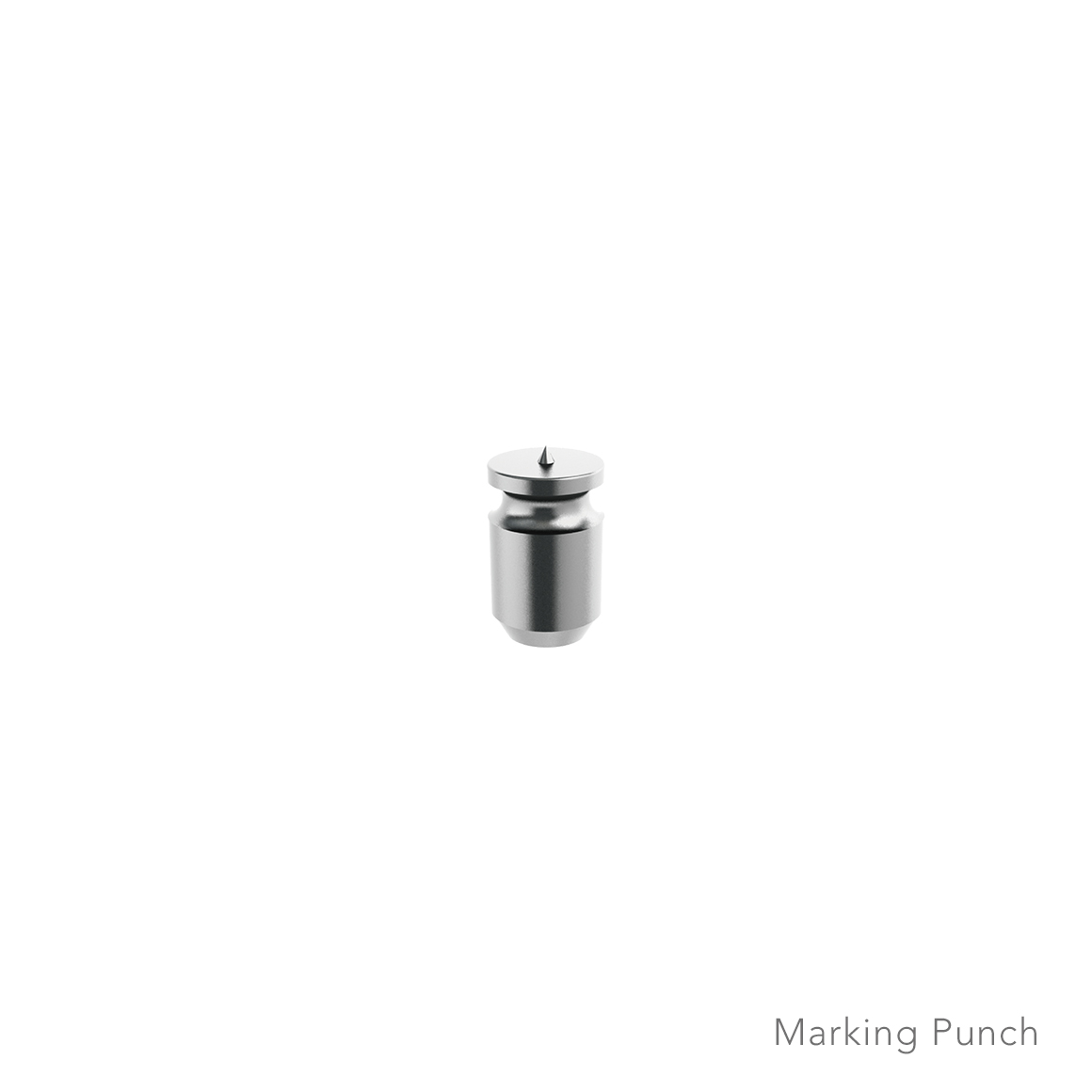

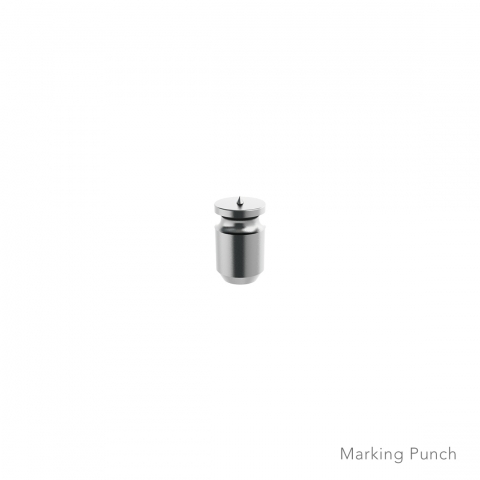

0107427 62(2-7/16") 3~19(1/8"~3/4") 60(2-3/8") 27(1-1/16") 25.4(1") M6 or 1/4" 10 kg(22 lb) 0107428 62(2-7/16") 3~19(1/8"~3/4") 60(2-3/8") 27(1-1/16") 25.4(1") M6 or 1/4" 17 kg(37 lb) 1007420-G Aluminum Marking Punch for 0107427/8
INSTALLATION INSTRUCTION
❶

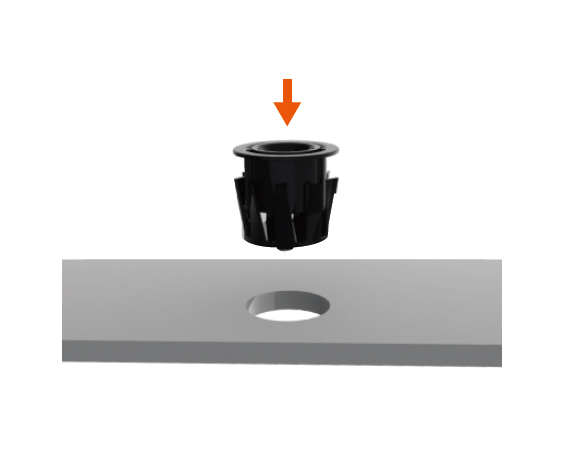

Snap in.
❷

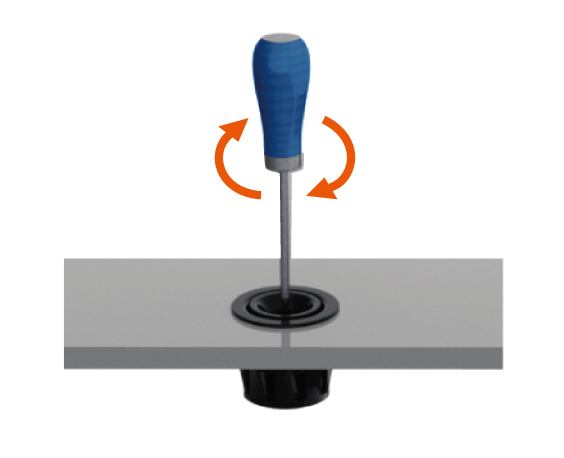

Tighten screw.
❸
Insert marking punch
to mark for alignment.❹

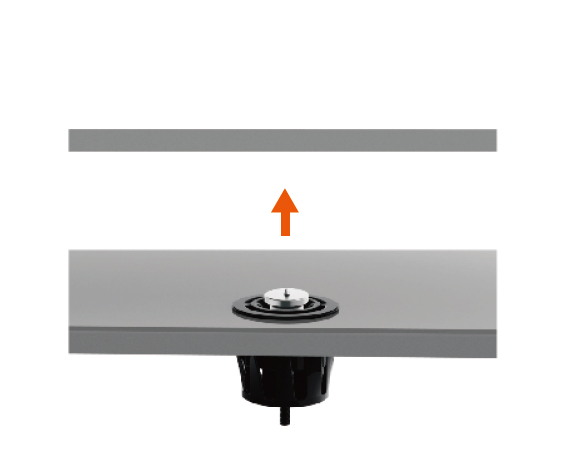

Install male part and
hold in place.
