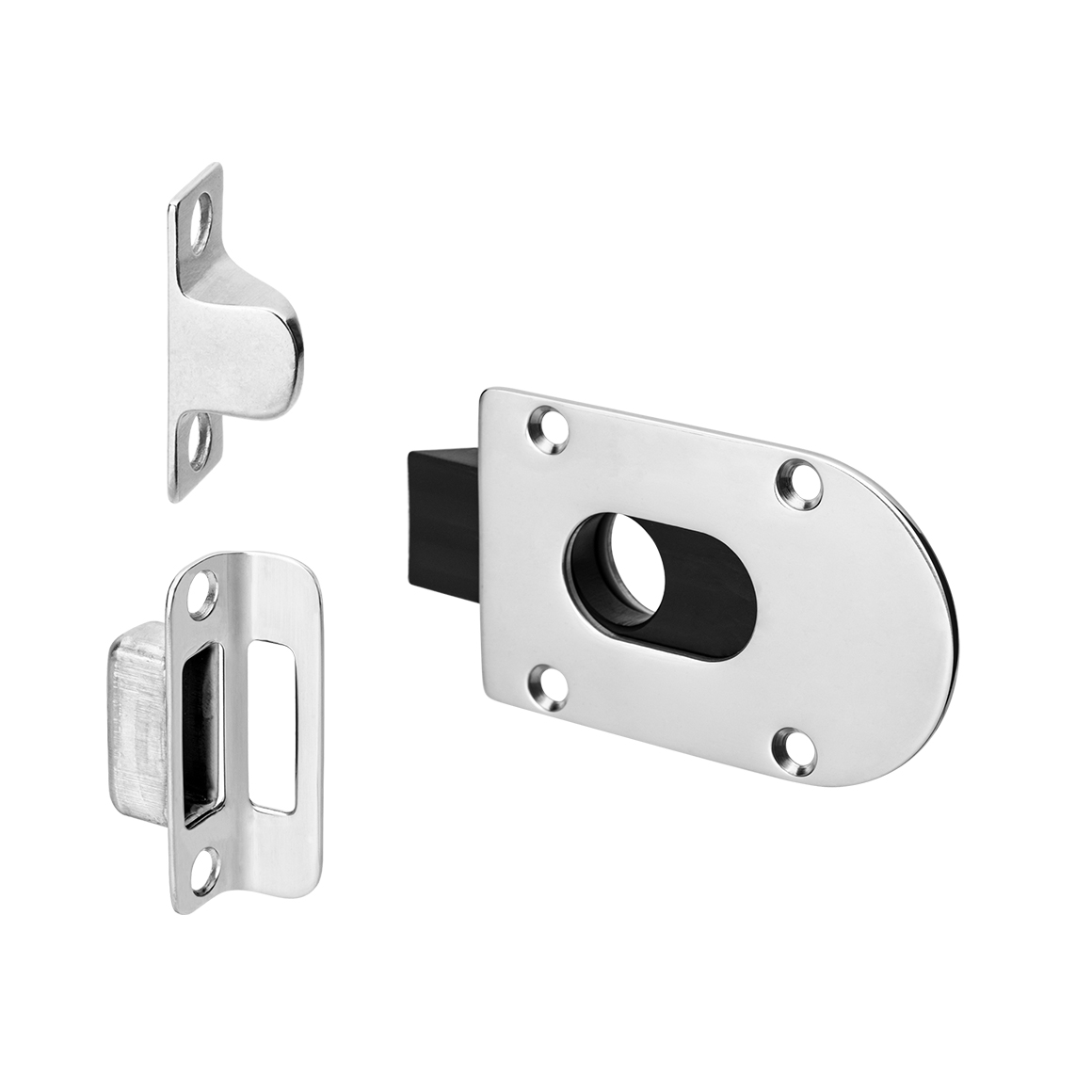

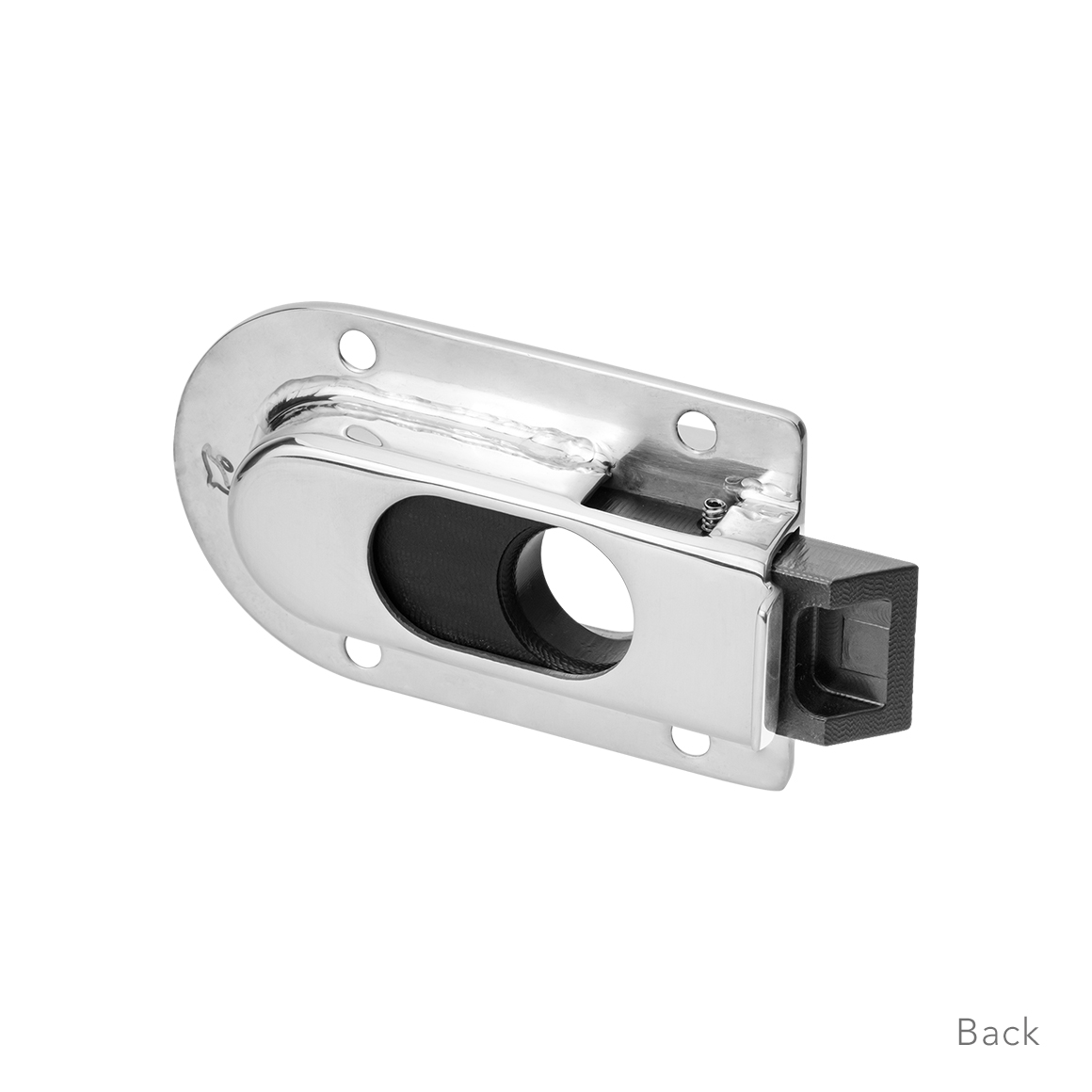

DUAL STRIKE SPRING SLIDE LATCH W/ HOOK
Stainless Steel 316 & Nylon Slide

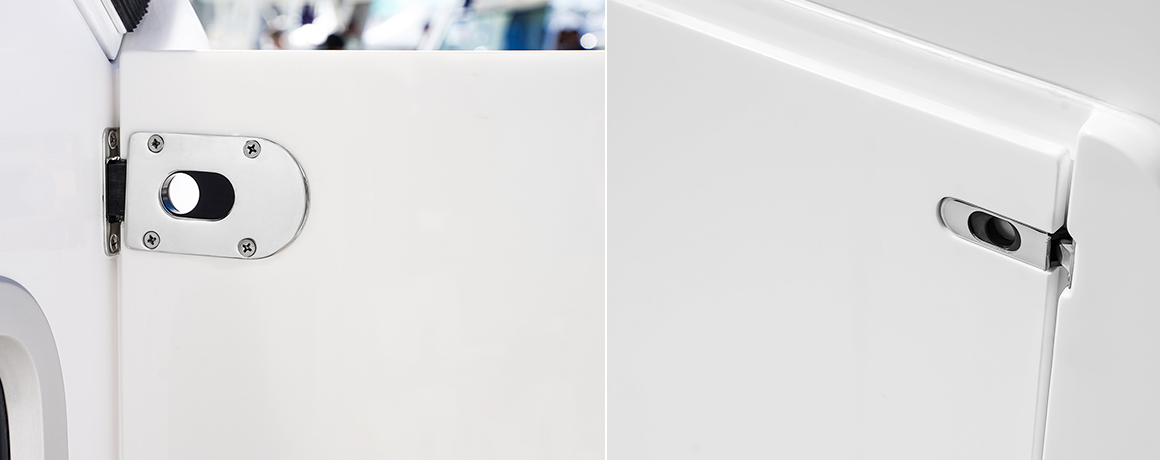

- Ideal for use on pass-thru doors, transom doors and wind dams.
- Fits standard plastic doors with a thickness of 12-13mm (1/2").
- Dual strike configuration enables secure latch engagement in both
open and closed positions.
- Hook-integrated strike mechanism delivers enhanced grip stability,
preventing any free swing of the door underway in rough conditions.
- Adjustable slide is reversible to accommodate out-swing or in-swing doors.
- Screw size M4 or #8.
- Ideal for use on pass-thru doors, transom doors and wind dams.
- Fits standard plastic doors with a thickness of 12-13mm (1/2").
- Dual strike configuration enables secure latch engagement in both
open and closed positions.
- Hook-integrated strike mechanism delivers enhanced grip stability,
preventing any free swing of the door underway in rough conditions.
- Adjustable slide is reversible to accommodate out-swing or in-swing doors.
- Screw size M4 or #8.
Qty
Qty
Qty
-

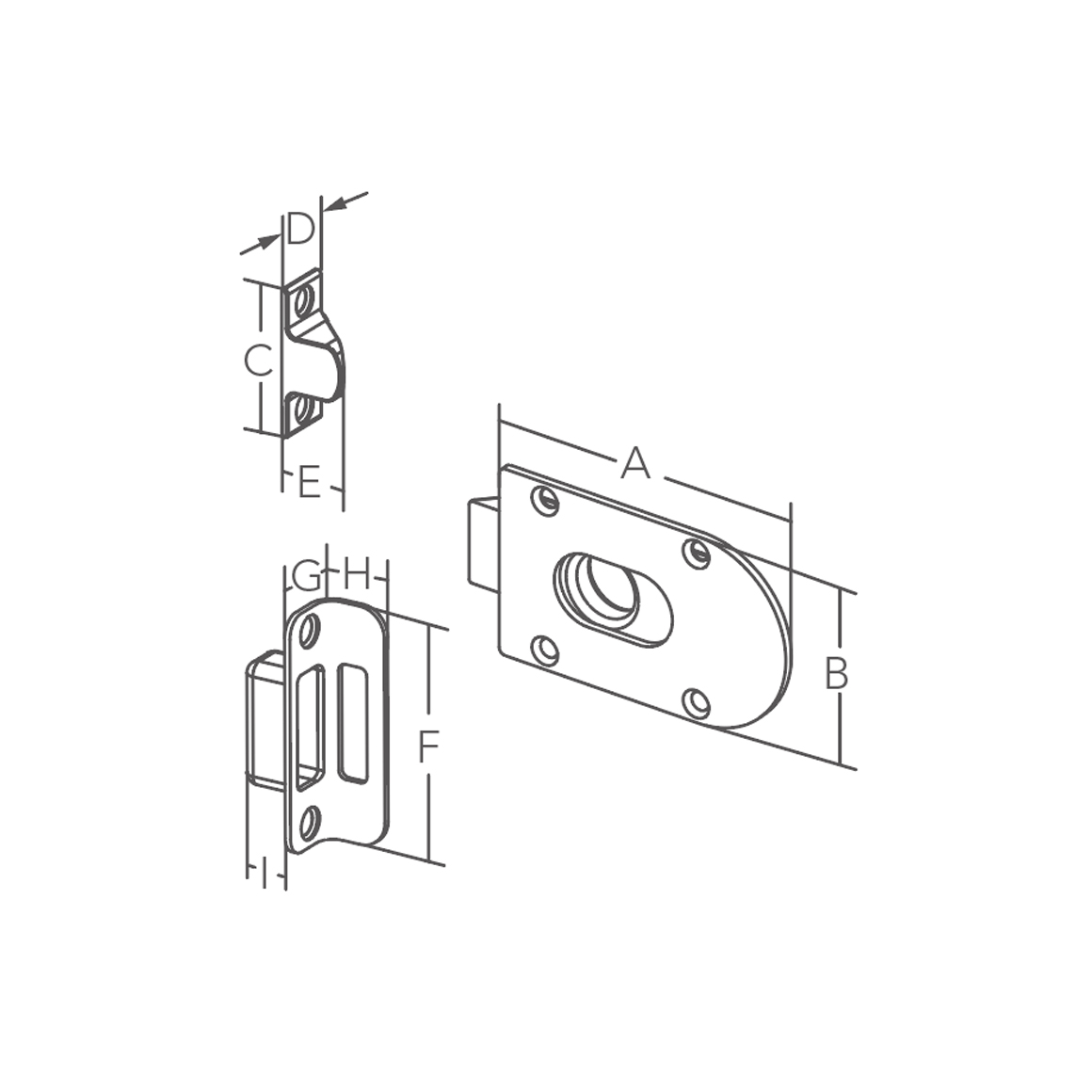

Bulk No.
A mm
B mm
C mm
D mm
E mm
F mm
G mm
H mm
I mm

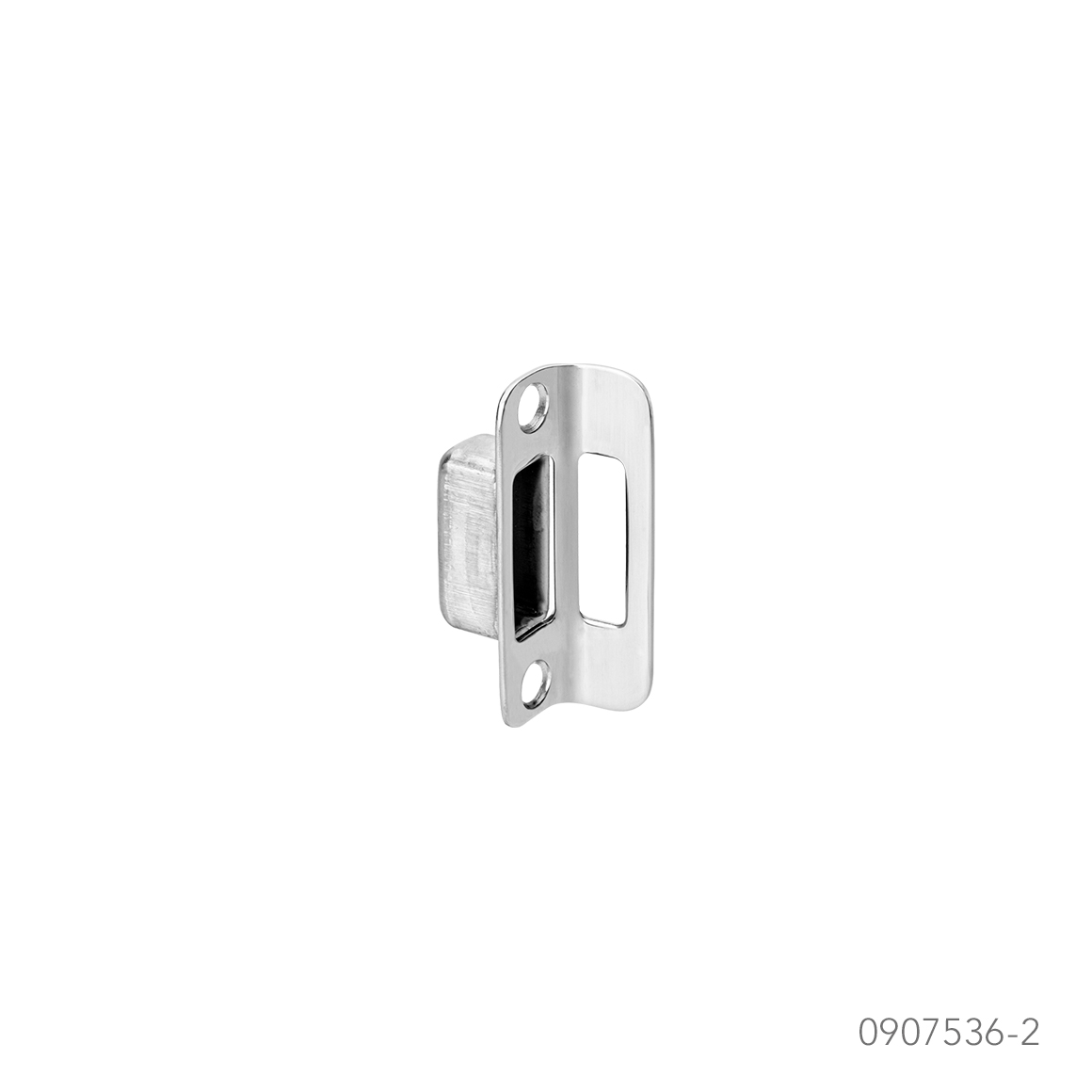

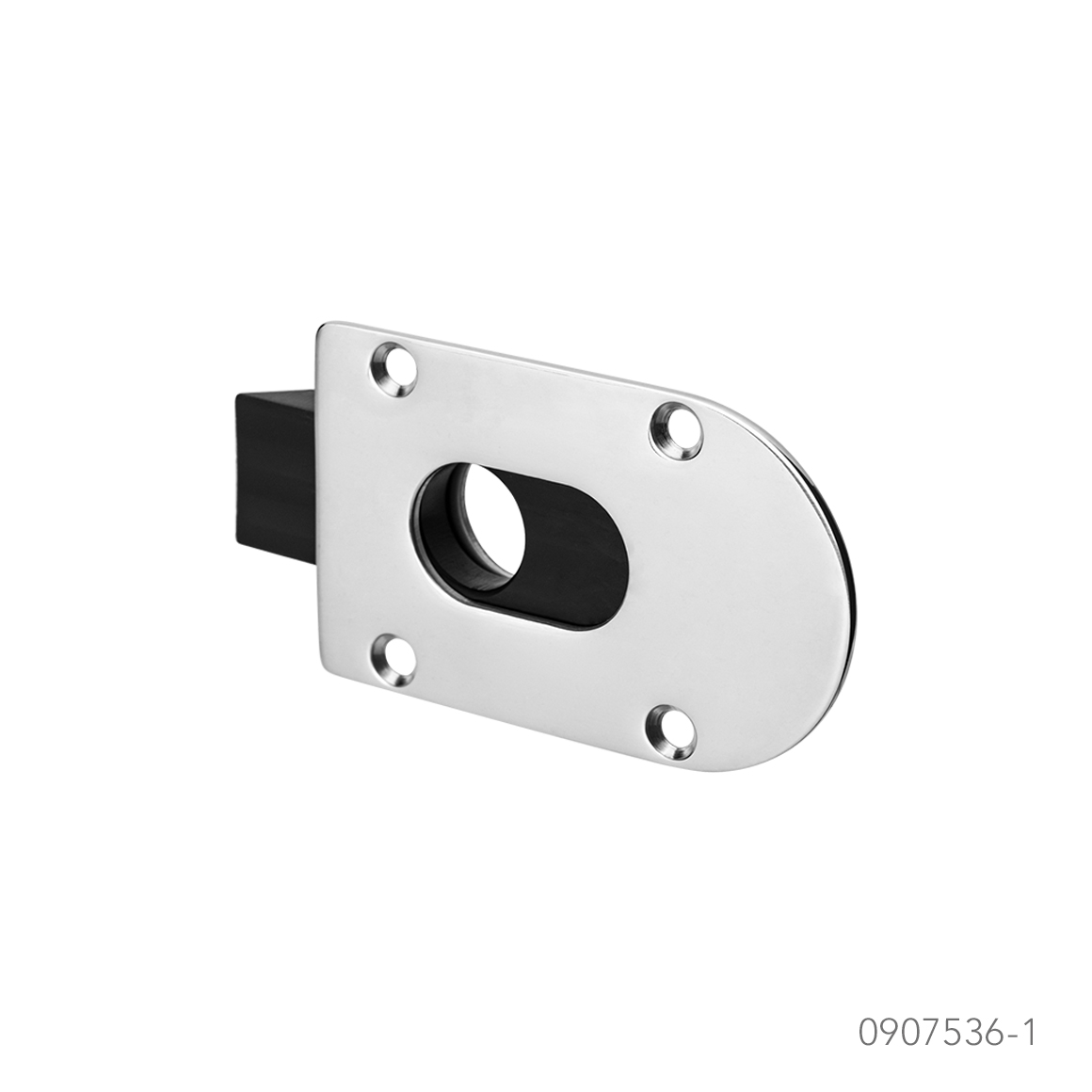

0907536 91(3-9/16") 56(2-3/16") 35(1-3/8") 14(9/16") 15(9/16") 62(2-7/16") 18(11/16") 18(11/16") 13.5(1/2") 0907536-1 91(3-9/16") 56(2-3/16") - - - - - - - 0907536-2 - - - - - 62(2-7/16") 18(11/16") 18(11/16") 13.5(1/2")
-
Bulk No.
Download
0907536 Drawing 0907536-1 - 0907536-2 -
