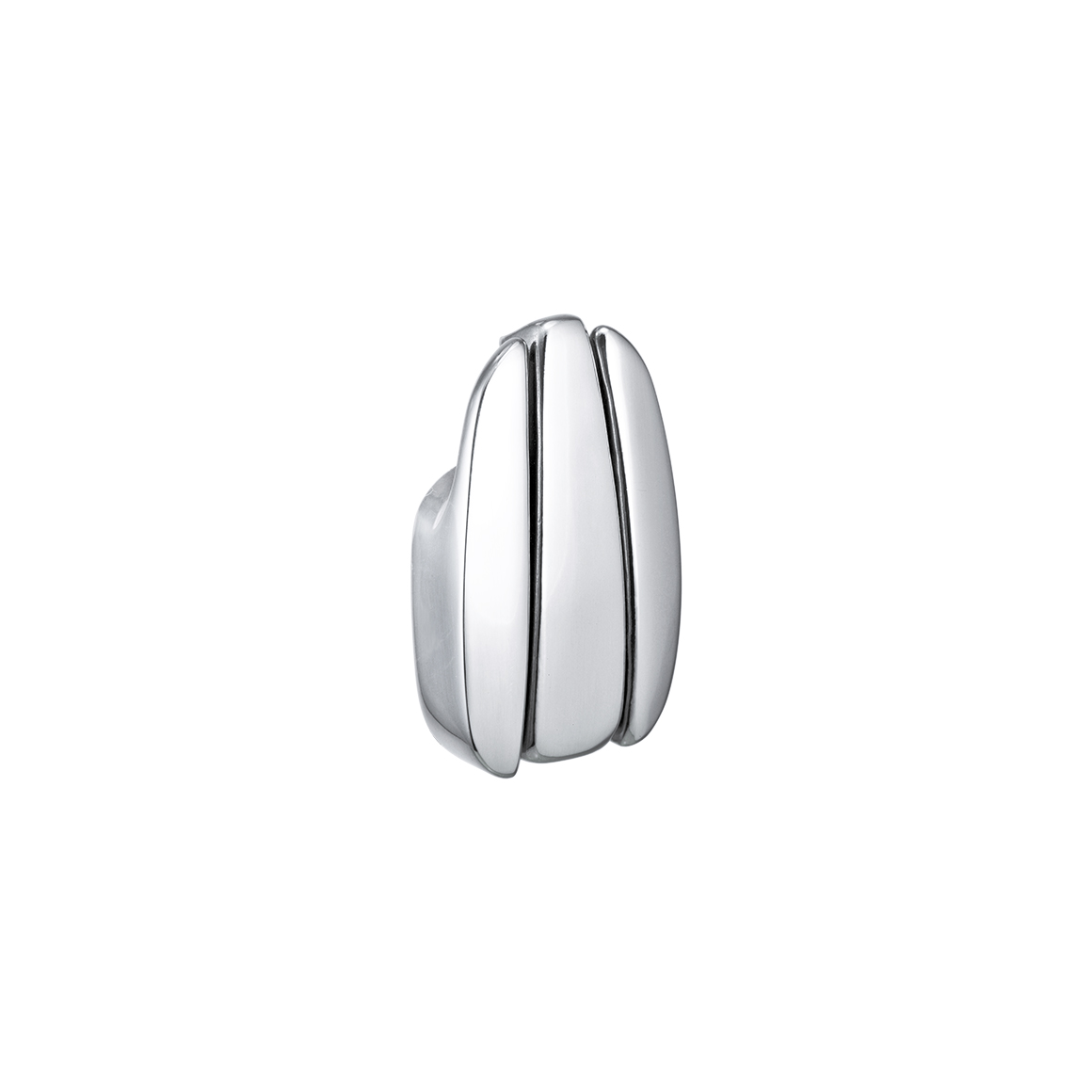

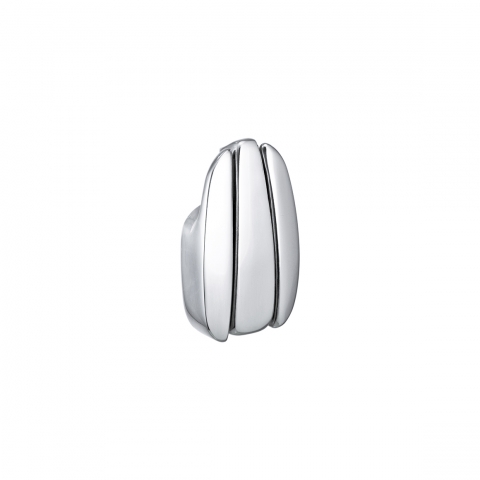

SURFACE MOUNT FENDER HOOK - OVAL
Stainless Steel 316
- One-hand operation.
- Concealed fastener design for a clean appearance.
- Designed for fender hook, or storage hook for hats or towels.
- Spring loaded hook secures the line firmly.
- Can be installed with machine or self-tapping screws.
- Screws size M4 or #8 flat head.
- One-hand operation.
- Concealed fastener design for a clean appearance.
- Designed for fender hook, or storage hook for hats or towels.
- Spring loaded hook secures the line firmly.
- Can be installed with machine or self-tapping screws.
- Screws size M4 or #8 flat head.
Qty
-
Bulk No.

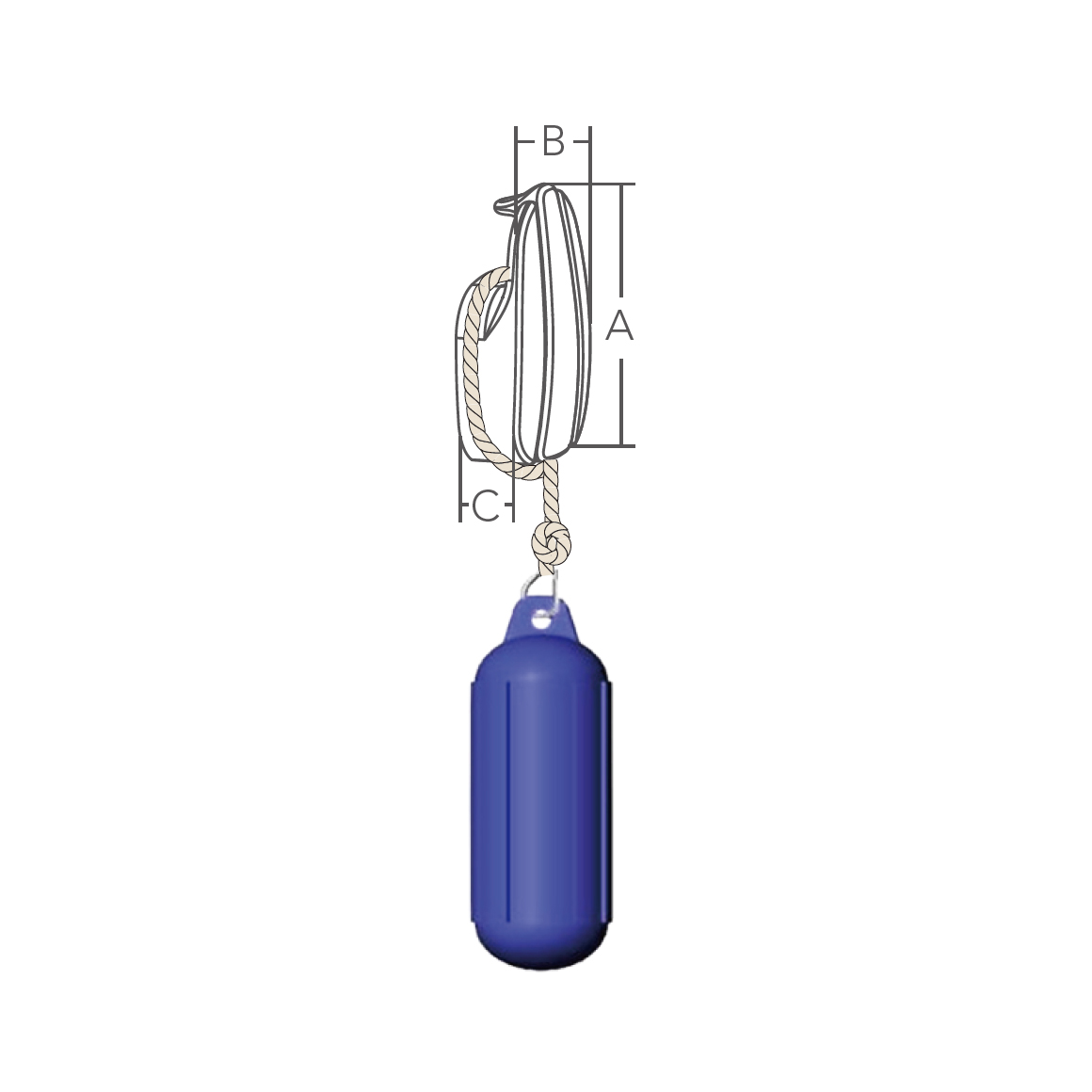

A mm
B mm
C mm
Fits Fender Line Ø mm
0408585 53(2-1/16") 32(1-1/4") 17(11/16") 6~10(1/4"~3/8")
INSTRUCTION
❶
❷
❸

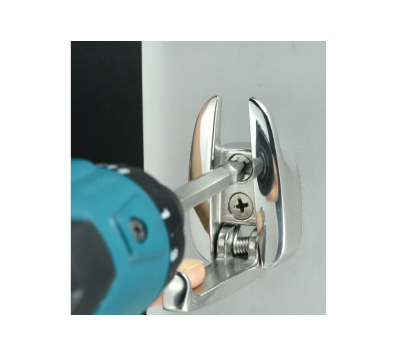

Installed with
M4 or #8 flat head

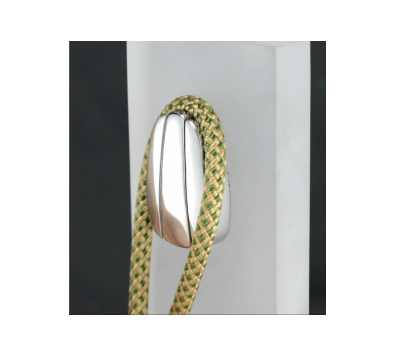

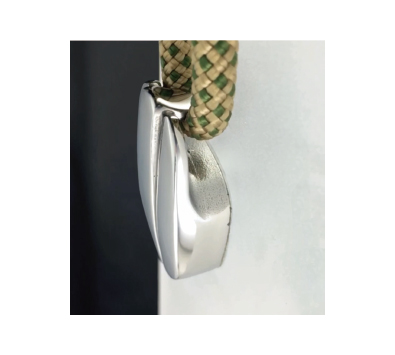

fasteners.Pull line loop down
to attach.Lift line up and pull
to remove. -
Bulk No.
Download
0408585 Drawing
