SURFACE MOUNT FENDER HOOK - ROUND

Stainless Steel 316
- One-hand operation.
- Concealed fastener design for a clean appearance.
- Designed for fender hook, or storage hook for hats or towels.
- Spring loaded hook secures the line firmly.
- Customized logo on the surface of 0508587-8 is available upon request.
- Can be installed with machine or self-tapping screws.
- Screws size M4 or #8 flat head.
Qty
Qty
MOQ
  •

    Bulk No.

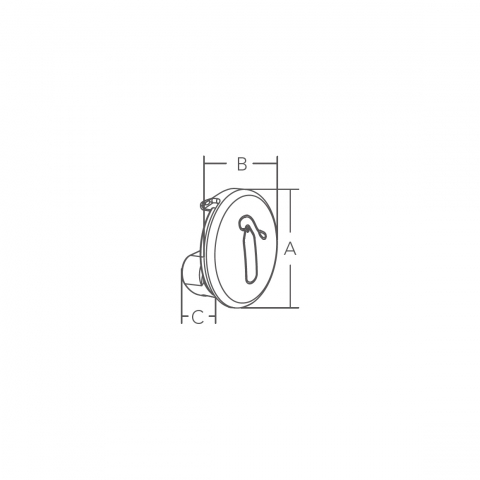

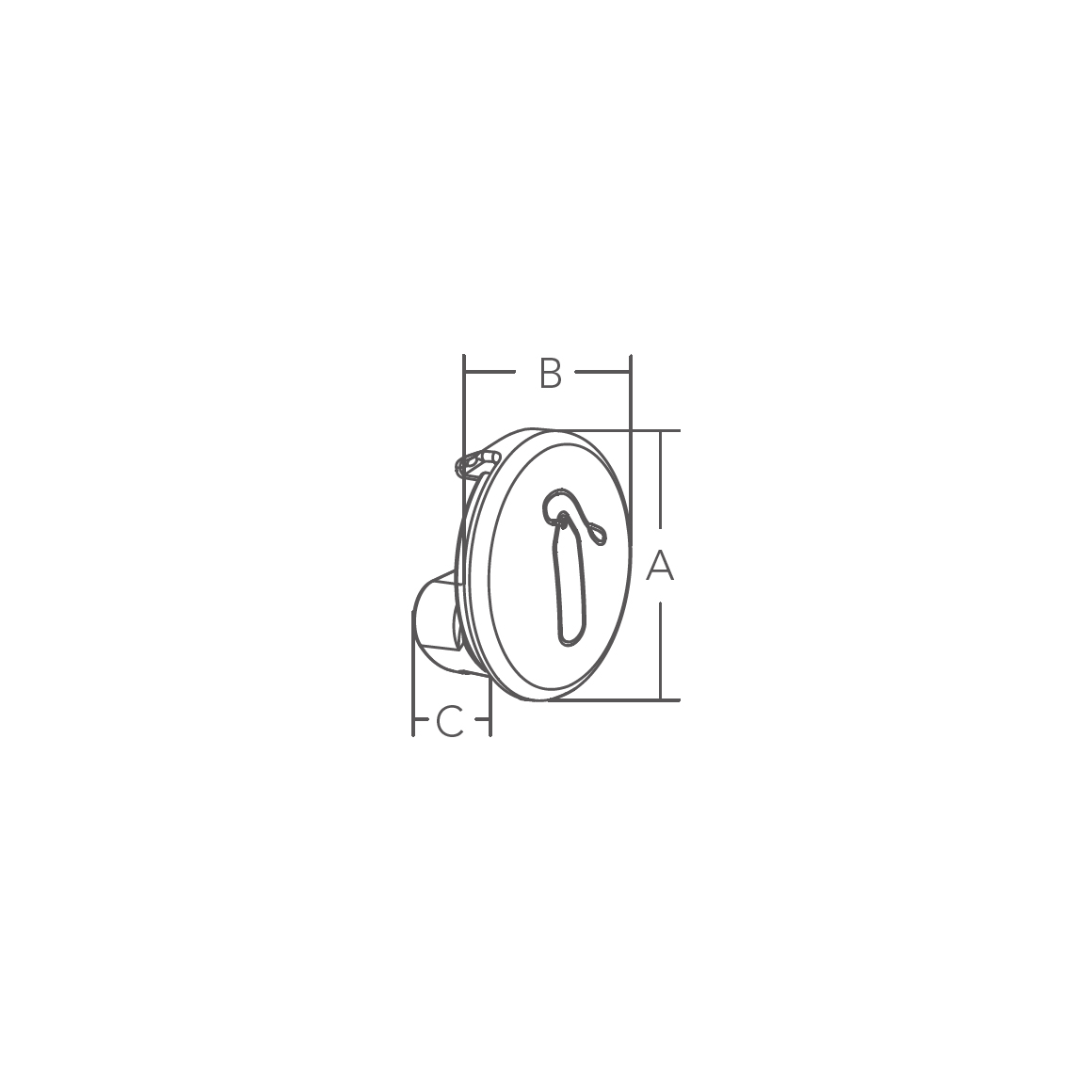

    A mm

    B mm

    C mm

    Fits Fender Line Ø mm

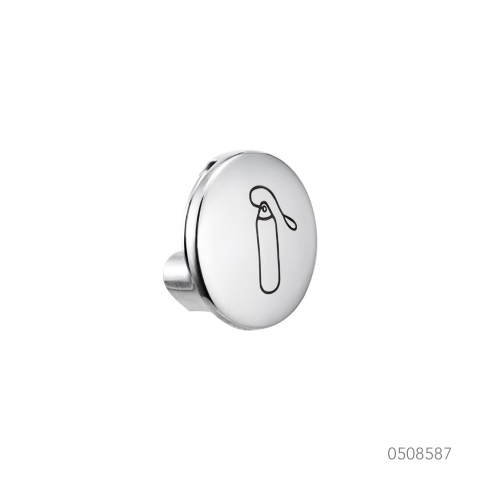

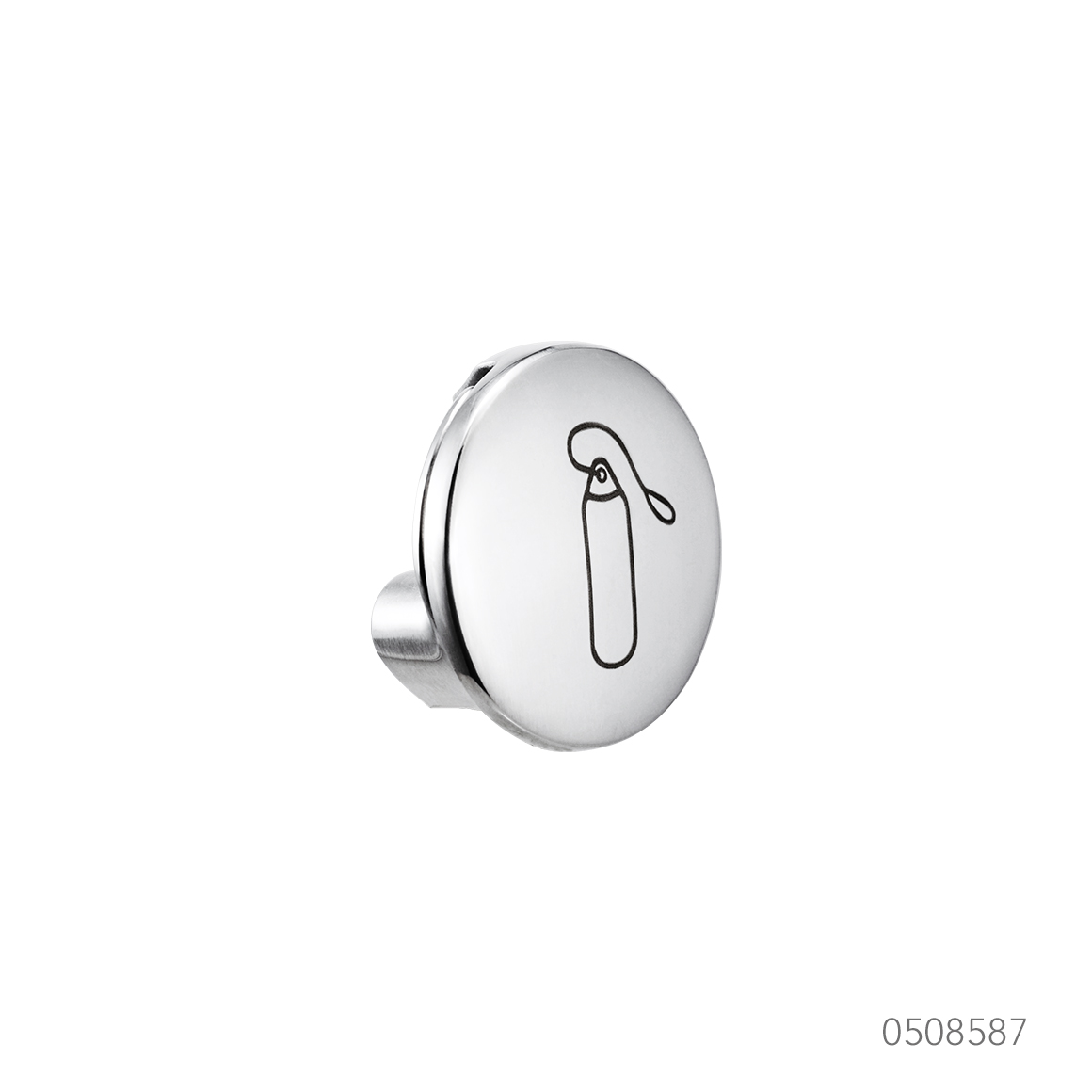

    0508587 36(1-7/16") 36(1-7/16") 17(11/16") 6~10(1/4"~3/8")

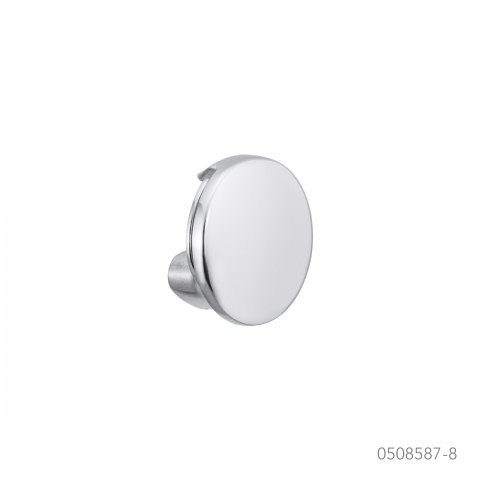

    0508587-8 36(1-7/16") 36(1-7/16") 17(11/16") 6~10(1/4"~3/8")



    INSTRUCTION




    Installed with
    M4 or #8 flat head
    fasteners.
    Pull line loop down
    to attach.
    Lift line up and pull
    to remove.

  •

    Bulk No.

    Download

    0508587 Drawing
    0508587-8 Drawing
