WATER RESISTANT SWITCH PANEL
Aluminum Alloy Face Panel

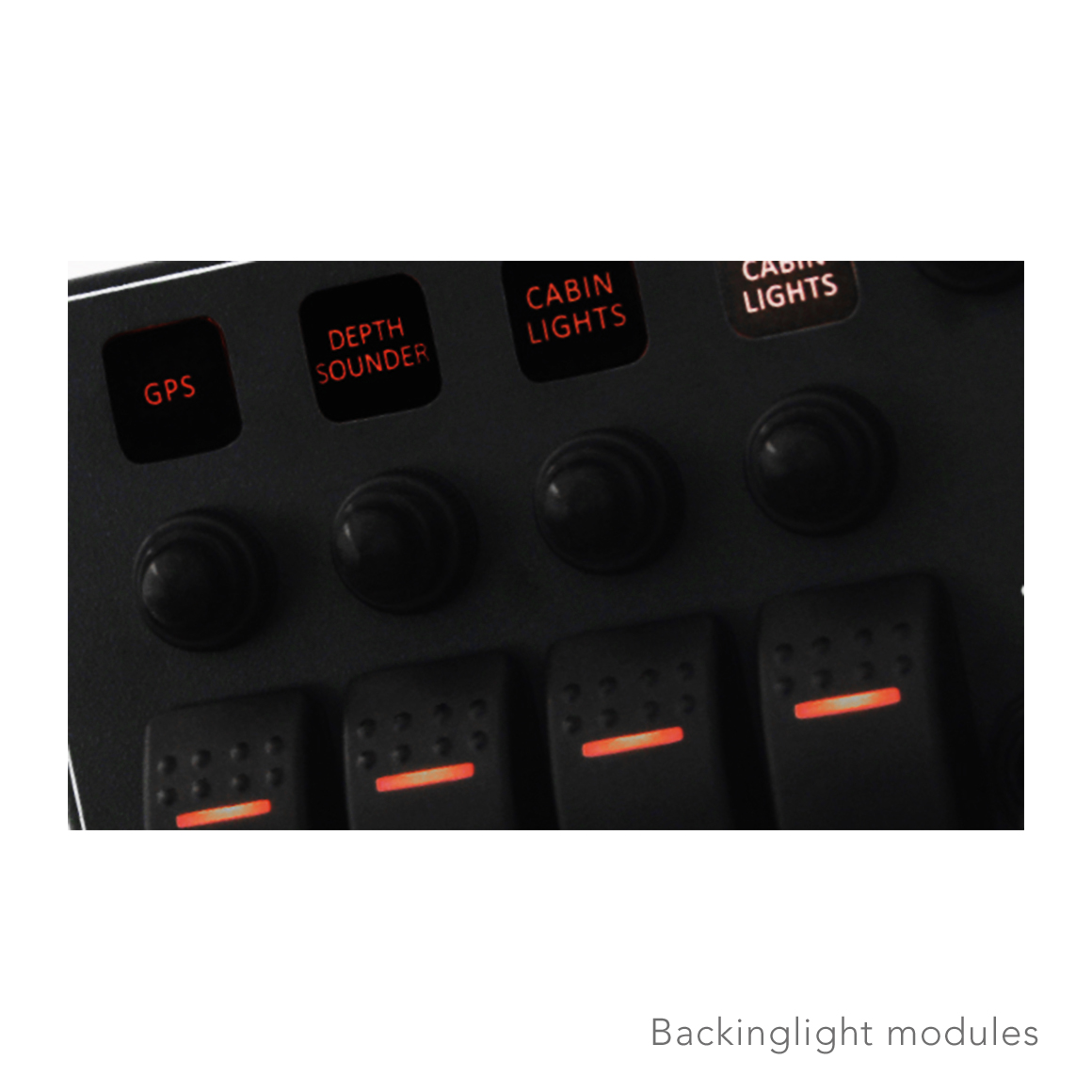

- Backlight modules for labels, allowing easy operation in darkness.
- Switch rating: DC 12V 20A / DC 24V 10A.
- Max. cumulative Amp: 45A, 45A x 2(8P).
- Illuminated (LED) rocker switches.
- Push-reset circuit breakers with rubber boots.
- Watertight mounting gasket is included.
- Square shaped stickers (30pcs) allow vertical or horizontal installation.

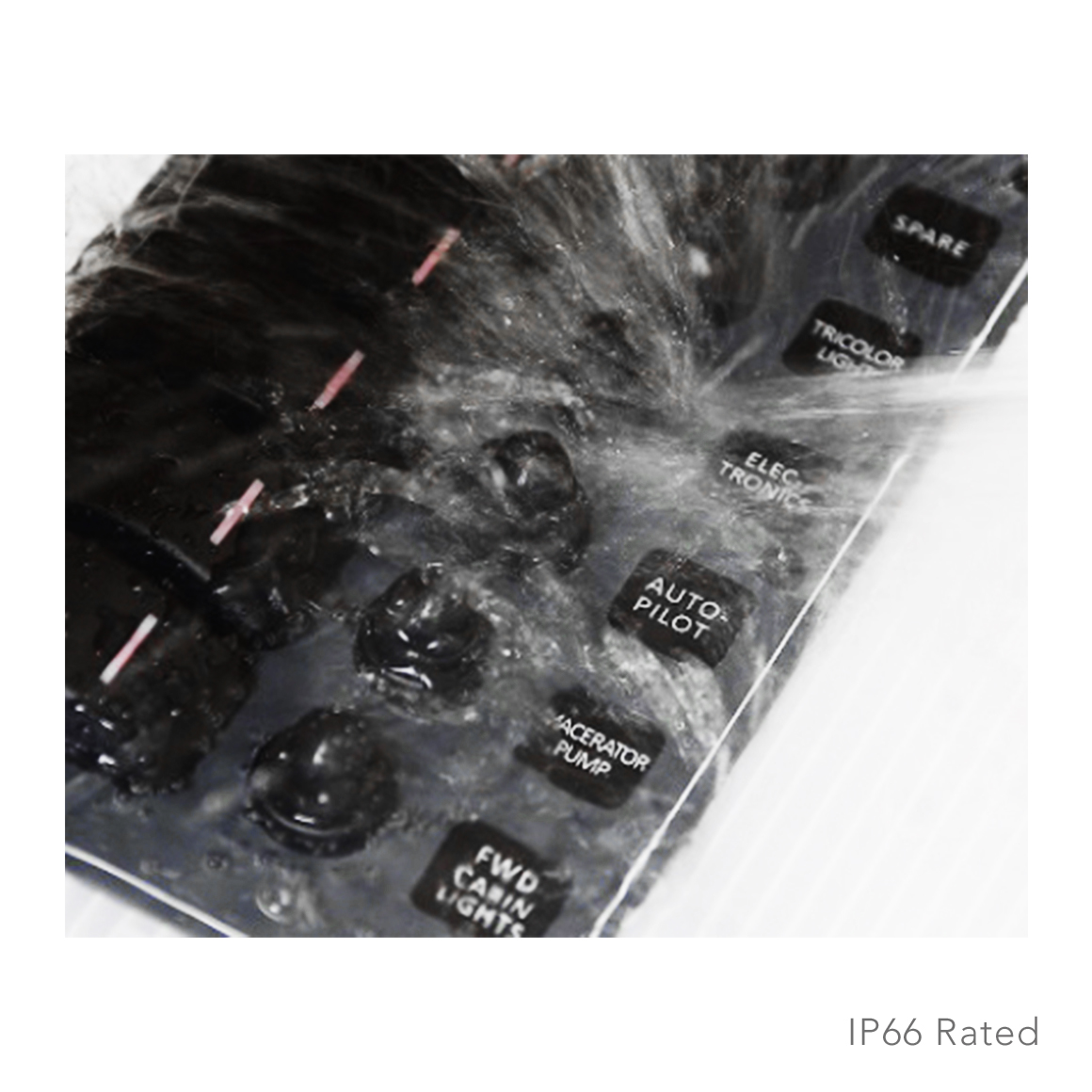

- IP66.
- Backlight modules for labels, allowing easy operation in darkness.
- Switch rating: DC 12V 20A / DC 24V 10A.
- Max. cumulative Amp: 45A, 45A x 2(8P).
- Illuminated (LED) rocker switches.
- Push-reset circuit breakers with rubber boots.
- Watertight mounting gasket is included.
- Square shaped stickers (30pcs) allow vertical or horizontal installation.
- IP66.
Qty
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
Positions
Size (W*H*D) mm
Cutout (W*L) mm
Note

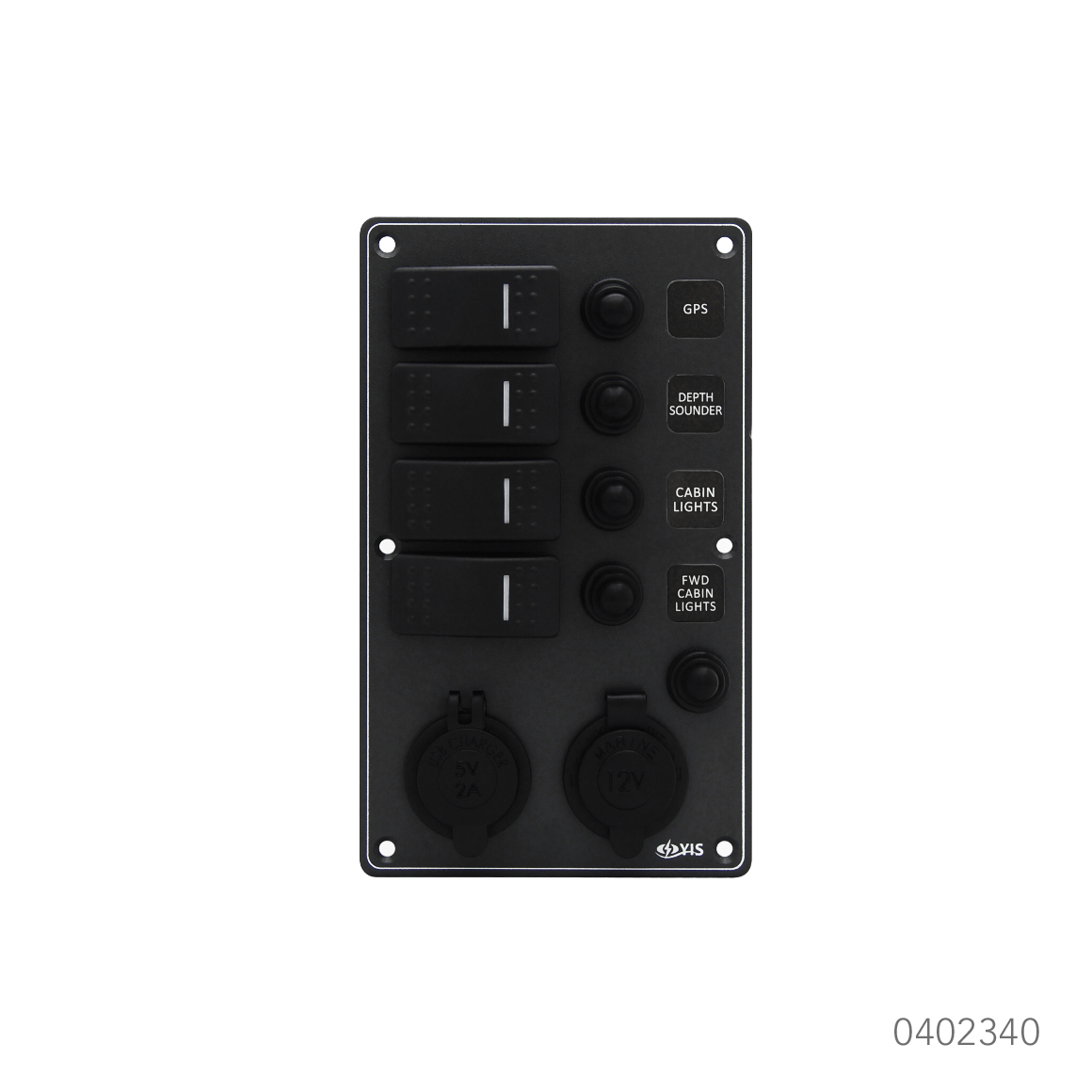

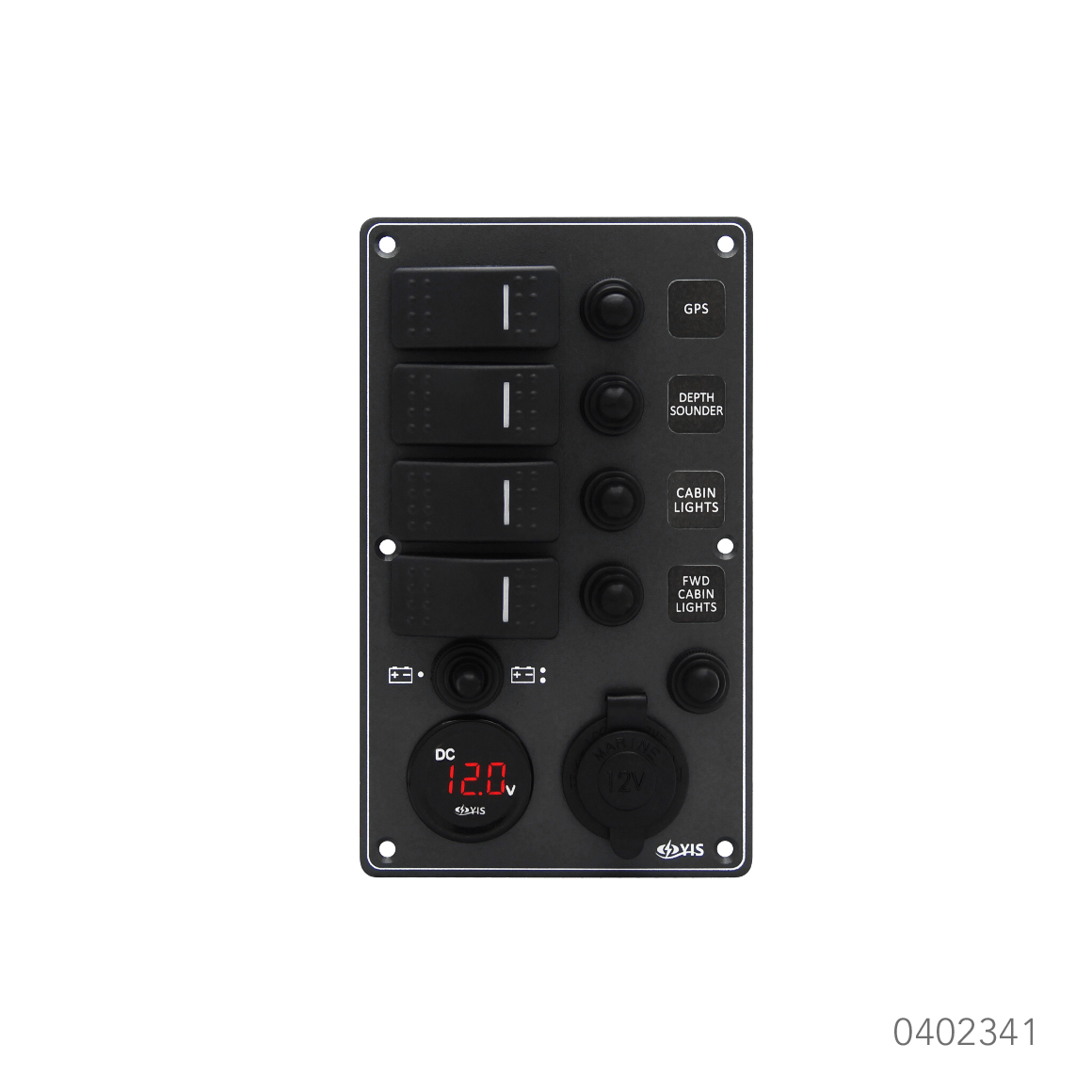

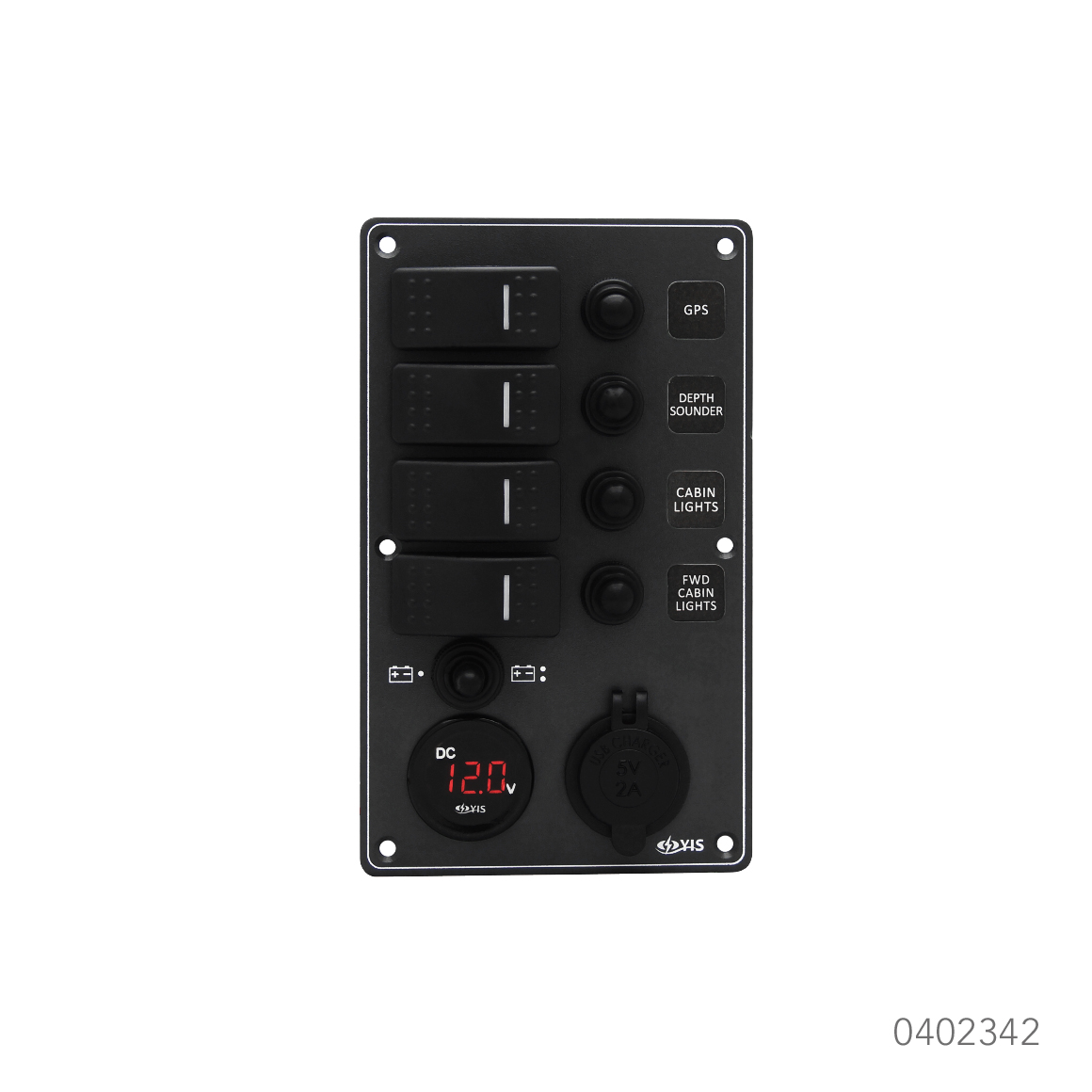

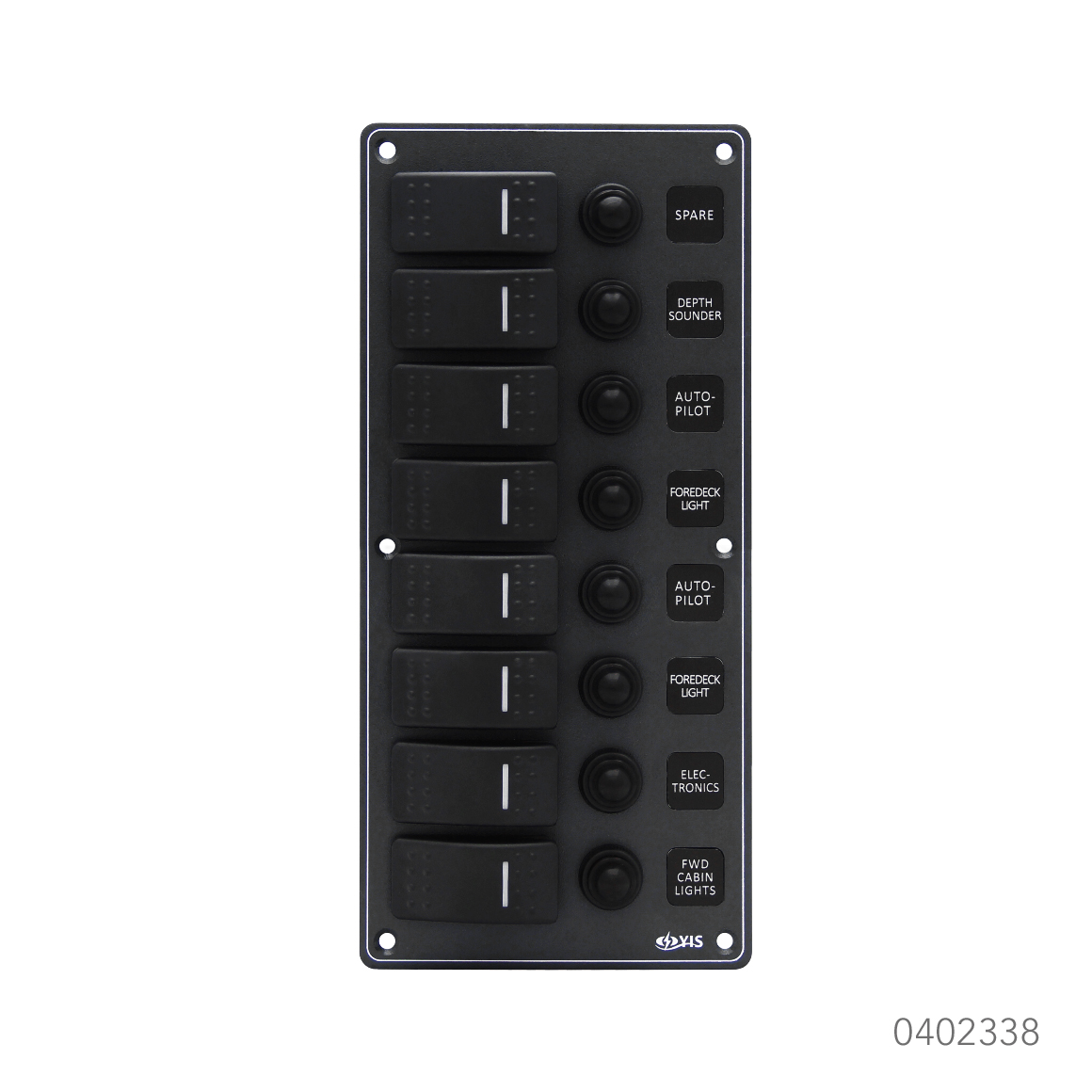

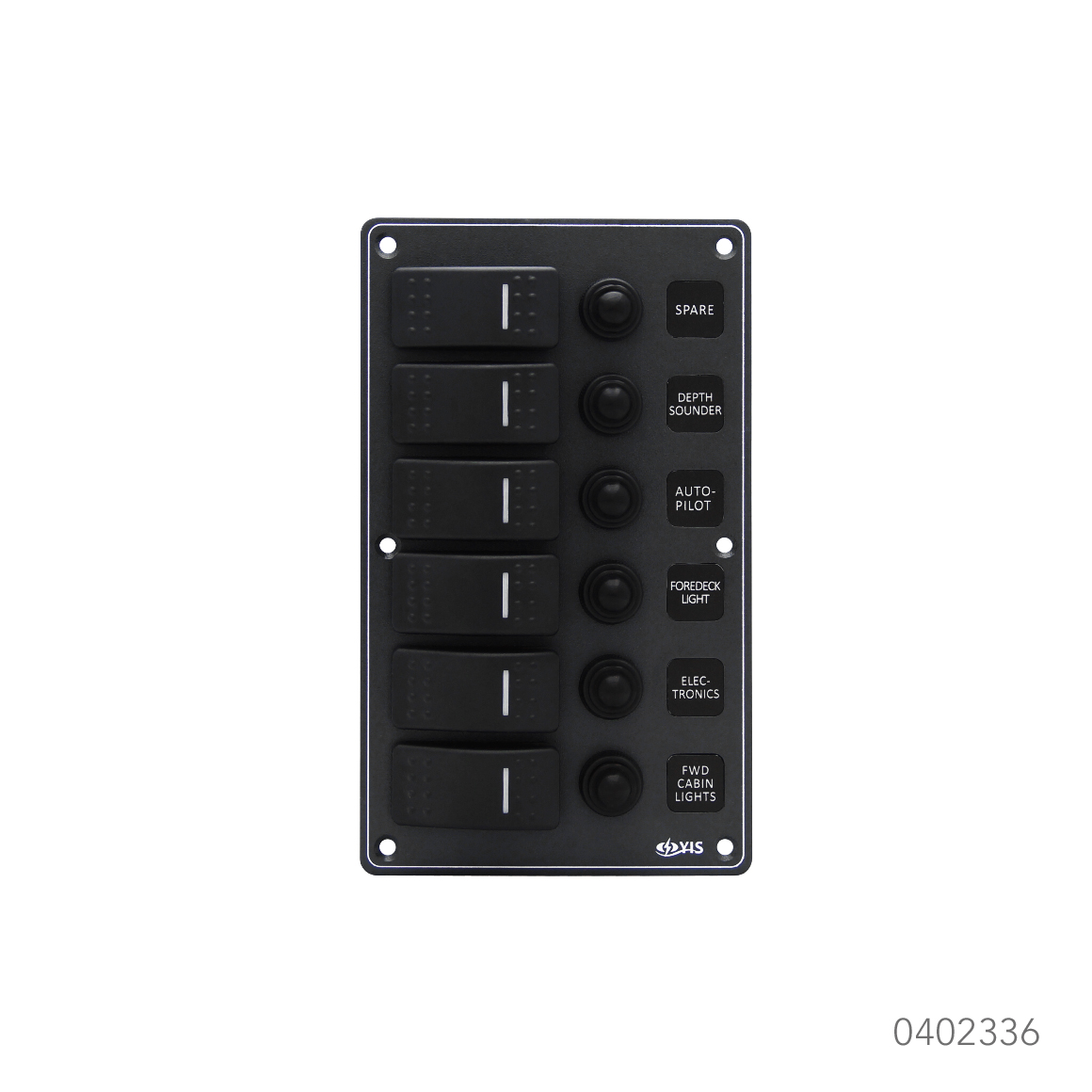

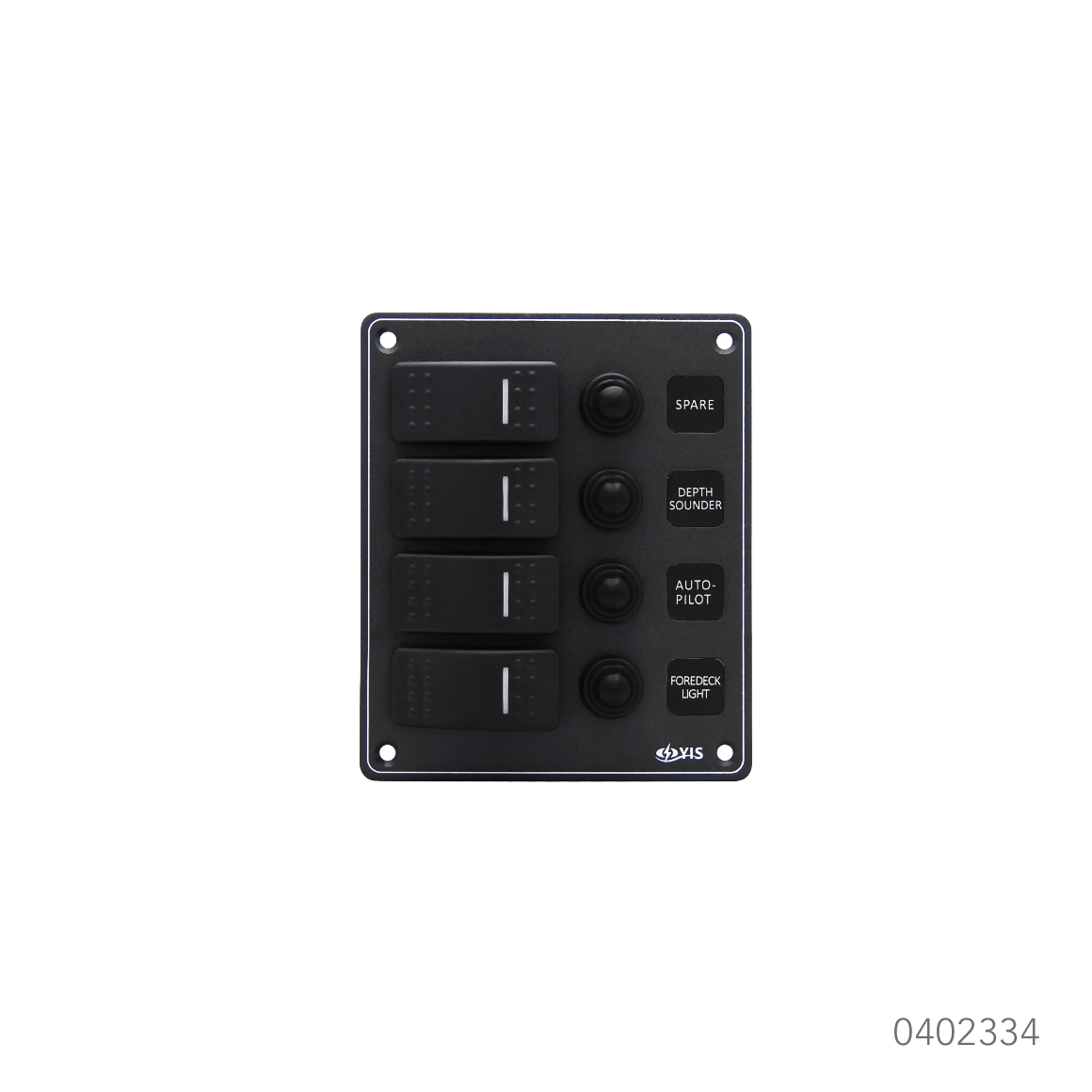

0402334 4 114*113*75 96*107 0402336 6 114*191*75 96*166 0402338 8 114*238*75 96*217 0402340 4 114*191*75 96*166 With USB Charger and Cig. Lighter Socket 0402341 4 114*191*75 96*166 With Battery Gauge and Cig. Lighter Socket 0402342 4 114*191*75 96*166 With Battery Gauge and USB Charger
