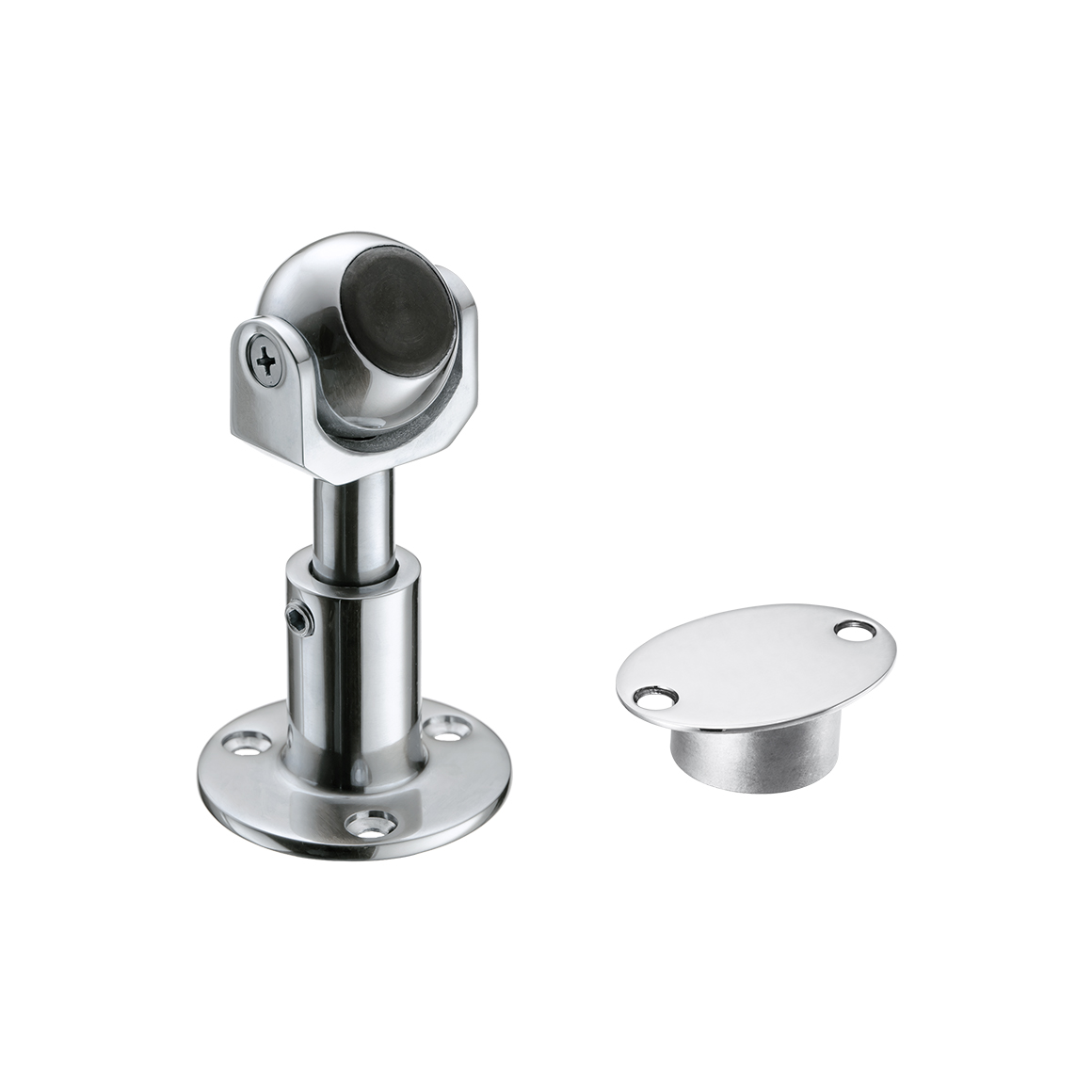

ADJUSTABLE MAG. DOOR HOLDER W/ FLUSH STRIKE
Stainless Steel 316
- Holder can be adjusted to any desired angle and height.
- To position the mag. ball, loctite the fasteners before screwing in.
- Magnets are seated in stainless steel 316 and sealed for protection
against the corrosive marine environment.
- Sold as set.
- Base screw size M5 or #10.
- Strike screw size M4 or #8.
- Holder can be adjusted to any desired angle and height.
- To position the mag. ball, loctite the fasteners before screwing in.
- Magnets are seated in stainless steel 316 and sealed for protection
against the corrosive marine environment.
- Sold as set.
- Base screw size M5 or #10.
- Strike screw size M4 or #8.

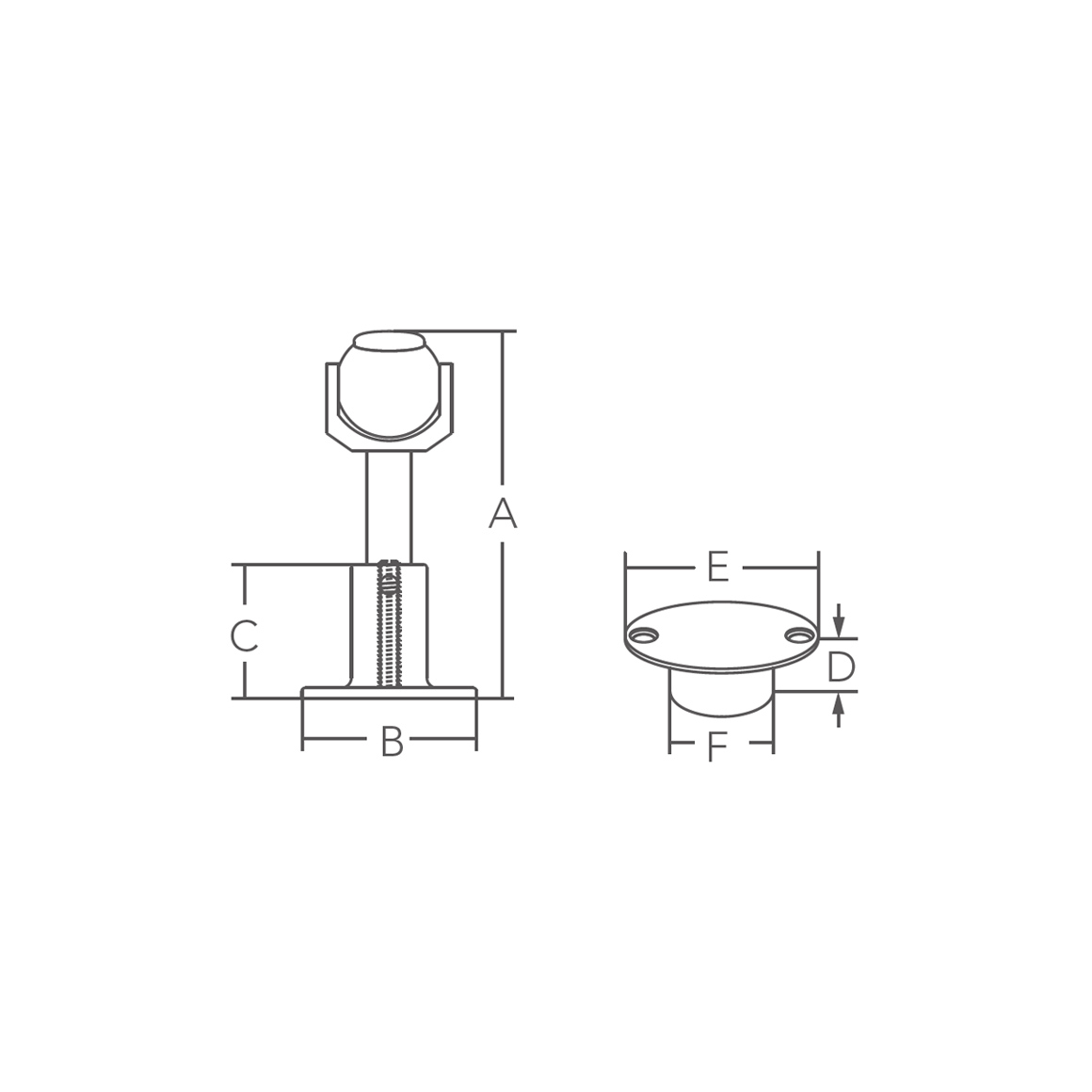

Qty
MOQ
-
Bulk No.
Mag. Size
A mm
B mm
C mm
D mm
E mm
F mm
Holding Power
Ball
Strike
9121383 20x20 Flush 30x15 89~119(3-1/2"~4-11/16") 51(2") 39(1-9/16") 19(3/4") 58(2-1/4") 31(1-1/4") 6.5 kg(14.3 lb) -
Bulk No.
Download
9121383 Drawing
