MTX - GRAND SERIES - SLAM LATCH 2"
Stainless Steel 316 Body & Plastic Slide
- Designed with a 2" installation hole, it’s the perfect direct replacement for
most common applications.
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates double springs and plastic slide to ensure quiet
operation, even underway.
- Adjustable slide accommodates minor adjustments following installation.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- 3mm spacer and #8 installation screws are included.
- Strike screw size M4 or #8 (not included).
- Designed with a 2" installation hole, it’s the perfect direct replacement for
most common applications.
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates double springs and plastic slide to ensure quiet
operation, even underway.
- Adjustable slide accommodates minor adjustments following installation.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- 3mm spacer and #8 installation screws are included.
- Strike screw size M4 or #8 (not included).
Qty
MOQ
Qty
MOQ
Qty
MOQ
Qty
MOQ
-
Bulk No.
Model
A mm
B mm
C mm
D mm
E mm

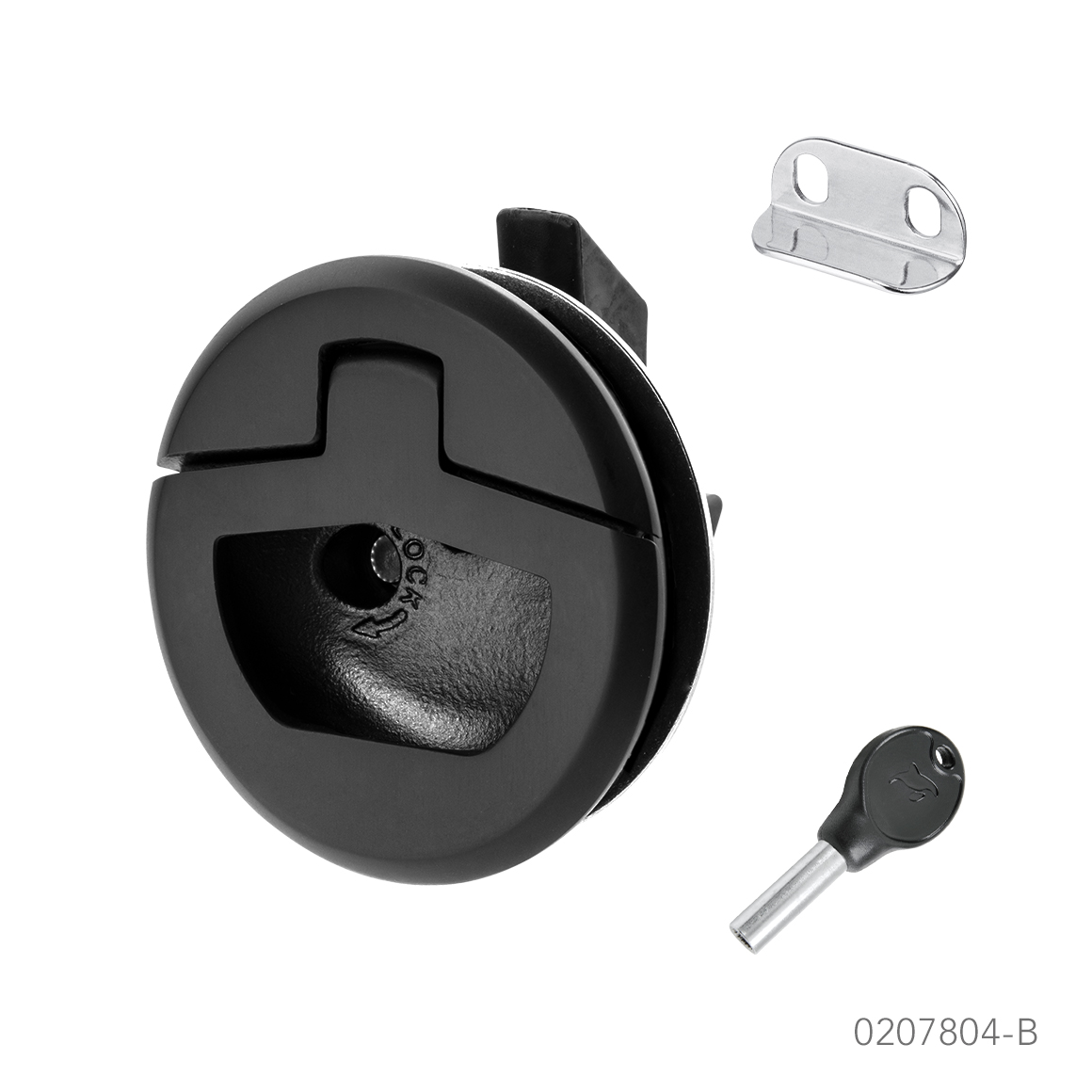

0207803 W/O Lock 6~22(1/4"~7/8") 22~28(7/8"~1-1/8") 63(2-1/2") 51(2") 42(1-5/8") or 48(1-7/8") 0207804 W/ Lock 6~22(1/4"~7/8") 22~28(7/8"~1-1/8") 63(2-1/2") 51(2") 42(1-5/8") or 48(1-7/8") SLIDE ADJUSTMENT INSTRUCTION
❶
❷
