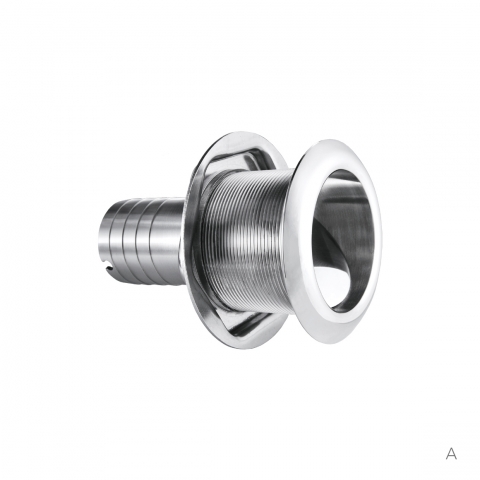

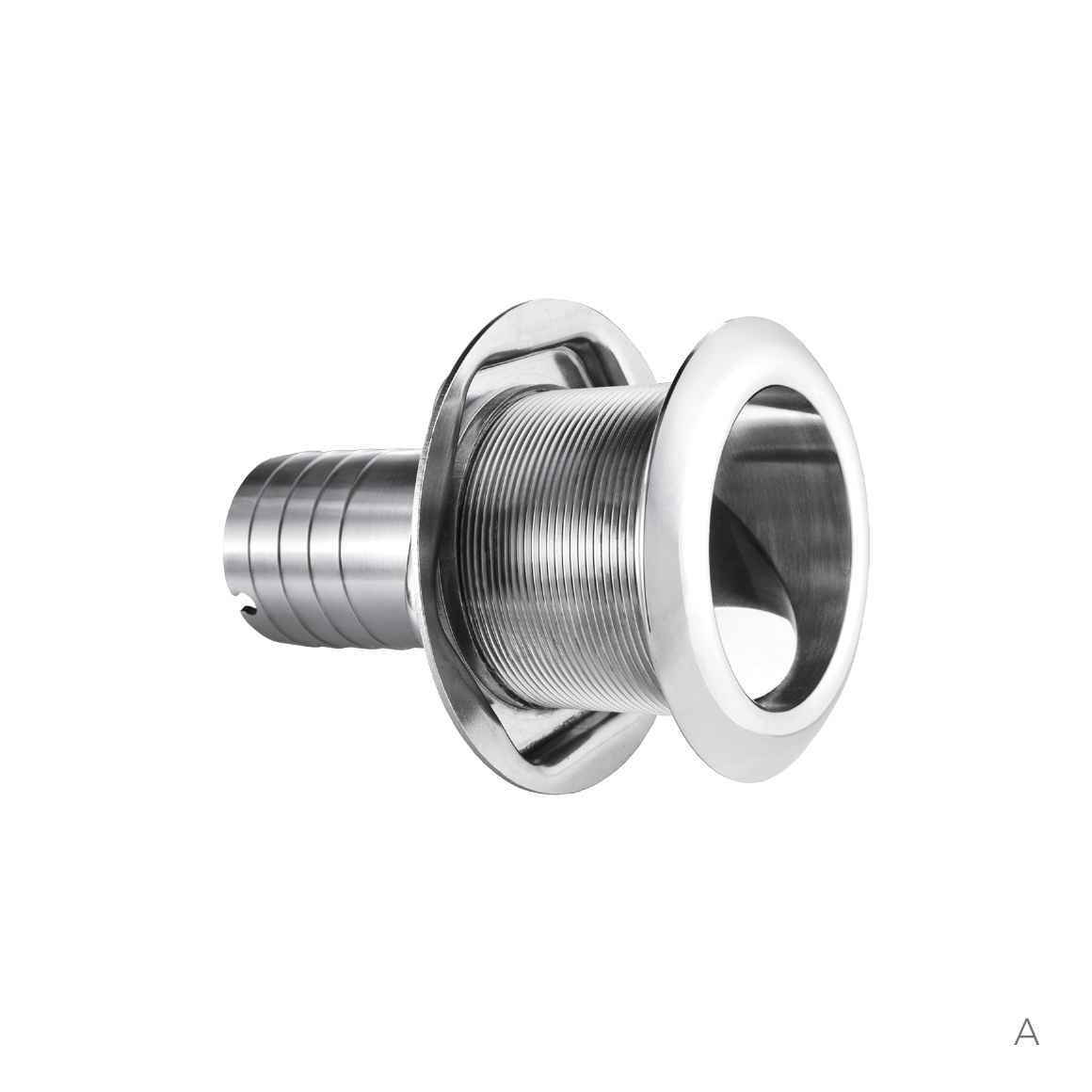

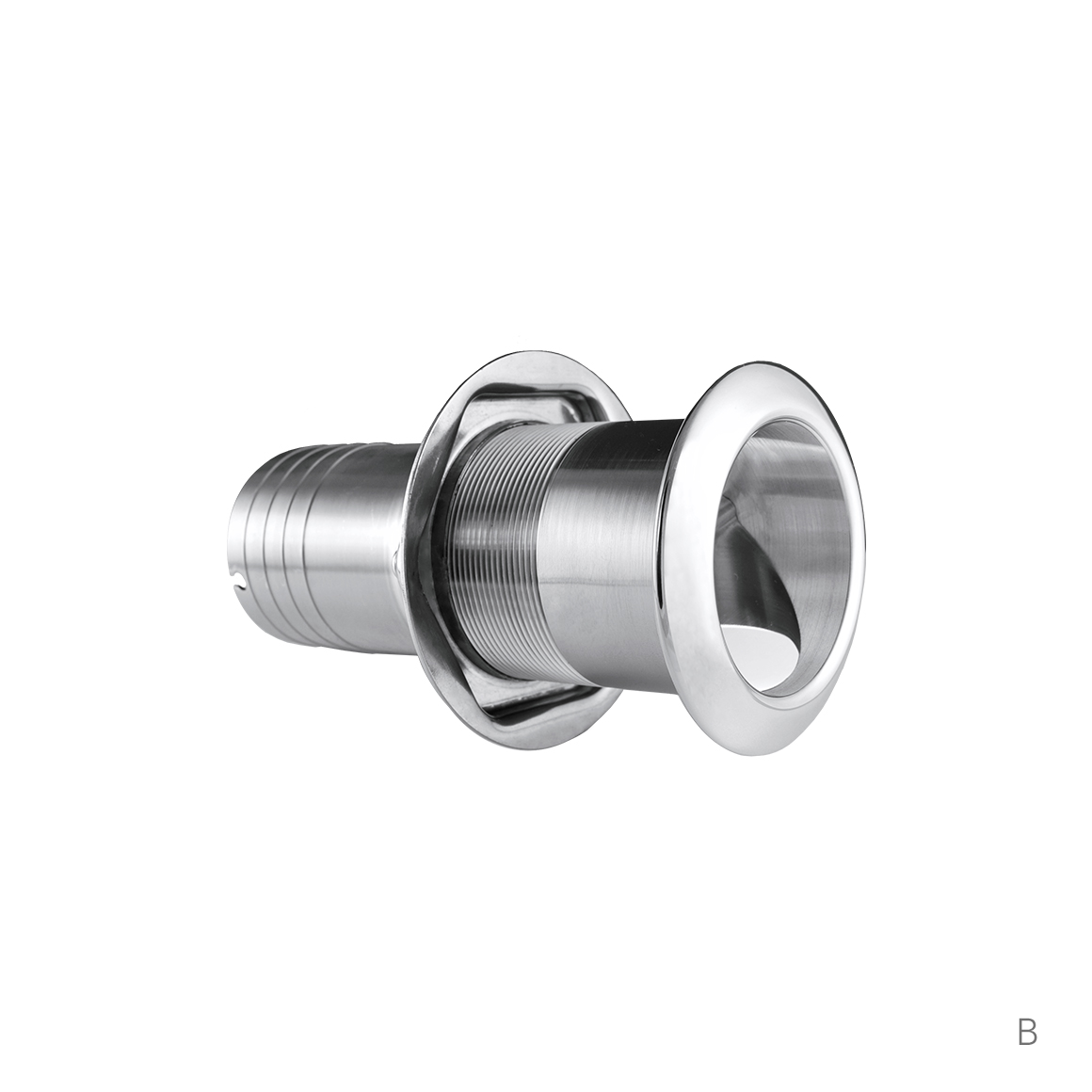

MEGA FLOW SCUPPER
Stainless Steel 316 & Stainless Steel 304 Nut
- Maximum water flow design.
- High density marine-grade stainless steel ensures strength and prevents crevice
corrosion.
- Permanent stainless steel flapper is weighed down to assure persistent closure.
- Integrated stainless steel 304 ground screw on nut.
- Watertight gasket is included.
- Maximum water flow design.
- High density marine-grade stainless steel ensures strength and prevents crevice
corrosion.
- Permanent stainless steel flapper is weighed down to assure persistent closure.
- Integrated stainless steel 304 ground screw on nut.
- Watertight gasket is included.
Qty
Qty
Qty
Qty
-
Bulk No.

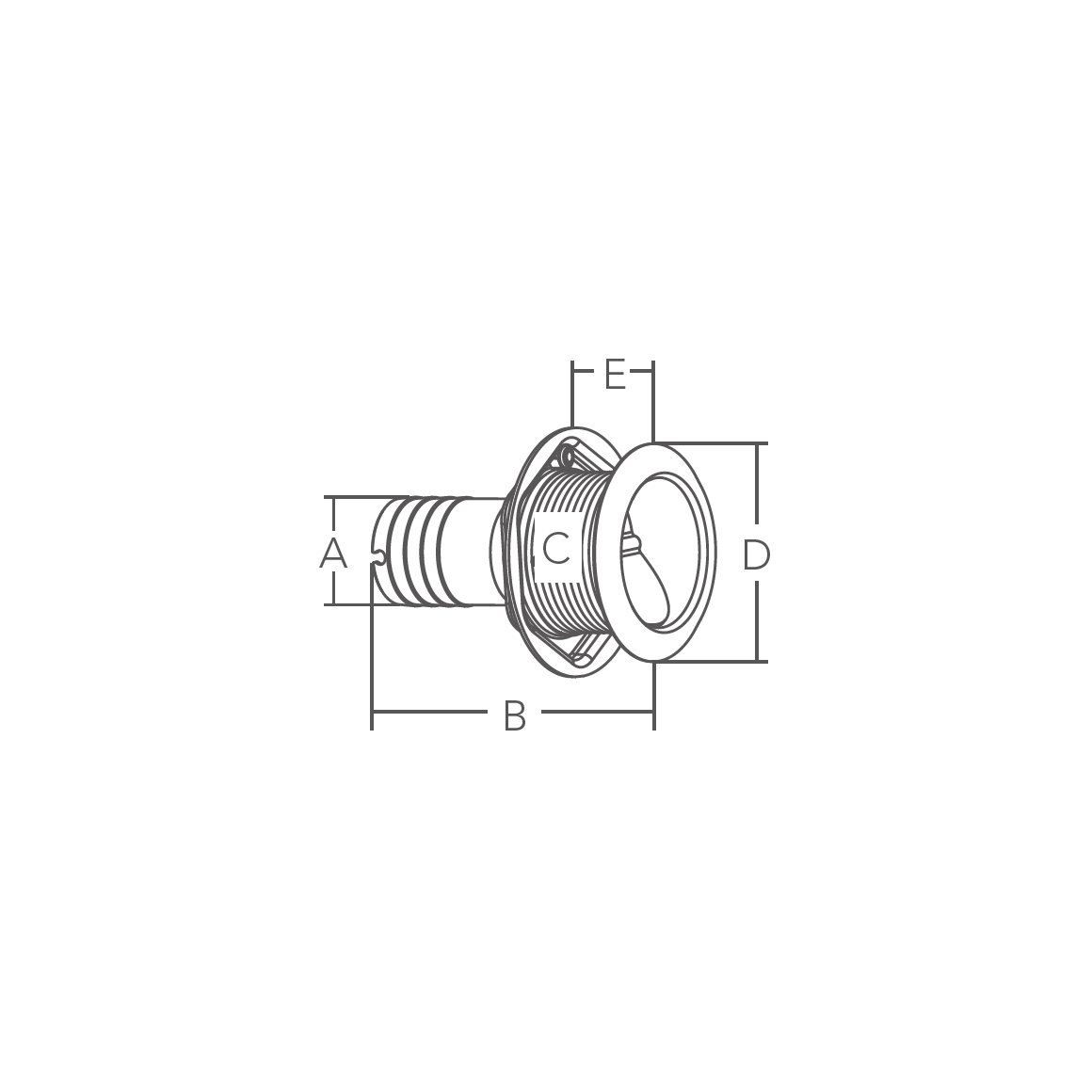

Model
A mm
B mm
C mm
D mm
E mm
0103785 A 38(1-1/2") 106(4-3/16") 57(2-1/4") 77(3") 5~32(3/16"~1-1/4") 0103786 B 38(1-1/2") 149(5-7/8") 57(2-1/4") 77(3") 32~76(1-1/4"~3") 0103787 A 51(2") 106(4-3/16") 57(2-1/4") 77(3") 5~32(3/16"~1-1/4") 0103788 B 51(2") 149(5-7/8") 57(2-1/4") 77(3") 32~76(1-1/4"~3")
